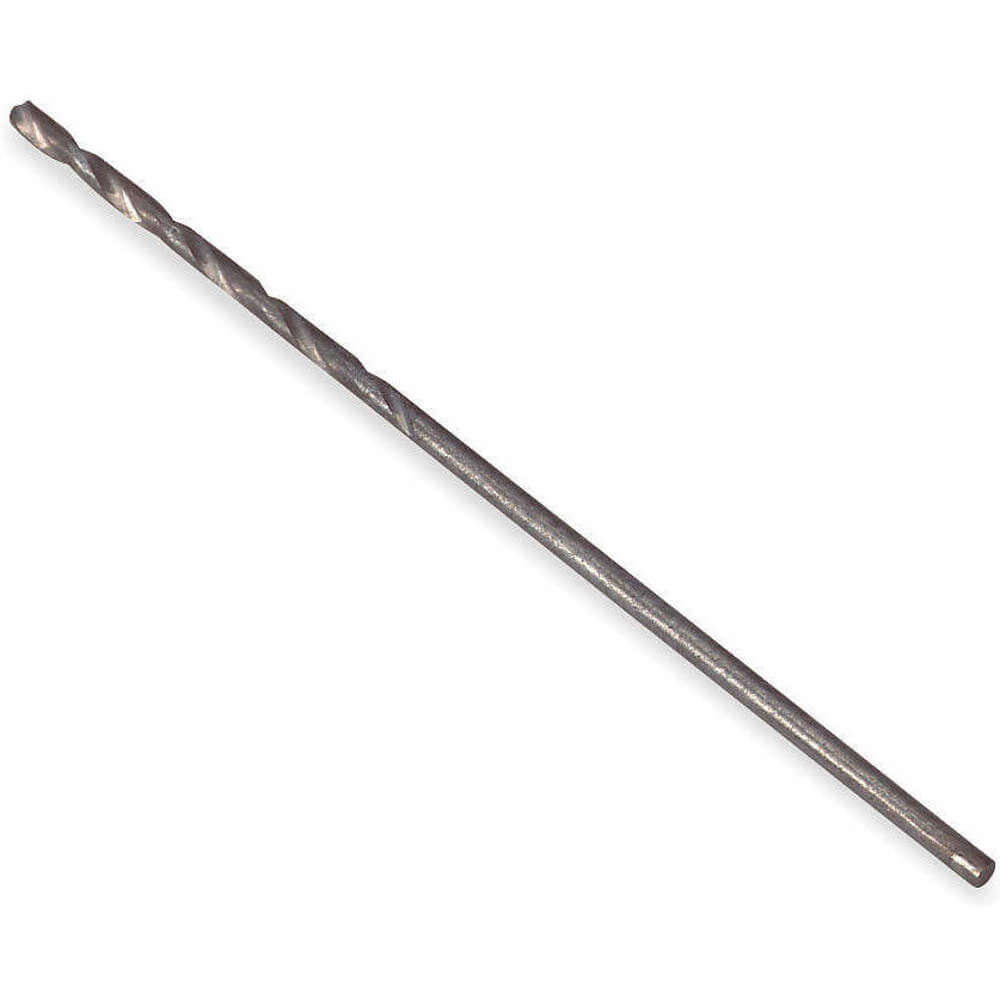

CHICAGO-LATROBE 57230 Jobber Bit 15/32in High Speed Steel
Item: AB2VRAModel: 57230Cross Ref: 1P492
7 In Stock
Ships within 2 days via
10.00% off
€22.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | Yes |
| Application | For Magnesium, Magnesium Alloys, Medium And Soft Steels And Sheet Metal |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4688 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 15/32" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1408" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 4 5/16" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150K |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 3 15/64" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 5 3/4" |
| Point Angle | 118° |
| Point Type | Split Point |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Series | 150K Series |
| Shank Dia. | 0.469" |
| Shank Length | 1 7/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.8 |
| Ship width (cm) | 10.16 |
| HS code | 8207504060 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Shank Dia. | Drill Bit Size | Drill Bit Point Angle | Overall Length | Flute Length | Max. Drilling Depth | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45604 | 0.0625 | 1/16" | 1/16" | 135° | 1 7/8" | 7/8" | 21/32" | 28° | €3.65 | |
| 45605 | 0.0781 | 5/64" | 5/64" | 135° | 2" | 1" | 3/4" | 28° | €3.65 | |
| 45606 | 0.093" | 0.094" | - | - | 2 1/4" | 1 1/4" | 15/16" | +21° to +34° | €3.72 | |
| 45607 | 0.1094 | 7/64" | 7/64" | 135° | 2 5/8" | 1 1/2" | 1 1/8" | 28° | €3.90 | |
| 45608 | 0.125 | 1/8" | 1/8" | 135° | 2 3/4" | 1 5/8" | 1 7/32" | 28° | €4.12 | |
| 45609 | 0.1406 | 9/64" | 9/64" | 135° | 2 7/8" | 1 3/4" | - | 28° | €4.45 | |
| 45610 | 0.1563 | 9/64" | 5/32" | 135° | 3 1/8" | 2" | - | 28° | €4.71 |
