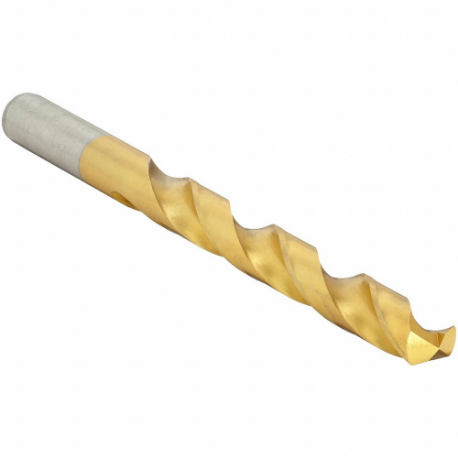

CHICAGO-LATROBE 54071 Jobber Length Drill Bit, 27/64 Inch Size Drill Bit Size, 3-15/16 Inch Flute Length, Cobalt | CQ8VAL 2VRZ1

CHICAGO-LATROBE 54071 Jobber Length Drill Bit, 27/64 Inch Size Size, 3-15/16 Inch Flute Length, Cobalt

Item: CQ8VALModel: 54071Cross Ref: 2VRZ1
7 In Stock

Ships within 2 days via

€57.16
10.00% off
€51.45 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill Yes
Application For Alloy, Stainless And Tool Steels And Titanium
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.4219
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material Cobalt
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 27/64"
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0874"
Finish Tin
Finish - Machining Tin
Flute Length 3 15/16"
Flute Type Spiral
Grade Heavy Duty
Helix Angle +21° to +34°
Left/right Hand Right
Material Cobalt
Material - Machining Cobalt
Material Grade - Machining Grade M42
Max. Drilling Depth 2.938"
Maximum Drilling Depth 2 15/16"
Mfr. Series 55TN Series
No. Of Pieces 1
Number Of Flutes 2
Overall Length 5 3/8"
Point Angle 135°
Point Type Split Point
Primary Material Application Stainless Steel, Steel
Primary Material Application Iso Code M, P
Shank Dia. 0.422"
Shank Diameter 27/64"
Shank Length 1 7/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.422"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)3.81
Ship length (cm)14.9
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelShank Dia.Max. Drilling DepthOverall LengthFlute LengthDecimal EquivalentDrill Bit SizeShank LengthGradePrice
CHICAGO-LATROBE 46493 Jobber Drill Bit, 11.20 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8TWT 6WTY6 4649311.2 mm2.766"142 mm94 mm0.440911.2 mm48 mm-€46.09
CHICAGO-LATROBE 47751 Jobber Length Drill Bit, #17 Drill Bit Size, 3-3/8 Inch Overall Length | CQ8TXQ 2THU7 477510.172"1 5/8"3 3/8"2 3/16"0.173#171 3/16"Heavy Duty€8.26
CHICAGO-LATROBE 47736 Jobber Length Drill Bit, #2 Drill Bit Size, 3-7/8 Inch Overall Length | CQ8TYA 2THT1 477360.219"1 31/32"3 7/8"2 5/8"0.221#21 1/4"Heavy Duty€11.16
CHICAGO-LATROBE 47756 Jobber Length Drill Bit, #22 Drill Bit Size, 3-1/8 Inch Overall Length | CQ8TYM 2THV3 477560.156"1 1/2"3 1/8"2"0.157#221 1/8"Heavy Duty€7.40
CHICAGO-LATROBE 47759 Jobber Length Drill Bit, #25 Drill Bit Size, 3 Inch Overall Length | CQ8TYV 2THV6 477590.141"1 13/32"3"1 7/8"0.1495#251 1/8"Heavy Duty€6.74
CHICAGO-LATROBE 47761 Jobber Length Drill Bit, #27 Drill Bit Size, 3 Inch Overall Length | CQ8TYZ 2THV8 477610.141"1.406"3"1 7/8"0.144-1 1/8"Heavy Duty€6.74
CHICAGO-LATROBE 47764 Jobber Length Drill Bit, #30 Drill Bit Size, 2-3/4 Inch Overall Length | CQ8TZL 2THW2 477641/8"1 7/32"2 3/4"1 5/8"0.1285#301 1/8"Heavy Duty€5.77
