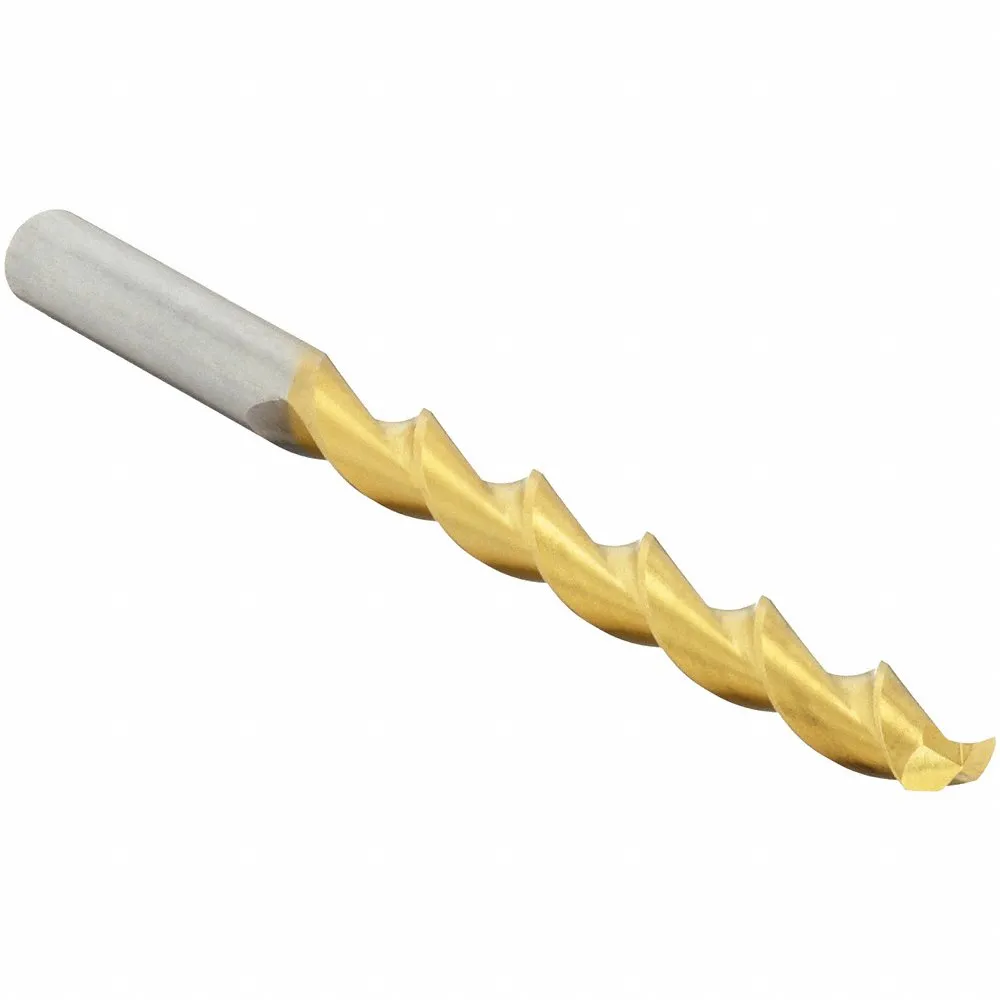

CHICAGO-LATROBE 53972 Jobber Length Drill Bit, #43 Size, 1-1/4 Inch Flute Length, 2-1/4 Inch Length
Item: CX7HFLModel: 53972Cross Ref: 434L97
7 In Stock
Ships within 2 days via
10.00% off
€8.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-Hole Drilling |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.089 |
| Depthdia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #43 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0184" |
| Finish - Machining | Tin |
| Flute Length | 1 1/4" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +35° to +45° |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 15/16" |
| Measurement System | Wire |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 2 1/4" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Series | 150DH-TN Series |
| Shank Length | 1" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
