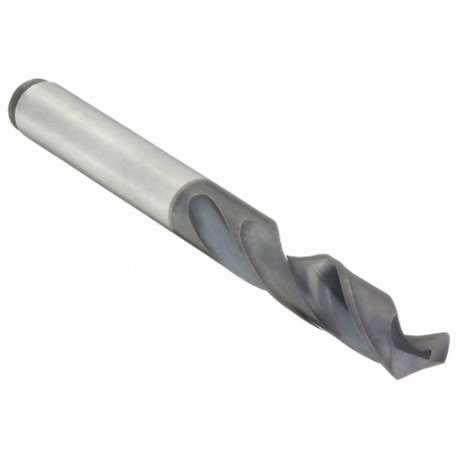

CHICAGO-LATROBE 52825 Screw Machine Drill Bit, 25/64 Inch Size, 1 7/8 Inch Flute Length, Split Point
Item: CQ8VKAModel: 52825Cross Ref: 439K42
7 In Stock
Ships within 2 days via
10.00% off
€46.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Drilling Alloy Steel, Carbon Steel, Cast Iron, Tool Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3906 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 25/64" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0809" |
| Finish | TiAlN |
| Finish - Machining | TiAlN |
| Flute Length | 1 7/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| No. Of Pieces | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 1/4" |
| Primary Material Application | Cast Iron, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 0.391" |
| Shank Diameter | 25/64" |
| Shank Length | 1 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Shank Dia. | Drill Bit Size | Flute Length | Overall Length | Finish | Shank Length | Drill Point Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50857 | 0.221 | 0.219" | #2 | 1 5/16" | 2 7/16" | Straw, Bronze | 1 1/8" | 0.0458" | €11.12 | |
 |
50859 | 0.209 | 0.203" | #4 | 1 1/4" | 2 3/8" | Straw, Bronze | 1 1/8" | 0.0433" | €10.31 | |
 |
51819 | 0.3438 | 0.344" | 11/32" | 1 11/16" | 3" | Tin | 1 5/16" | 0.0712" | €32.94 | |
 |
50835 | 0.257 | 1/4" | F | 1 7/16" | 2 5/8" | Straw, Bronze | 1 3/16" | - | €12.93 | |
|
50858 | 0.213 | 0.219" | #3 | 1 1/4" | 2 3/8" | Straw, Bronze | 1 1/8" | 0.0441" | €11.12 | |
|
50850 | 0.368 | 3/8" | U | 1 13/16" | 3 1/8" | Straw, Bronze | 1 5/16" | - | €28.27 | |
|
50915 | 0.04 | 0.047" | #60 | 1/2" | 1 3/8" | Straw, Bronze | 7/8" | 0.008" | €5.45 |
