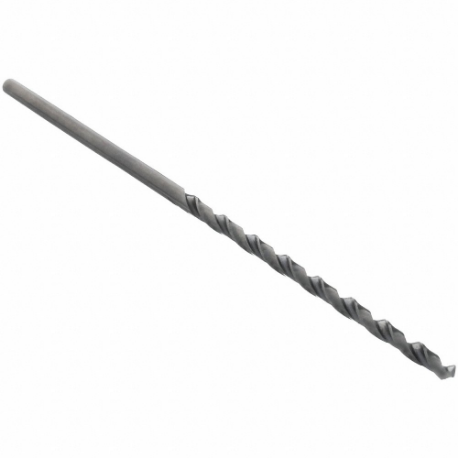

CHICAGO-LATROBE 49702 Taper Length Drill Bit, 1/32 Inch Drill Bit Size, 2 1/4 Inch Flute Length
Item: CQ8VNCModel: 49702Cross Ref: 438X57
7 In Stock
Ships within 2 days via
5.00% off
€10.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Application | For Metalworking |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0312 |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.009" |
| Finish | Black Oxide |
| Flute Length | 2 1/4" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| List Number | 120 |
| Material | High Speed Steel |
| Max. Drilling Depth | 2 1/4" |
| No. Of Flutes | 2 |
| Overall Length | 4 1/4" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 0.094" |
| Shank Length | 2" |
| Shank Type | Straight |
| Size | 0.031" |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Shank Length | Flute Length | Primary Material Application Iso Code | Max. Drilling Depth | Shank Dia. | Drill Bit Size | Drill Dia. Tolerance | Material-machining | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50305 | 2 3/8" | 3 3/8" | K, P | 3 3/8" | 11/64" | #15 | -0" to +0.0007" | High Speed Steel | €21.81 | |
| 50306 | 2 3/8" | 3 3/8" | K, P | 3 3/8" | 0.172" | - | - | - | €22.05 | |
| 50309 | 2 3/8" | 3 3/8" | K, P | 3 3/8" | 5/32" | #19 | -0" to +0.0007" | High Speed Steel | €21.59 | |
| 68861 | 1 5/8" | 4 1/8" | N, P | 4 1/8" | 0.156" | - | - | - | €28.27 | |
| 50312 | 2 3/8" | 3 3/8" | K, P | 3 3/8" | 5/32" | #22 | -0" to +0.0007" | High Speed Steel | €22.27 | |
| 50314 | 2 3/8" | 3" | K, P | 3" | 9/64" | #24 | -0" to +0.0007" | High Speed Steel | €21.42 | |
| 68866 | 1 5/8" | 3 3/4" | N, P | 3 3/4" | 9/64" | #26 | -0" to +0.0007" | High Speed Steel | €25.08 |
