CHICAGO-LATROBE 47718 Jobber Length Drill Bit, Drill Bit Size 9/32 Inch, Drill Bit Point Angle 135 Deg., Cobalt
Item: CH6JYZModel: 47718Cross Ref: 2THP3
7 In Stock
Ships within 2 days via
10.00% off
€12.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | For Alloy, Stainless And Tool Steels And Titanium |
| Bit Style | Spiral |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.281" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Size | 9/32" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0582" |
| Drill Point Length | 0.058" |
| Finish | Cobalt |
| Flute Length | 2.938" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| Max. Drilling Depth | 1 1/8" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 4 1/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 0.266" |
| Shank Length | 1.312" |
| Shank Type | Straight |
| Sheeter Drill | No |
| Size | 0.281" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Thread Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Max. Drilling Depth | Shank Dia. | Decimal Equivalent | Flute Length | Overall Length | Drill Bit Size | Helix Angle | Aircraft Drill | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 46774 | 2 1/16" | 0.234" | 0.246 | 2 3/4" | 4" | D | 21° to 34° | Yes | €12.93 | |
| 46778 | 1.062" | 0.266" | 0.266 | 2 7/8" | 4 1/8" | H | 21° to 34° | Yes | €14.13 | |

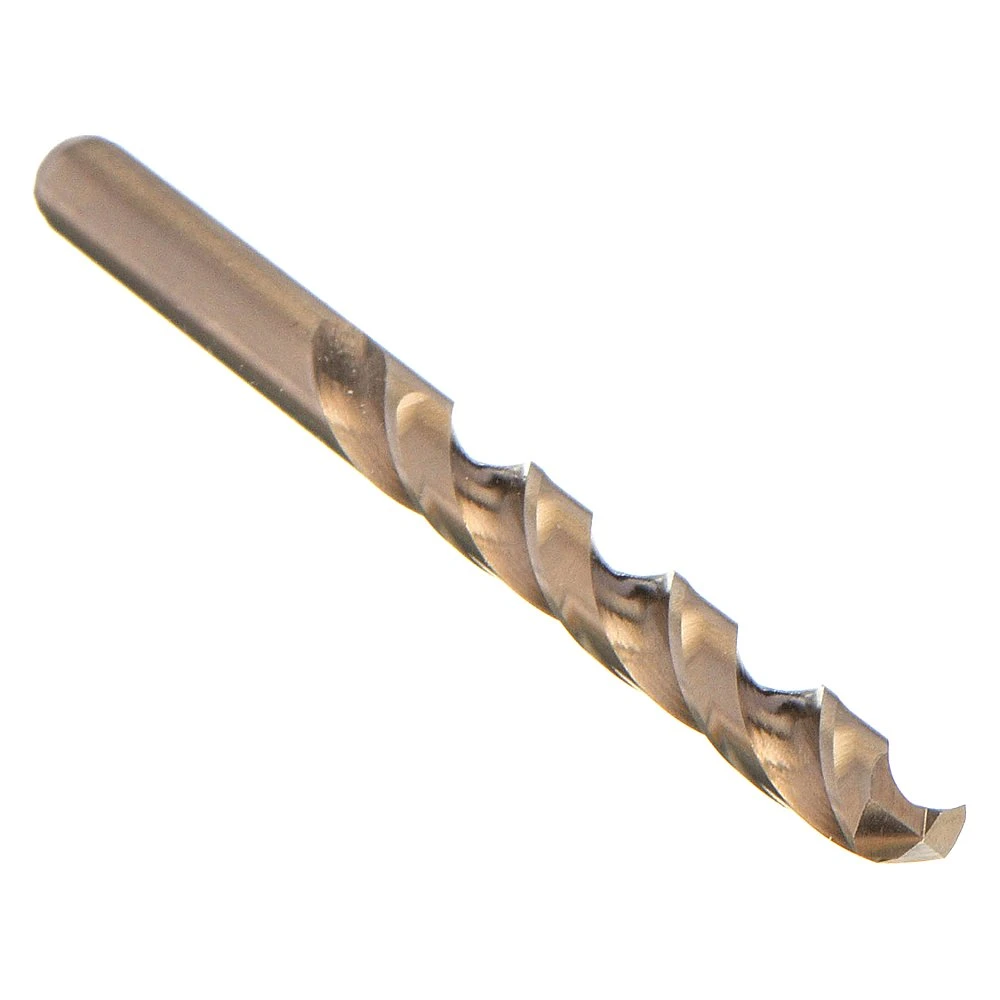

| 46793 | 1 1/2" | 3/8" | 0.386 | 3 3/4" | 5 1/8" | W | 21° to 34° | Yes | €31.21 | |
| 47711 | 1 19/32" | 0.172" | 0.1719 | 2 1/8" | 3 1/4" | 11/64" | 21° to 34° | No | €7.16 | |
| 47712 | 1 47/64" | 0.188" | 0.188" | 2.312" | - | - | +21° to +34° | No | €7.96 | |
| 47716 | 1" | 1/4" | 1/4" | 2 3/4" | 4" | 1/4" | 21° to 34° | No | €10.90 | |
| 47729 | 1.812" | 0.453" | - | - | 5 5/8" | 29/64" | 21° to 34° | No | €35.28 |
