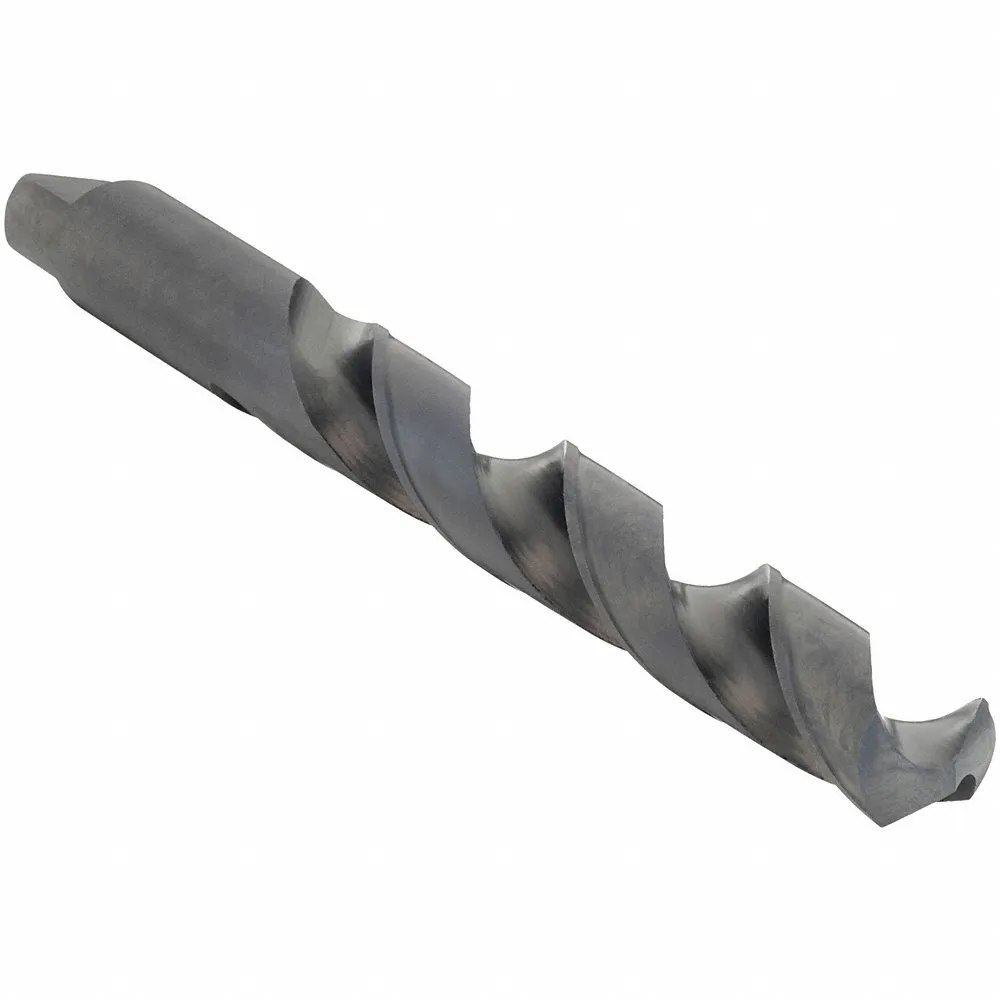

CHICAGO-LATROBE 47565 Jobber Length Drill Bit, V Size, 3-5/8 Inch Flute Length, 5 Inch Length
Get it by Friday, Aug 21
€10.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.377 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | V |
| Drill Dia. Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish-machining | Black Oxide |
| Flute Length | 3 5/8" |
| Flute Type | Spiral |
| Helix Angle | 21° to 34° |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 2 23/32" |
| Measurement System | Letter |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| Overall Length | 5" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 250AN Series |
| Shank Length | 1 3/8" |
| Shank Type-machining | Tang Shank |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 12.7 |
| Country of Origin | US |
