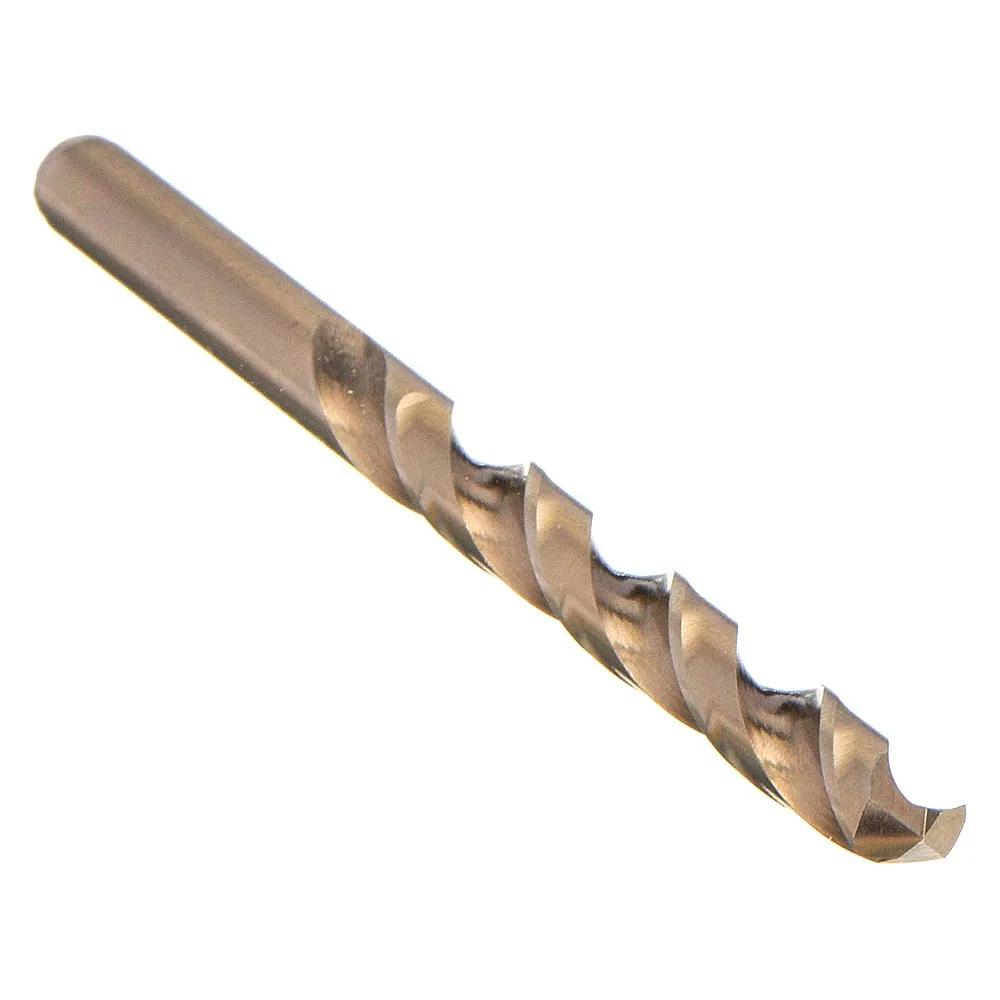

CHICAGO-LATROBE 46796 Jobber Length Drill Bit, Z Size, 3-7/8 Inch Flute Length, 5-1/4 Inch Length
Item: CX7FGEModel: 46796Cross Ref: 4CNN6
7 In Stock
Ships within 2 days via
5.00% off
€31.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.413 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | Z |
| Drill Dia. Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish-machining | Straw, Bronze |
| Flute Length | 3 7/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| List Number | 550 |
| Material | Cobalt |
| Material Grade-machining | Grade M42 |
| Material-machining | Cobalt |
| Max. Drilling Depth | 2 29/32" |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 5 1/4" |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Series | 550 Series |
| Shank Dia. | 13/32" |
| Shank Length | 1 3/8" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
