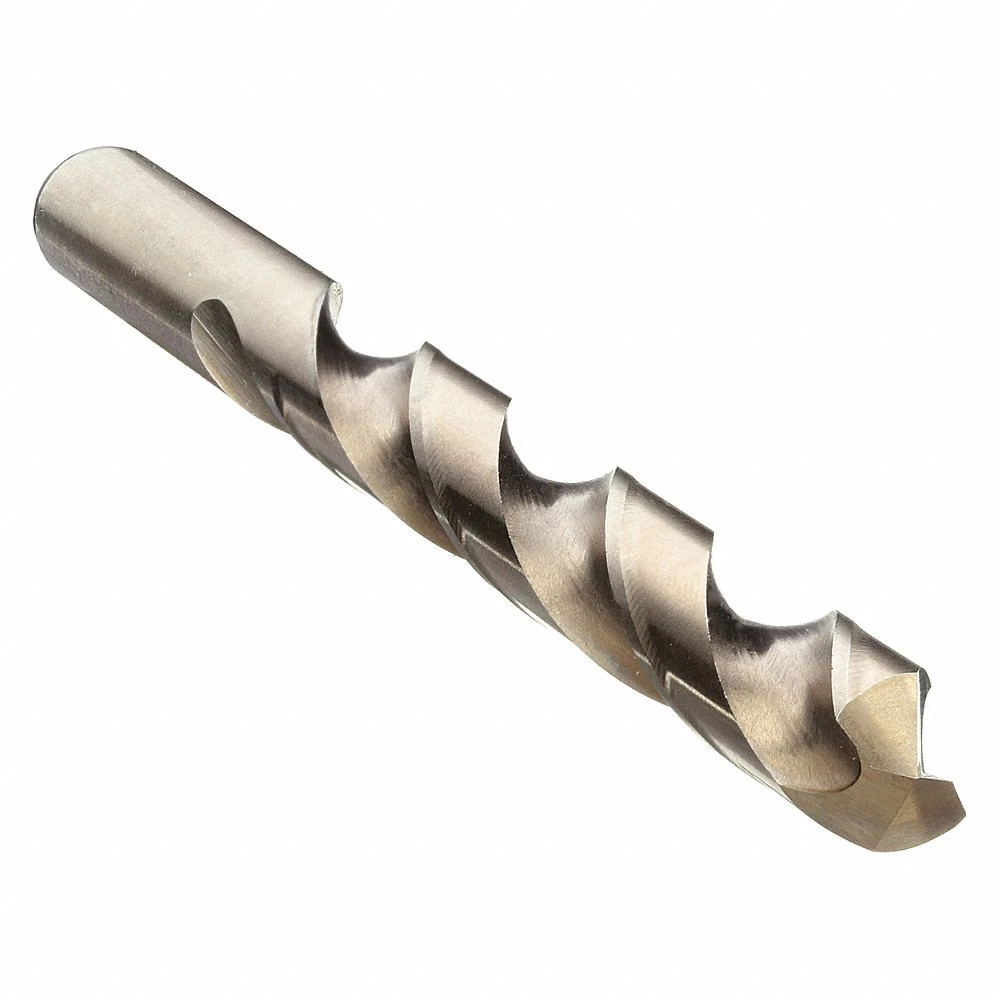

CHICAGO-LATROBE 46632 Jobber Bit 1/2 Inch Cobalt Steel
Item: AA9VPAModel: 46632Cross Ref: 1G913
7 In Stock
Ships within 2 days via
10.00% off
€45.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | Yes |
| Application | For Alloy, Stainless And Tool Steels And Titanium |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1/2" |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/2" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1036" |
| Finish | Straw |
| Finish - Machining | Straw, Bronze |
| Flute Length | 4 1/2" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 550 |
| Material | Cobalt Steel |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 3 3/8" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Products By Industry | Fabricated Metals |
| Series | 550 Series |
| Shank Dia. | 1/2" |
| Shank Length | 1 1/2" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 16.8 |
| Ship width (cm) | 10.16 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Flute Length | Drill Bit Size | Overall Length | Shank Dia. | Max. Drilling Depth | Shank Length | Drill Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 46604 | 0.0625 | 7/8" | 1/16" | 1 7/8" | 0.062" | 21/32" | 1" | -0" to +0.0005" | €4.86 | |
| 46605 | 0.0781 | 1" | 5/64" | 2" | 0.078" | 3/4" | 1" | -0" to +0.0005" | €4.78 | |
| 46606 | 0.0938 | 1 1/4" | 3/32" | 2 1/4" | 0.094" | 15/16" | 1" | -0" to +0.0005" | €5.15 | |
| 46607 | 0.1094 | 1 1/2" | 7/64" | 2 5/8" | - | 1 1/8" | 1 1/8" | -0" to +0.0005" | €5.53 | |
| 46608 | 0.125 | 1 5/8" | 1/8" | 2 3/4" | 1/8" | 1 7/32" | 1 1/8" | -0" to +0.0005" | €5.95 | |
| 46609 | 0.1406 | 1 3/4" | 9/64" | 2 7/8" | 0.141" | - | 1 1/8" | -0" to +0.0007" | €6.49 | |
| 46610 | 0.1563 | 2" | 5/32" | 3 1/8" | 0.156" | - | 1 1/8" | -0" to +0.0007" | €7.19 |
