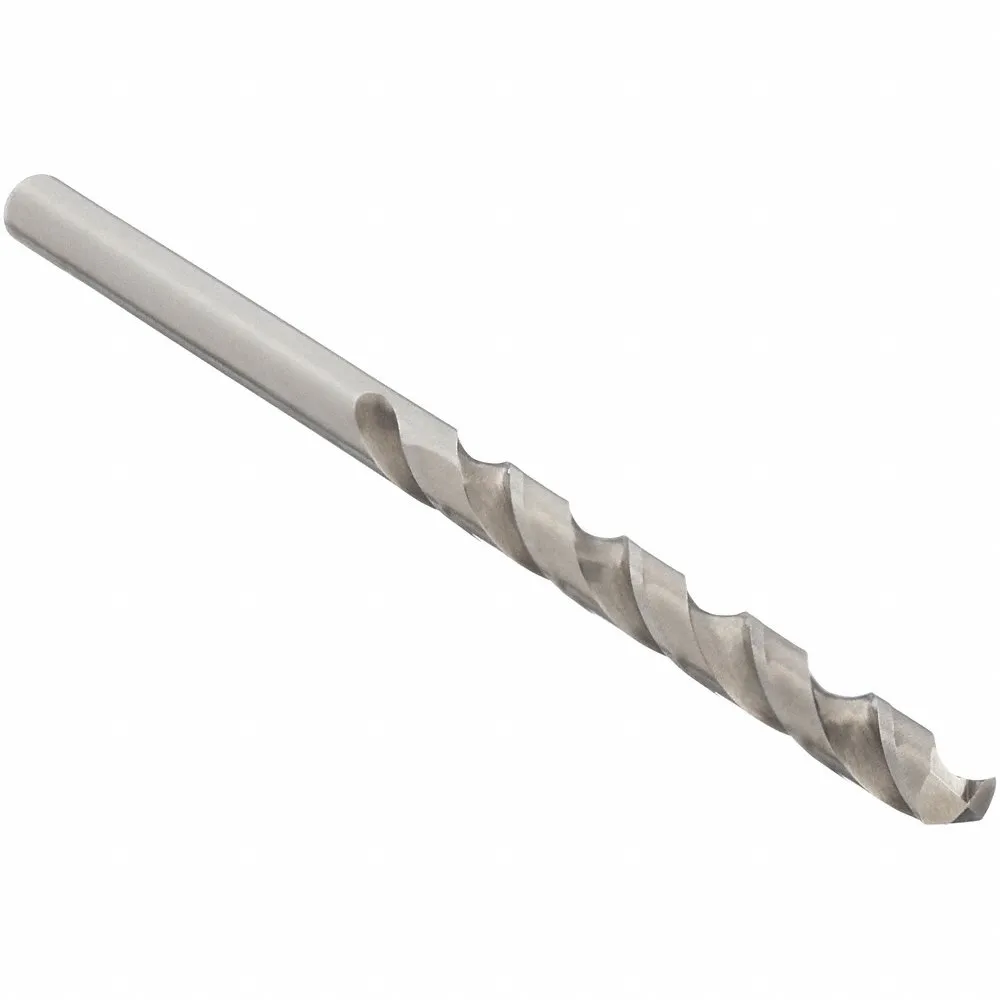

CHICAGO-LATROBE 46463 Jobber Length Drill Bit, 3.70 mm Size, 39 mm Flute Length, Cobalt
Item: CX7FERModel: 46463Cross Ref: 6ZKG1
7 In Stock
Ships within 2 days via
10.00% off
€8.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1457 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3.7 mm |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0302 mm |
| Finish - Machining | Straw, Bronze |
| Flute Length | 39 mm |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| List Number | 550 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 1 9/64" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 70 mm |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Series | 550 Series |
| Shank Diameter | 3.7 mm |
| Shank Length | 31 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
