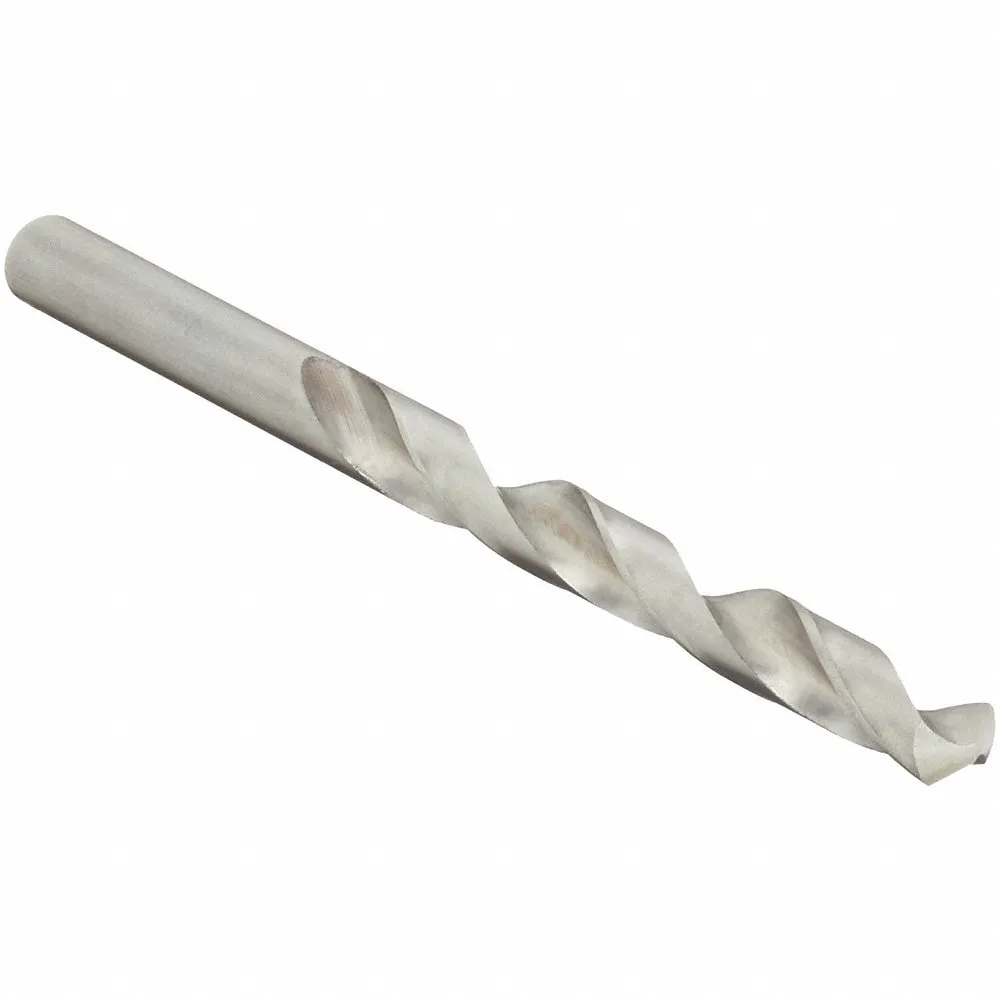

CHICAGO-LATROBE 46212 Jobber Length Drill Bit, 3/16 Inch Size, 2-5/16 Inch Flute Length
Item: CX7FDBModel: 46212Cross Ref: 434H48
7 In Stock
Ships within 2 days via
10.00% off
€7.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Chip Ejection, Brass, Bronze, Non-Ferrous Materials, Hard Rubber, Fiber, Dura-Plastics, Thermoplastics |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1875 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 3/16" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0563" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 5/16" |
| Flute Type | Slow Spiral |
| Grade | General Purpose |
| Helix Angle | +10° to +20° |
| Left/right Hand | Right |
| List Number | 150C |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 1 47/64" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 1/2" |
| Primary Material Application | Aluminum And Non Ferrous Material |
| Primary Material Application Iso Code | N |
| Series | 150C Series |
| Shank Length | 1 3/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
