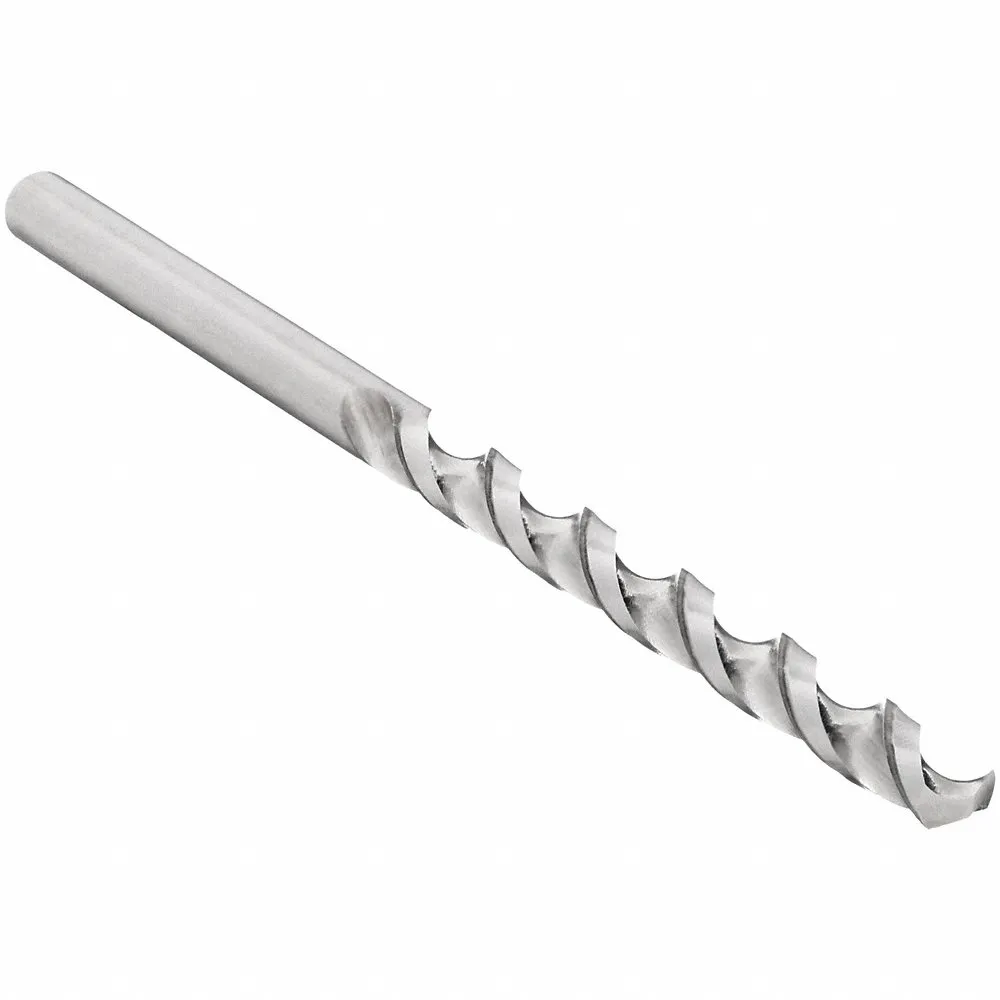

CHICAGO-LATROBE 46143 Jobber Length Drill Bit, #73 Size, 5/16 Inch Flute Length, 1-1/8 Inch Length
Item: CX7FCGModel: 46143Cross Ref: 434H28
7 In Stock
Ships within 2 days via
10.00% off
€6.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Chip Ejection, Carbon Steel, Mild Steel, Drilling Low-Tensile Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.024 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #73 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0072" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 5/16" |
| Flute Type | Fast Spiral |
| Grade | General Purpose |
| Helix Angle | +35° to +45° |
| Left/right Hand | Right |
| List Number | 150B |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 15/64" |
| Measurement System | Wire |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 1 1/8" |
| Primary Material Application | Aluminum And Non Ferrous Material, Steel |
| Primary Material Application Iso Code | N, P |
| Series | 150B Series |
| Shank Length | 13/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.86 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
