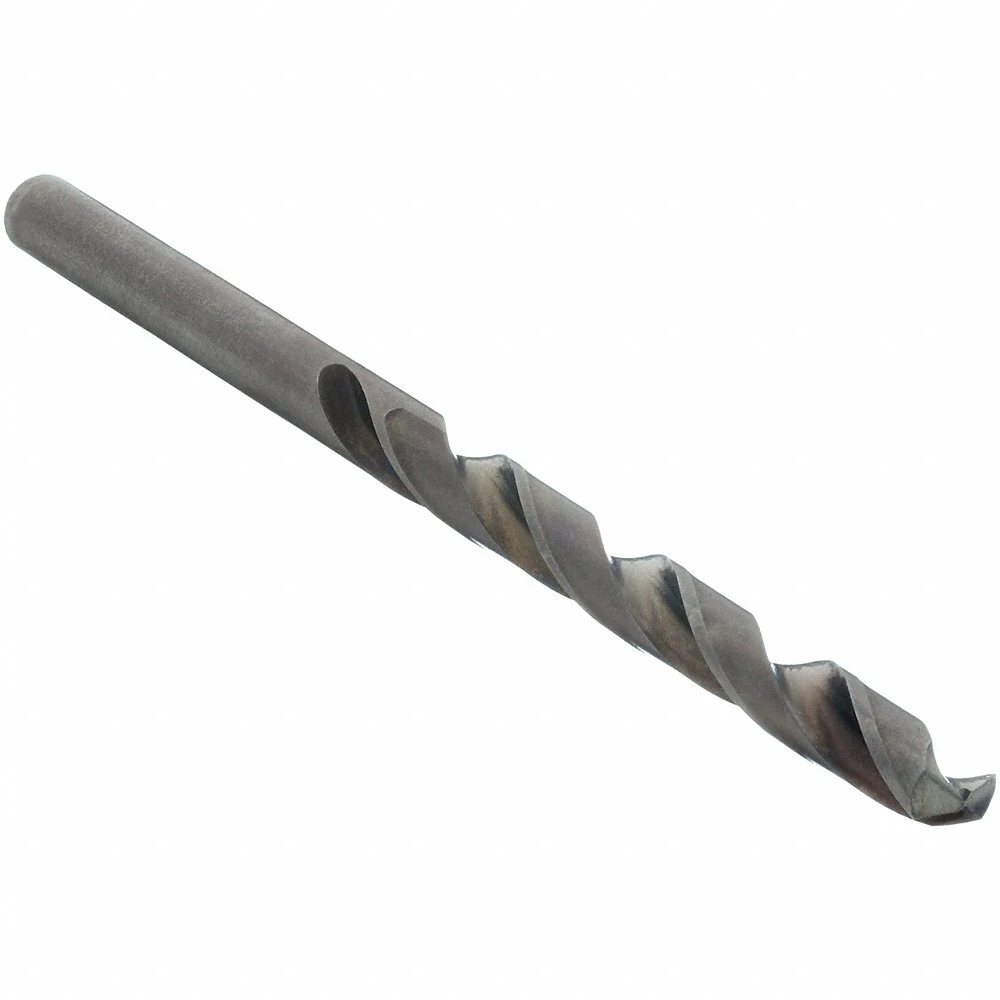

CHICAGO-LATROBE 45714 Jobber Bit #44 High Speed Steel
Item: AA9VJWModel: 45714Cross Ref: 1G633
7 In Stock
Ships within 2 days via
5.00% off
€3.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | Yes |
| Application | For Alloy, Stainless And Tool Steels And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.086 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Wire Size |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #44 |
| Drill Dia. Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0178" |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 1 1/8" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 150ASP |
| Material | High Speed Steel |
| Material Grade-machining | HIGH PERFORMANCE |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 27/32" , 5/16" |
| Measurement System | Wire |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 2 1/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Series | 150ASP Series |
| Shank Dia. | 5/64" |
| Shank Length | 1" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | #44 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 5.84 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Primary Material Application Iso Code | Max. Drilling Depth | Drill Bit Size | Shank Length | Drill Dia. Tolerance | Flute Length | Size | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45604 | K, M, P | 1/4" | 1/16" | 1" | -0" to +0.0005" | 7/8" | - | 28° | €3.65 | |
| 45605 | K, M, P | 3/4" | 5/64" | 1" | -0" to +0.0005" | 1" | - | 28° | €3.65 | |
| 45606 | K, M, P | 15/16" | - | - | - | 1 1/4" | - | +21° to +34° | €3.72 | |
| 45607 | K, M, P | 1 1/8" | 7/64" | 1 1/8" | -0" to +0.0005" | 1 1/2" | - | 28° | €3.90 | |
| 45608 | K, M, P | 1/2" | 1/8" | 1 1/8" | -0" to +0.0005" | 1 5/8" | - | 28° | €4.12 | |
| 45609 | K, M, P | 9/16" | 9/64" | 1 1/8" | -0" to +0.0007" | 1 3/4" | - | 28° | €4.45 | |
| 45610 | K, M, P | 5/8" | 5/32" | 1 1/8" | -0" to +0.0007" | 2" | - | 28° | €4.71 |
