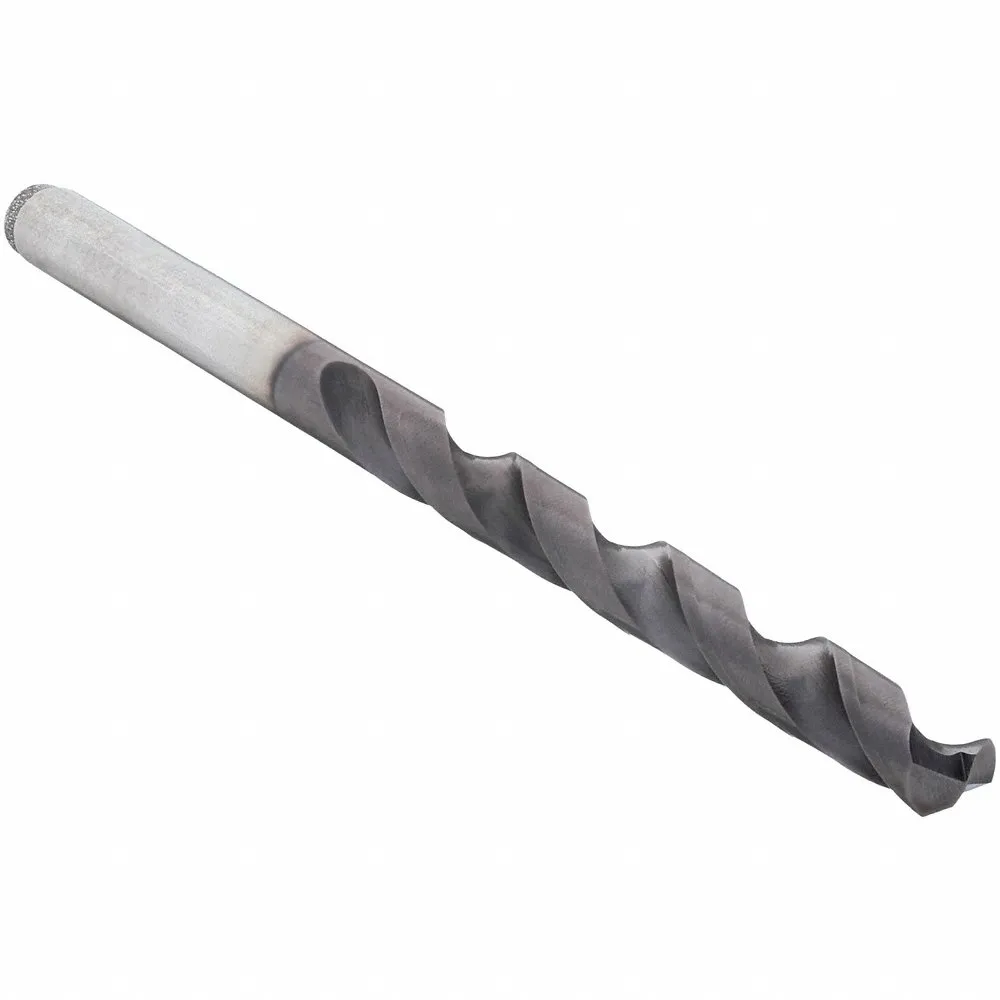

CHICAGO-LATROBE 44971 Jobber Length Drill Bit, #1 Size, 2-5/8 Inch Flute Length, 3-7/8 Inch Length
Item: CX7EMCModel: 44971Cross Ref: 434D55
7 In Stock
Ships within 2 days via
10.00% off
€23.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Application | Stainless Steel, Tool Steel, Alloy Steel, Titanium, Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.228 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #1 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0472" |
| Finish - Machining | TiAlN |
| Flute Length | 2 5/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Maximum Drilling Depth | 1 31/32" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 3 7/8" |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Series | 55TA Series |
| Shank Diameter | 7/32" |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.84 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
