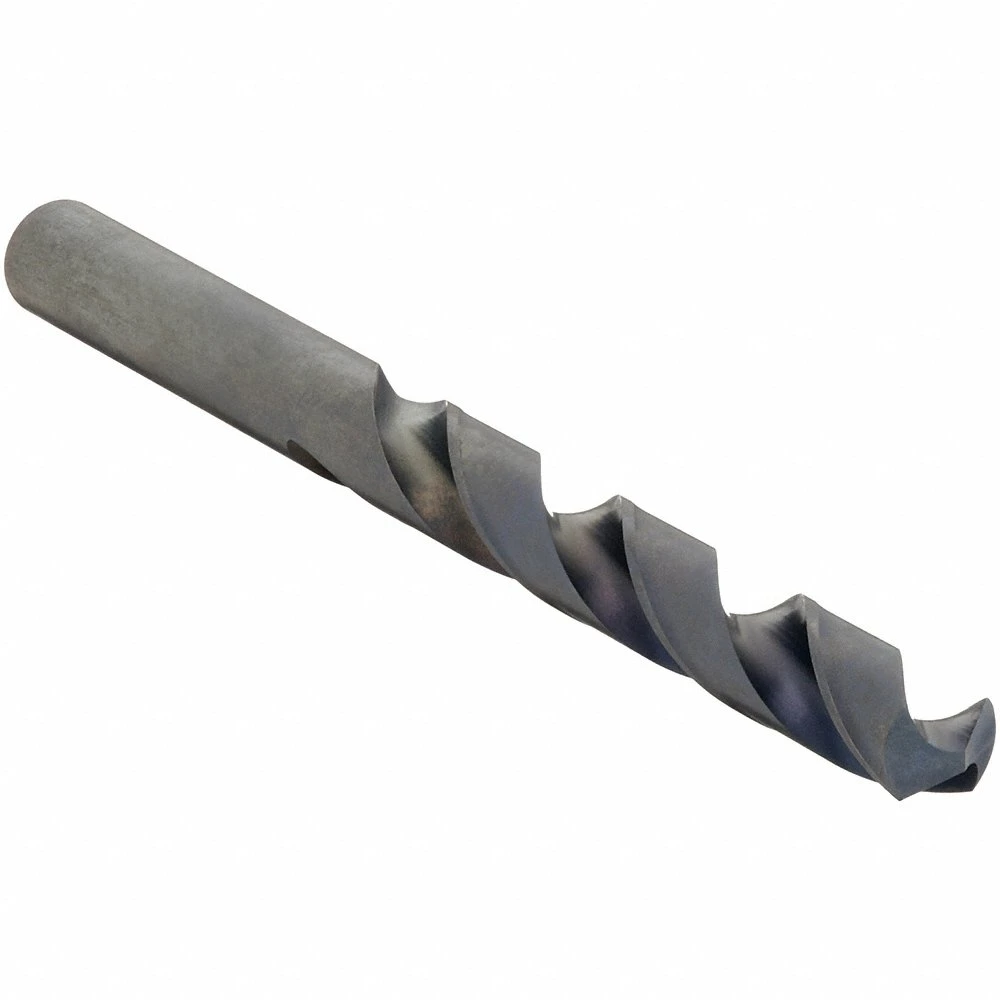

CHICAGO-LATROBE 44191 Jobber Bit U High Speed Steel
Item: AA9TMMModel: 44191Cross Ref: 1F729
7 In Stock
Ships within 2 days via
10.00% off
€14.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.368 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Letter |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | U |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 5/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 2 23/32" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 5" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 150 Series |
| Shank Dia. | 0.368" |
| Shank Length | 1 3/8" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | U |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 13.5 |
| Ship width (cm) | 8.64 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Finish | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Flute Length | Overall Length | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 44087 | 0.173 | Black Oxide | #17 | 118° | Conventional Point | 2 3/16" | 3 3/8" | - | €5.67 | |
| 44088 | - | Black Oxide | #18 | 118° | Conventional Point | 2 1/8" | - | - | €4.98 | |
| 44089 | 0.166 | Black Oxide | #19 | 118° | Conventional Point | 2 1/8" | 3 1/4" | - | €4.98 | |
| 44090 | 0.161 | Black Oxide | #20 | 118° | Conventional Point | 2 1/8" | - | - | €4.98 | |
| 44091 | 0.159 | Black Oxide | #21 | 118° | Conventional Point | 2 1/8" | - | 0.159" | €4.49 | |
| 44092 | 0.157 | Black Oxide | #22 | 118° | Conventional Point | 2" | 3 1/8" | 0.157" | €4.49 | |
| 44093 | 0.154 | Black Oxide | #23 | 118° | Conventional Point | 2" | 3 1/8" | - | €4.49 |
