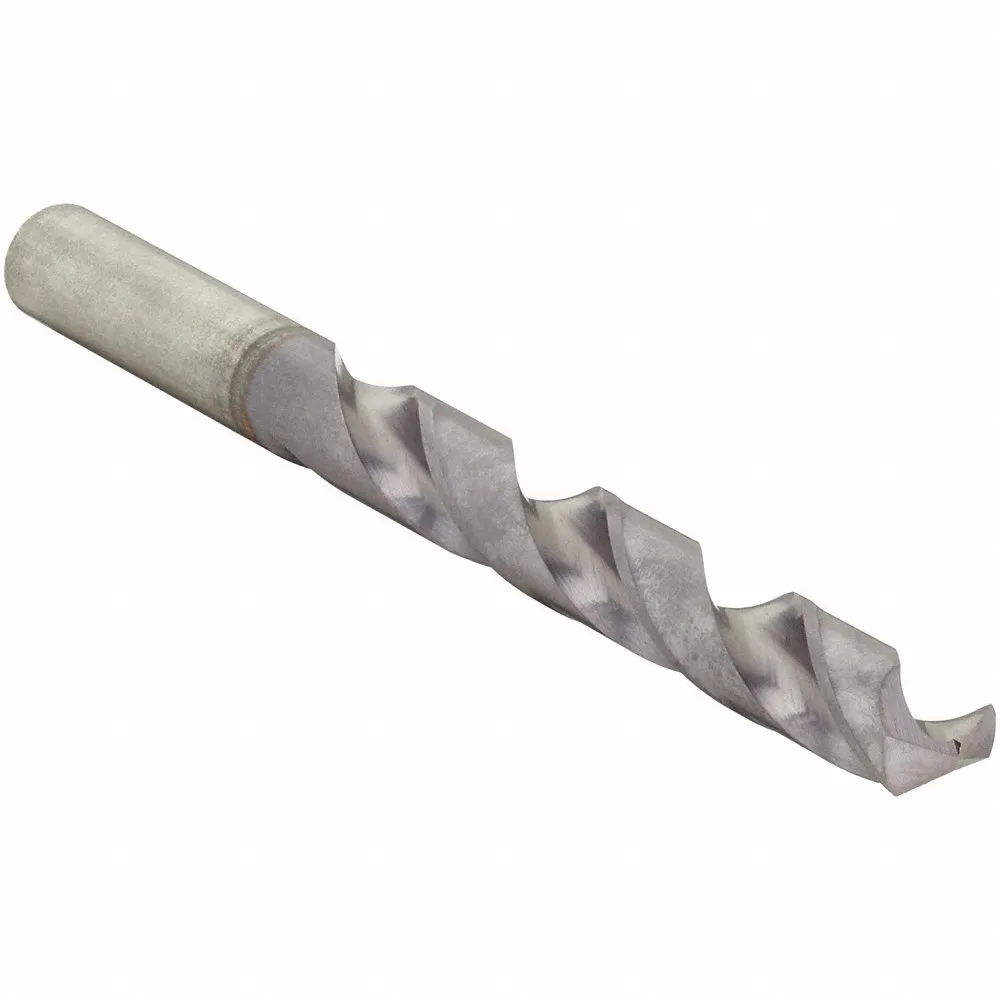

CHICAGO-LATROBE 43789 Jobber Length Drill Bit, S Size, 3 1/2 Inch Flute Length, 11/32 Inch Shank Dia.
Item: CX7EAAModel: 43789Cross Ref: 10P077
7 In Stock
Ships within 2 days via
10.00% off
€35.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.348 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | S |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish - Machining | TiCN |
| Flute Length | 3 1/2" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 2 5/8" |
| Maximum Drilling Depth | 1 3/8" |
| Number Of Flutes | 2 |
| Overall Length | 4 7/8" |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P |
| Series | 150ASP-TC |
| Shank Dia. | 11/32" |
| Shank Length | 1 3/8" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 12.38 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
