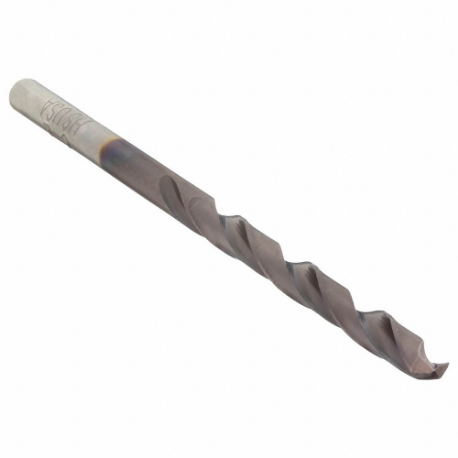

CHICAGO-LATROBE 43680 Jobber Length Drill Bit, #10 Size, 2 7/16 Inch Flute Length
Item: CQ8URWModel: 43680Cross Ref: 434C71
7 In Stock
Ships within 2 days via
10.00% off
€13.58 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | Yes |
| Application | Stainless Steel, Tool Steel, Alloy Steel, Titanium, Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1935 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #10 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0401" |
| Finish | Titanium Carbonitride |
| Finish - Machining | TiCN |
| Flute Length | 2 7/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 13/16" |
| Maximum Drilling Depth | 3/4" |
| Measurement System | Wire |
| Mfr. Series | 150ASP-TC |
| Number Of Flutes | 2 |
| Overall Length | 3 5/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P, S |
| Shank Dia. | 3/16" |
| Shank Length | 1 3/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #10 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Flute Length | Shank Dia. | Max. Drilling Depth | Overall Length | Drill Bit Size | Decimal Equivalent | Shank Length | Drill Point Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45841 | 52 mm | 4.8 mm | 3/4" | 86 mm | #12 | 0.189 | 34 mm | 0.0391 mm | €7.26 | |
| 42685 | 2 3/16" | 11/64" | 0.688" | 3 3/8" | #15 | 0.18 | 1 3/16" | 0.0373" | €14.71 | |
| 42689 | 2 1/8" | 5/32" | 5/8" | 3 1/4" | #19 | 0.166 | 1 1/8" | 0.0344" | €12.98 | |
| 42691 | 2 1/8" | 5/32" | 1 19/32" | 3 1/4" | #21 | 0.159 | 1 1/8" | 0.0329" | €12.84 | |
| 42697 | 1 7/8" | 9/64" | 1 13/32" | 3" | #27 | 0.144 | 1 1/8" | 0.0298" | €12.01 | |
| 42709 | 1 3/8" | 3/32" | 3/8" | 2 3/8" | #39 | 0.0995 | 1" | 0.0206" | €10.62 | |
| 42713 | 1 1/4" | 5/64" | 15/16" | 2 1/4" | #43 | 0.089 | 1" | 0.0184" | €9.74 |
