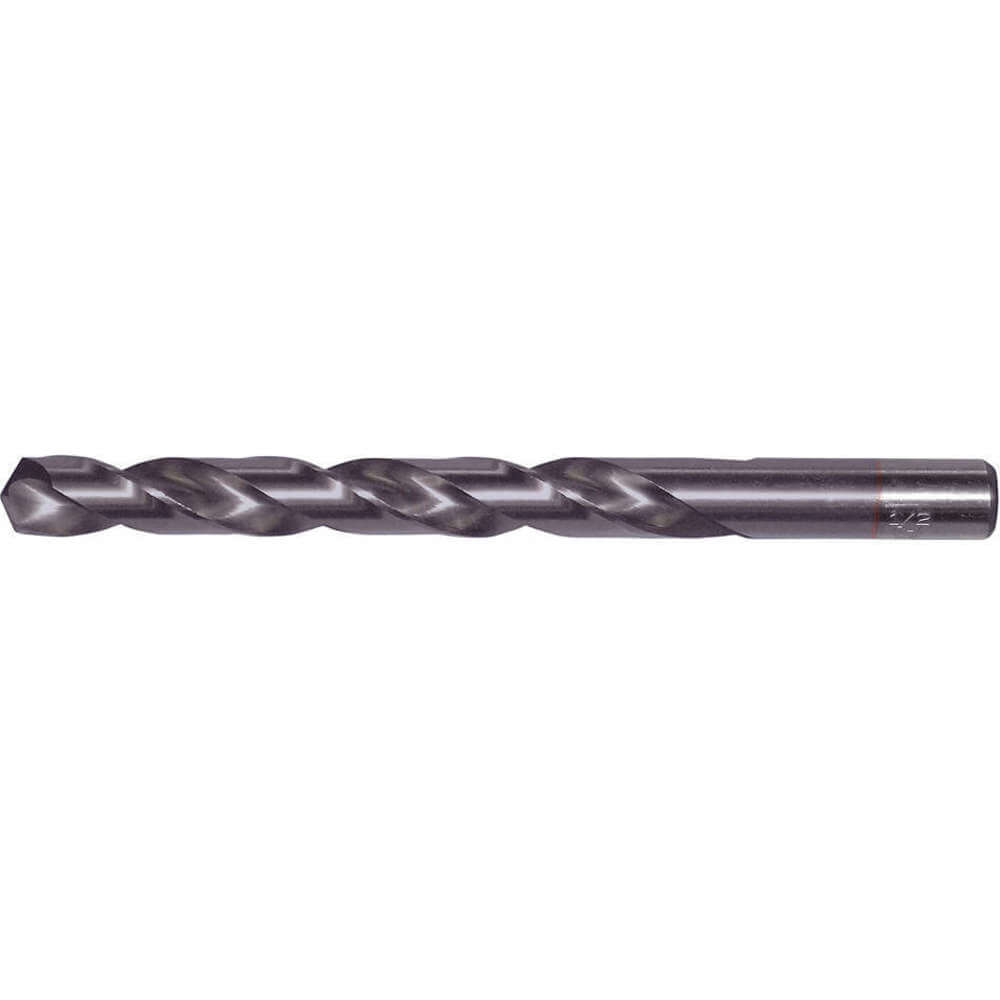

CHICAGO-LATROBE 42628 Jobber Bit 7/16 Inch High Speed Steel
Item: AA2LBWModel: 42628Cross Ref: 10P112
7 In Stock
Ships within 2 days via
10.00% off
€46.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4375 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 7/16" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0906" |
| Finish | TiAlN Coat |
| Finish - Machining | TiAlN |
| Flute Length | 4 1/16" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 150ASP |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 3/4" |
| Number Of Flutes | 2 |
| Overall Length | 5 1/2" |
| Point Angle | 135° |
| Point Type | P3 Split Point |
| Primary Material Application Iso Code | K, M, P, S |
| Series | 150ASP-TA Series |
| Shank Dia. | 7/16" |
| Shank Length | 1 7/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.65 |
| Ship width (cm) | 1.27 |
| HS code | 8207504060 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Shank Dia. | Drill Bit Size | Overall Length | Flute Length | Finish | Max. Drilling Depth | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 41771 | 0.234 | 7/32" | A | 3 7/8" | 2 5/8" | Tin Coat | 1 31/32" | 28° | €14.13 | |
| 41773 | 0.242 | 15/64" | C | 4" | 2 3/4" | Tin Coat | - | 28° | €14.94 | |
| 41774 | 0.246" | 0.246" | - | 4" | 2 3/4" | Tin Coat | 2 1/16" | +21° to +34° | €14.94 | |
| 41776 | 0.257 | 1/4" | F | 4 1/8" | 2 7/8" | Tin Coat | - | 28° | €17.13 | |
| 41777 | 0.261 | 1/4" | G | 4 1/8" | 2 7/8" | Tin Coat | - | 28° | €18.78 | |
| 41778 | 0.266" | 0.266" | - | 4 1/8" | 2 7/8" | - | - | +21° to +34° | €18.78 | |
| 41779 | 0.272 | 17/64" | I | 4 1/8" | 2 7/8" | Tin Coat | 2 5/32" | 28° | €18.78 |
