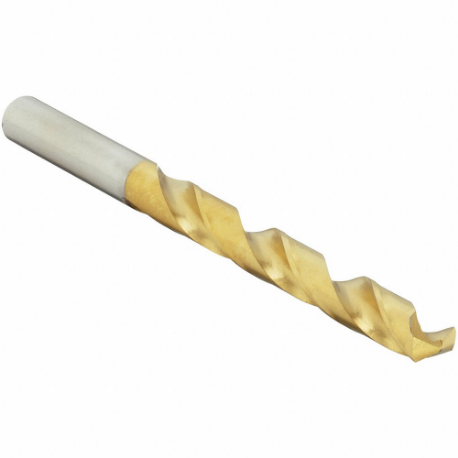

CHICAGO-LATROBE 41781 Jobber Length Drill Bit, 9/32 Inch Drill Bit Size, 2 15/16 Inch Flute Length, Tin Finish | CQ8UNP 10N932

CHICAGO-LATROBE 41781 Jobber Length Drill Bit, 9/32 Inch Size, 2 15/16 Inch Flute Length, Tin Finish

Item: CQ8UNPModel: 41781Cross Ref: 10N932
7 In Stock

Ships within 2 days via

€22.96
10.00% off
€20.66 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill Yes
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.2813
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Letter
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 9/32"
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0"
Finish Tin
Finish - Machining Tin
Flute Length 2 15/16"
Flute Type Spiral
Helix Angle 28°
Left/right Hand Right
Material High Speed Steel
Material - Machining High Speed Steel
Max. Drilling Depth 2 3/16"
Maximum Drilling Depth 1 1/16"
Measurement System Fractional Inch
Mfr. Series 150ASP-TN
Number Of Flutes 2
Overall Length 4 1/4"
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Stainless Steel, Steel
Primary Material Application Iso Code K, M, P
Shank Dia. 17/64"
Shank Length 1 5/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.281"
Spiral Direction Right Hand
System Of Measurement Letter
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)3.81
Ship length (cm)12.5
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute LengthShank Dia.Max. Drilling DepthOverall LengthDrill Bit SizeDecimal EquivalentShank LengthDrill Point LengthPrice
CHICAGO-LATROBE 45841 Jobber Length Drill Bit, #12 Drill Bit Size, 52.00 mm Flute Length, 4.8 mm Shank Dia | CQ8TXB 6ZJL0 4584152 mm4.8 mm3/4"86 mm#120.18934 mm0.0391 mm€7.26
CHICAGO-LATROBE 42685 Jobber Length Drill Bit, #15 Drill Bit Size, 2 3/16 Inch Flute Length | CQ8TXG 434C24 426852 3/16"11/64"0.688"3 3/8"#150.181 3/16"0.0373"€14.71
CHICAGO-LATROBE 42689 Jobber Length Drill Bit, #19 Drill Bit Size, 2 1/8 Inch Flute Length, 5/32 Inch Shank Dia | CQ8TXV 434C28 426892 1/8"5/32"5/8"3 1/4"#190.1661 1/8"0.0344"€12.98
CHICAGO-LATROBE 42691 Jobber Length Drill Bit, #21 Drill Bit Size, 2 1/8 Inch Flute Length, 5/32 Inch Shank Dia | CQ8TYF 434C30 426912 1/8"5/32"1 19/32"3 1/4"#210.1591 1/8"0.0329"€12.84
CHICAGO-LATROBE 42697 Jobber Length Drill Bit, #27 Drill Bit Size, 1 7/8 Inch Flute Length, 9/64 Inch Shank Dia | CQ8TYY 434C36 426971 7/8"9/64"1 13/32"3"#270.1441 1/8"0.0298"€12.01
CHICAGO-LATROBE 42709 Jobber Length Drill Bit, #39 Drill Bit Size, 1 3/8 Inch Flute Length, 3/32 Inch Shank Dia | CQ8TZZ 434C48 427091 3/8"3/32"3/8"2 3/8"#390.09951"0.0206"€10.62
CHICAGO-LATROBE 42713 Jobber Length Drill Bit, #43 Drill Bit Size, 1 1/4 Inch Flute Length, 5/64 Inch Shank Dia | CQ8UAJ 434C52 427131 1/4"5/64"15/16"2 1/4"#430.0891"0.0184"€9.74
