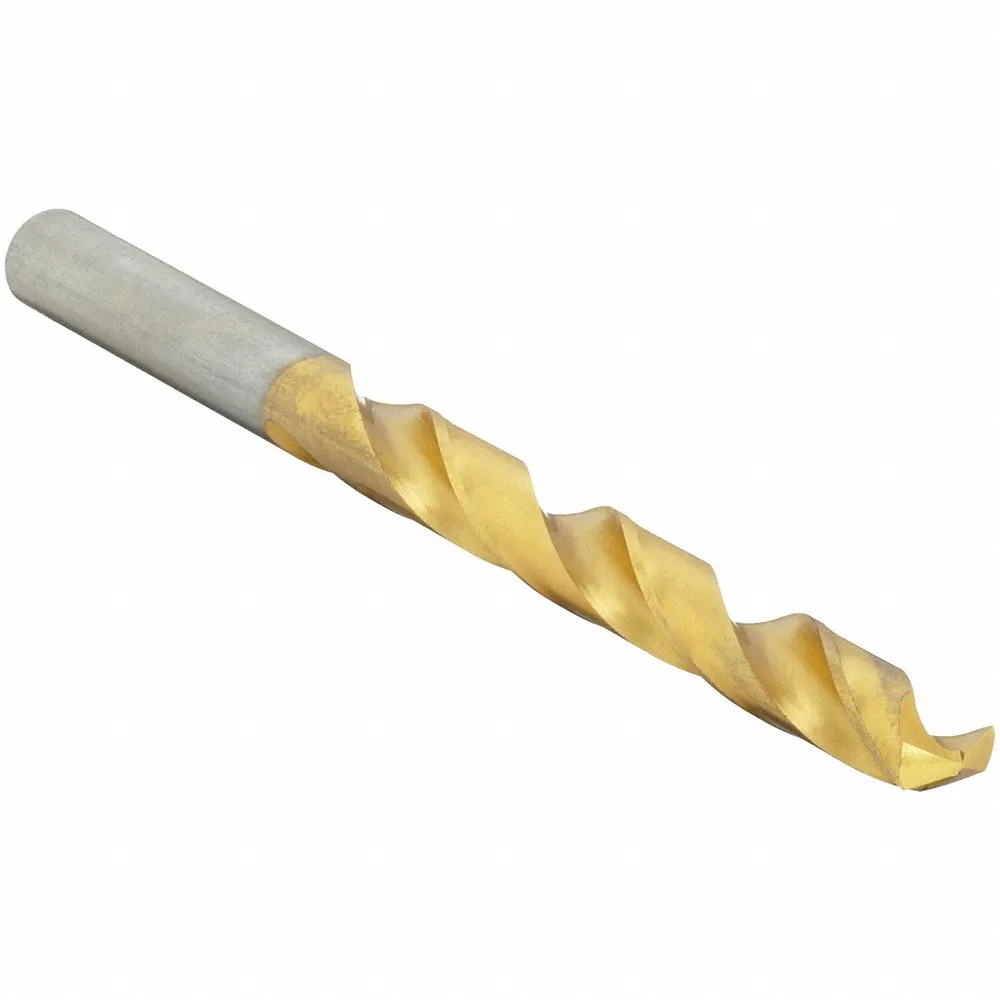

CHICAGO-LATROBE 41602 Jobber Length Drill Bit, 1/32 Inch Size, 1/2 Inch Flute Length, 1/64 Inch Shank Dia.
Item: CX7DHUModel: 41602Cross Ref: 53FP02
7 In Stock
Ships within 2 days via
10.00% off
€8.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Application | For Carbon Steel, Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0313 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/32" |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0065" |
| Finish - Machining | Tin |
| Flute Length | 1/2" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | 28° |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 3/8" |
| Maximum Drilling Depth | 1/8" |
| Number Of Flutes | 2 |
| Overall Length | 1 3/8" |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P |
| Series | 150ASP-TN |
| Shank Dia. | 1/64" |
| Shank Length | 7/8" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
