CHERNE 312248 Ball Plug, With Bypass, 12 To 24 Inch Size, 37 Inch Length, 15 psi
Get it by Wednesday, Dec 24
10.00% off
€2,735.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Muni ball plug |
| (m)npt Size (in.) | 3 |
| Air Connection Gender | Male |
| Air Connection Size | 1/4" |
| Air Connection Type | Tire Valve |
| Application | Pipe Plug, Testing |
| Body Surface Style | Smooth |
| Bypass Connection Size | 3" |
| Bypass Connection Type | NPT |
| Bypass Size | Standard Bypass |
| Bypass Thread Gender | Male |
| Contains Bypass | Yes |
| Contains Pressure Release Valve | No |
| Contains Pressure Valve | No |
| Deflated Dia. | 10.38" |
| Deflated Diameter | 10.38" |
| Deflated Length | 37" |
| Eye Inside Dia. | 1/4" |
| Features | Safety Through Design, Flexible |
| For Maximum Pipe Inside Diameter | 24 1/4" |
| For Maximum Pipe Size | 24" |
| For Minimum Pipe Inside Diameter | 11" |
| For Minimum Pipe Size | 12" |
| For Use On | Plug Selector Tool |
| Head Tether Connection | Bracket Tag |
| Includes Protective Sleeve | No |
| Inflated Length | Not Applicable |
| Material | Natural Rubber |
| Max. Back Pressure | 15 psi |
| Max. Dia. | 24" |
| Maximum Back Pressure (water) | Not Applicable |
| Min. Dia. | 11.95" |
| Mnpt Size | 3" |
| Number Of Inflation Chamber | 1 |
| Pipe Size | 12", 13", 14", 15", 16", 17", 18", 19", 20", 21", 22", 23", 24" |
| Plug Application | For Underground Waterworks (Above 6" Dia.) |
| Plug Seal Material | Natural Rubber |
| Range | 11" to 24.25" |
| Required Inflation Pressure | 45 psi |
| Seal Material | Natural Rubber |
| Test Plug Weight | 35.2 lbs. |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Product Variants
| Product | Model | For Maximum Pipe Inside Diameter | For Minimum Pipe Inside Diameter | Maximum Back Pressure (air) | For Pipe Size | Deflated Dia. | Deflated Length | Application | For Maximum Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
214188 | 18 1/4" | 10 3/4" | - | - | 10 1/2" | 25" | Pipe Plug, Testing | 18" | €2,683.39 | |
 |

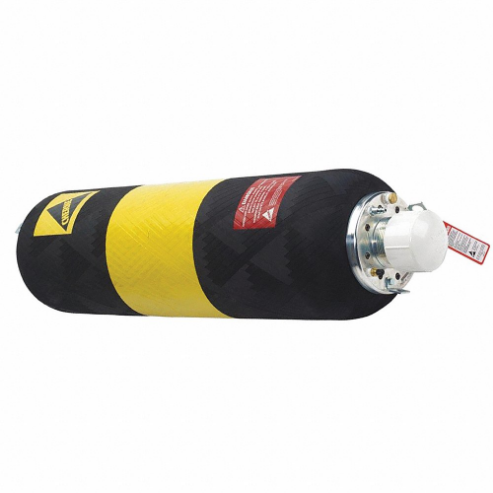

311088 | 8 1/4" | 3.95" | 15 psi | - | 3.41" | 23" | Pipe Plug, Testing | 8" | €1,296.62 | |
|
312168 | 16 1/4" | 7 1/2" | - | - | 6.41" | 28" | Pipe Plug, Testing | 16" | €1,818.59 | |
 |
314728 | 72 1/4" | - | - | - | 43" | 93" | Pipe Plug, Testing | 72" | €23,742.68 | |
 |

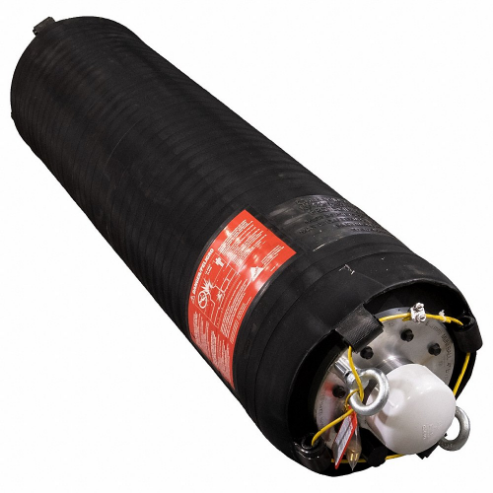

614338 | 32" | 15" | 12 psi | 15", 16", 17", 18", 19", 20", 21", 22", 23", 24", 27", 30", 32" | 14.3" | 63" | For Underground Waterworks (Above 6 In Dia.) | 32" | €7,453.80 | |
 |

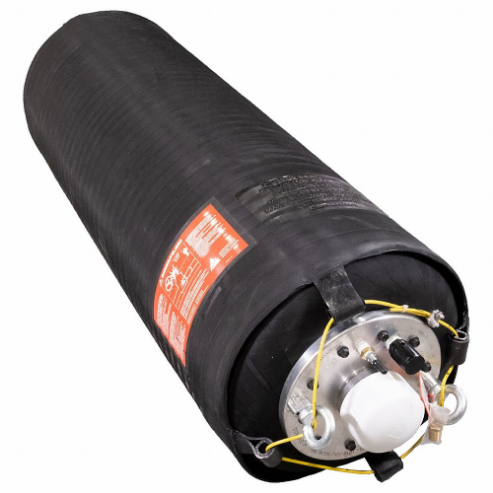

614428 | 40" | 20" | 10 psi | 20", 21", 22", 23", 24", 27", 30", 33", 36", 40" | 19 1/2" | 70" | For Underground Waterworks (Above 6 In Dia.) | 40" | €9,921.84 | |
 |

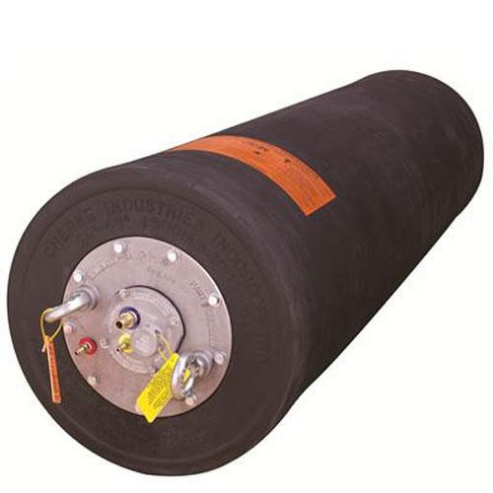

316968 | 96 1/4" | 50" | 6 psi | 54" to 96" | 43" | 132" | For Underground Waterworks (Above 6 In Dia.) | 96" | €33,465.87 |
