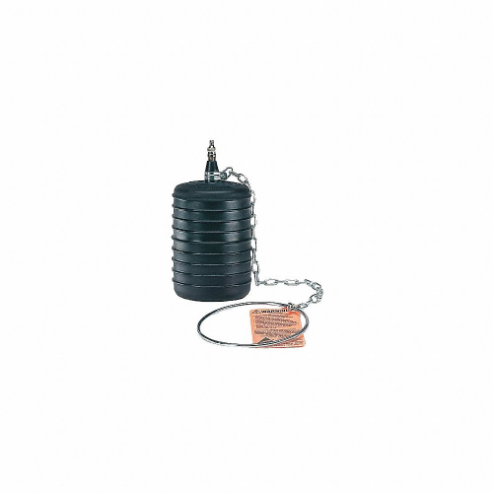

CHERNE 275048 Test-Ball Pipe Plug, 4 to 6 Inch Nominal Size, Natural Rubber
Get it by Tuesday, Dec 23
10.00% off
€244.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pipe Plug |
| Air Connection | 1/8" Male Tire Valve |
| Air Connection Gender | Male |
| Air Connection Size | 1/8" |
| Air Connection Type | Tire Valve |
| Application | Blocking, Pipe Plug, Sanitary, Storm Sewer Systems, Testing |
| Body Surface Style | Textured |
| Body Type | Textured Body |
| Bypass Connection Size | Not Applicable |
| Bypass Connection Type | Not Applicable |
| Bypass Thread Gender | Not Applicable |
| Contains Pressure Release Valve | No |
| Contains Pressure Valve | No |
| Deflated Dia. | 9 4/5" |
| Deflated Length | 9 4/5" |
| Deflated Size | 3 1/2" |
| Features | Removable Inflation Valve Can Be Replaced If Damaged |
| For Inside Diameter | 3.75" to 6.25" |
| For Maximum Pipe Inside Diameter | 6 1/4" |
| For Maximum Pipe Size | 6" |
| For Minimum Pipe Inside Diameter | 3 3/4" |
| For Minimum Pipe Size | 4" |
| For Pipe Size | 4" to 6" |
| For Use On | Pipe |
| Includes Protective Sleeve | No |
| Inflated Length | Not Applicable |
| Material | Natural Rubber |
| Maximum Back Pressure | 17 psi |
| Maximum Back Pressure (air) | 17 psi |
| Maximum Back Pressure (water) | 40 Ft. Of Head |
| Number Of Inflation Chamber | 1 |
| Pipe Size | 4", 5", 6" |
| Plug Application | For General Plumbing (6" Dia Or Less) |
| Plug Seal Material | Natural Rubber |
| Required Inflation Pressure | 30 psi |
| Seal Material | Natural Rubber |
| Test Plug Weight | 2 lbs. |
| Tether Connection | Ring And Chain |
Shipping Info:
| Ship weight (kg) | 0.84 |
| Ship height (cm) | 215.9 |
| Ship length (cm) | 215.9 |
| Ship width (cm) | 57.15 |
| Country of Origin | US |
Product Variants
| Product | Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Maximum Back Pressure (air) | Maximum Back Pressure (water) | Deflated Dia. | Deflated Length | Required Inflation Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
275088 | 8" to 12" | 7" | 12 1/4" | 11 psi | 25 Ft. Of Head | 6 3/4" | 14" | 20 psi | €1,424.37 | |
|
275058 | 6" to 8" | 5 1/4" | 8 1/4" | 17 psi | 40 Ft. Of Head | 5" | 16" | 30 psi | €684.74 |
