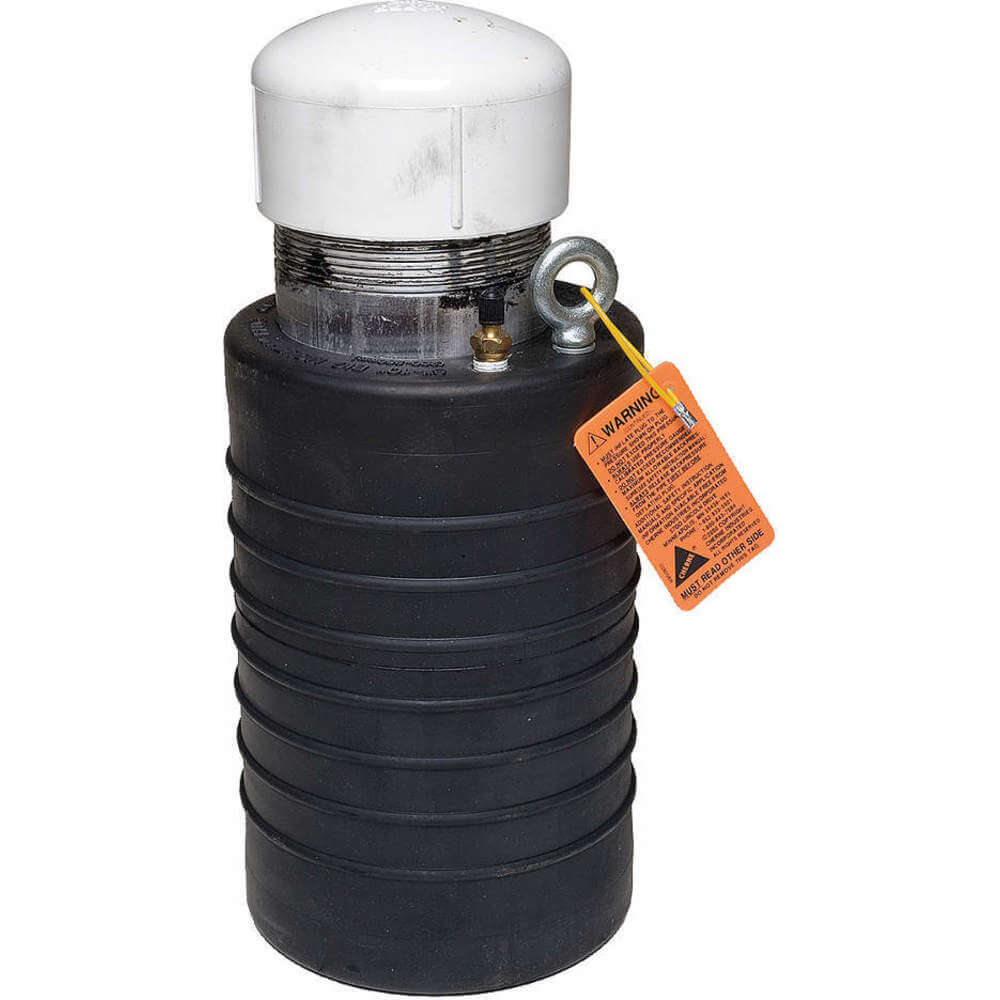

CHERNE 269028 Plug, 12 To 15 Inch Size, 17.88 Inch Length, 11 psi/ 25 ft.
Get it by Friday, Dec 26
10.00% off
€1,394.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plug |
| (m)npt Size (in.) | 6 |
| Air Connection Gender | Male |
| Air Connection Size | 1/4" |
| Air Connection Type | Tire Valve |
| Body Surface Style | Textured |
| Bypass Connection Size | 6" |
| Bypass Connection Type | NPT |
| Bypass Size | Standard Bypass |
| Bypass Thread Gender | Male |
| Contains Bypass | Yes |
| Contains Pressure Release Valve | No |
| Contains Pressure Valve | No |
| Deflated Dia. | 10 1/4" |
| Deflated Diameter | 10 1/4" |
| Deflated Length | 17 22/25" |
| Eye Inside Dia. | 3/8" |
| For Maximum Pipe Inside Diameter | 15 1/4" |
| For Maximum Pipe Size | 15" |
| For Minimum Pipe Inside Diameter | 10.62" |
| For Minimum Pipe Size | 12" |
| For Use On | Bypass Pumping, Gravity Bypass |
| Head Tether Connection | Eyebolt |
| Includes Protective Sleeve | No |
| Inflated Length | Not Applicable |
| Material | Aluminum, Rubber |
| Max. Back Pressure | 11 psi/25 ft. |
| Max. Dia. | 15 1/4" |
| Maximum Back Pressure | 11 psi |
| Maximum Back Pressure (air) | 11 psi |
| Maximum Back Pressure (water) | 25 Ft. Of Head |
| Min. Dia. | 10.62" |
| Number Of Inflation Chamber | 1 |
| Pipe Size | 12", 13", 14", 15" |
| Plug Application | For Underground Waterworks (Above 6" Dia.) |
| Plug Seal Material | Rubber |
| Plug Type | Pneumatic |
| Range | 10.62" to 15.25" |
| Required Inflation Pressure | 30 psi |
| Seal Material | Rubber |
| Test Plug Weight | 20 lbs. |
Shipping Info:
| Ship weight (kg) | 10.13 |
| Ship height (cm) | 47.75 |
| Ship length (cm) | 27.69 |
| Ship width (cm) | 26.92 |
| HS code | 4016991500 |
| Country of Origin | US |
Product Variants
| Product | Model | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Deflated Dia. | Deflated Diameter | Deflated Length | Range | Required Inflation Pressure | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
269008 | 7 1/4" | 10 1/4" | 6.94" | 6.94" | 14 22/25" | 7.25" to 10.25" | 35 psi | 8", 9", 10" | €834.60 |
