CHERNE 262129 Ball Plug, Single Size, 12 Inch Size, Inch Length, 13 psi
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€703.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Muni ball plug |
| (f)npt Size | 3 |
| Air Connection Gender | Male |
| Air Connection Size | 1/4" |
| Air Connection Type | Tire Valve |
| Application | Blocking, Commercial Piping Systems, Pipe Plug, Residential Piping Systems, Testing |
| Body Surface Style | Textured |
| Bypass Connection Size | 3" |
| Bypass Connection Type | NPT |
| Bypass Size | Standard Bypass |
| Bypass Thread Gender | Female |
| Contains Bypass | Yes |
| Contains Pressure Release Valve | No |
| Contains Pressure Valve | No |
| Deflated Dia. | 10 1/4" |
| Deflated Diameter | 10 1/4" |
| Deflated Length | 13 3/4" |
| Eye Inside Dia. | 3/8" |
| Fnpt Size | 3" |
| For Maximum Pipe Inside Diameter | 12 1/4" |
| For Maximum Pipe Size | 12" |
| For Minimum Pipe Inside Diameter | 10 1/2" |
| For Use On | Piping Systems |
| Head Tether Connection | Eyebolt |
| Includes | (2) Port Plugs |
| Includes Protective Sleeve | No |
| Inflated Length | Not Applicable |
| Material | Natural Rubber |
| Max. Back Pressure | 13 psi/30 ft. |
| Max. Dia. | 12 1/4" |
| Maximum Back Pressure | 13 psi |
| Maximum Back Pressure (air) | 13 psi |
| Maximum Back Pressure (water) | 30 Ft. Of Head |
| Min. Dia. | 10 1/2" |
| Nominal Size | 12" |
| Number Of Inflation Chamber | 1 |
| Pipe Size | 12" |
| Plug Application | For Underground Waterworks (Above 6" Dia.) |
| Plug Seal Material | Natural Rubber |
| Plug Type | Pneumatic |
| Range | 10.5" to 12.25" |
| Required Inflation Pressure | 35 psi |
| Seal Material | Natural Rubber |
| Series | MUNI-BALL Series |
| Test Plug Weight | 13 lbs. |
Shipping Info:
| Ship weight (kg) | 6.37 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 27.94 |
| HS code | 8481100060 |
| Country of Origin | US |
Product Variants
| Product | Model | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Maximum Back Pressure (air) | Maximum Back Pressure (water) | Deflated Diameter | Material | Range | For Use On | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

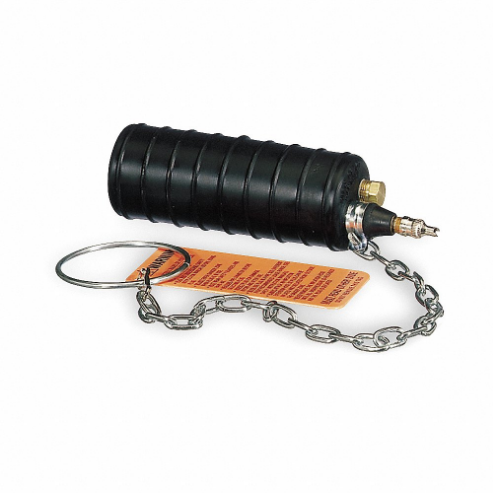

262048 | 3 1/4" | 4 1/4" | 22 psi | 50 Ft. Of Head | 3.13" | Rubber | 3.25" to 4.25" | Sewers | €308.19 | |
|
262008 | 1.49" | 1 22/25" | 22 psi | 50 Ft. Of Head | 1 2/5" | Rubber | 1.49" to 1.88" | Sewers | €286.50 | |
|
262010 | 1 22/25" | 2 1/4" | 22 psi | 20 Ft. Of Head | 1 3/4" | Rubber | 1.88" to 2.25" | Sewers | €305.39 | |
 |

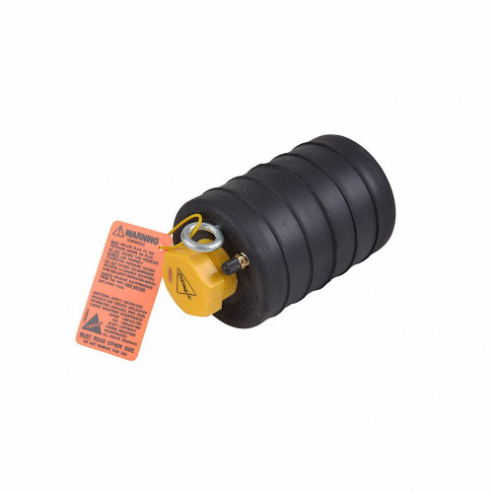

262064 | 4 1/2" | 6 1/4" | 13 psi | 30 Ft. Of Head | 4 1/2" | Rubber | 4.5" to 6.25" | Sewers | €424.80 | |
 |

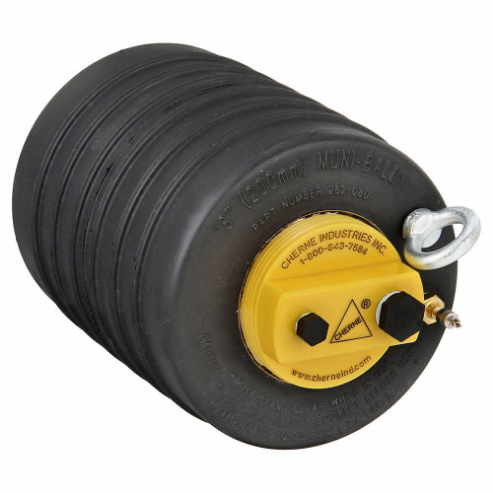

262080 | 7" | 8 1/4" | 13 psi | 30 Ft. Of Head | 6 3/4" | Rubber | 7" to 8.25" | Piping Systems | €520.60 | |
|
262110 | 9" | 10 1/4" | 13 psi | 30 Ft. Of Head | 8 3/4" | Natural Rubber | 9" to 10.25" | Piping Systems | €676.51 | |
 |

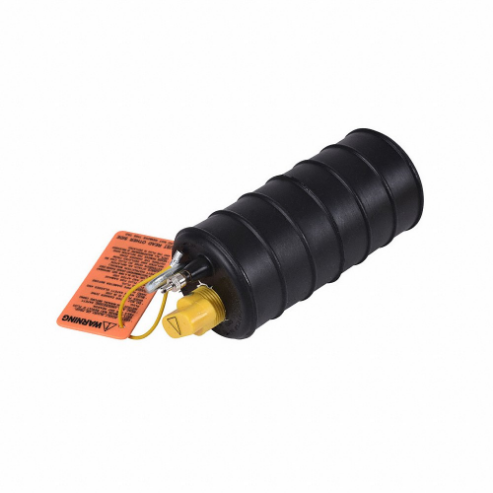

262137 | 14" | 16" | 13 psi | 30 Ft. Of Head | 13 3/4" | Natural Rubber | 14" to 16" | Piping Systems | €1,335.55 |
