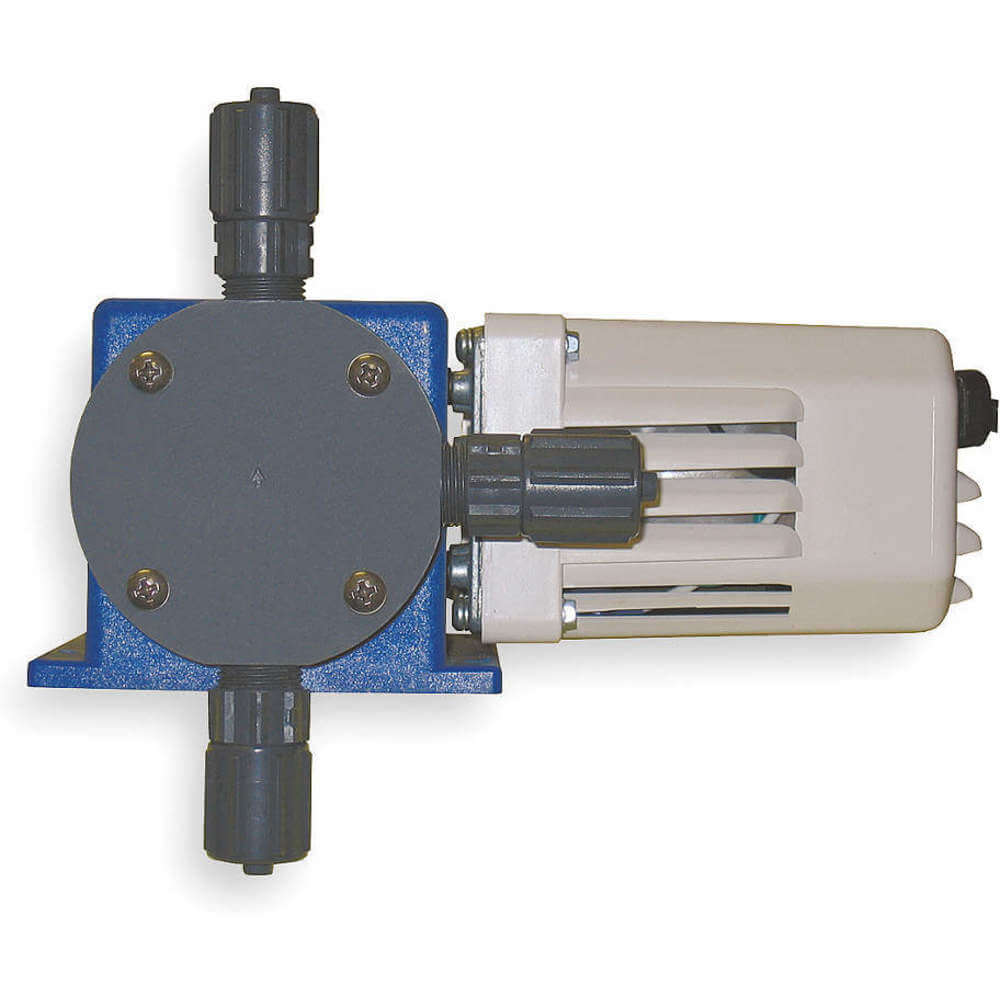

CHEM-TECH X024-XA-BAA8G19 Diaphragm Metering Pump 24 Gpd 100 Psi
Get it by Tuesday, Aug 25
13.00% off
€671.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chemical Metering Pump |
| Ball Material | Ceramic |
| Ball Material-pumps | Ceramic |
| Cc/min. | 63.1 |
| Check Ball Material | Ceramic |
| Chemical Metering Pump Type | Diaphragm |
| Compatible Chemicals | Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | Yes |
| Diaphragm Material | CSPE, PTFE, Viton |
| Discharge Connection Size | 3/8" |
| Discharge Connection Type | Tube |
| Discharge Size | 3/8" |
| Discharge Type | Tube |
| Display Qty | 1 |
| Drive Type | Electric Motor |
| Duty Cycle | Continuous |
| Features | Degassing |
| Fitting Material | PVC |
| Flow Rate | 63.1 cc/min. |
| Flow Rate Of Water Output Control | Adjustable |
| Flow Rate Output Control | Adjustable |
| Frequency | 60 Hz |
| Head And Fitting Material | PVC |
| Head Material | PVC |
| Height | 5" |
| Housing Material | ABS, Acrylic |
| Hp-pumps | 1/60 hp |
| Included | 16 ft. Tubing, Valve, Strainer, Weight And Injection, Back Pressure Valve Assembly |
| Included Degassing Valve | Yes |
| Inlet Size | 3/8" |
| Inlet Type | Tube |
| Intake Connection Size | 3/8" |
| Intake Connection Type | Tube |
| Length | 8 7/8" |
| Material | ABS, Acrylic |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 1 GPH |
| Max. Flow Rate | 24 GPD |
| Max. Hp | 1/60 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 51 RPM |
| Max. Pressure | 100 psi |
| Max. Strokes Per Minute | 51 strokes/min. |
| Max. Viscosity | 300 cPS |
| Max. Viscosity-pumps | 300 cPS |
| Min. Flow Rate | 2.4 GPD |
| Motor Hp | 1/60 hp |
| Motor Speed | 51 RPM |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Operating Pressure | 100 psi |
| Overall Height | 7.3" |
| Overall Length | 8 4/5" |
| Overall Width | 7 2/5" |
| Phase | 1 |
| Power Cord | 6 ft. |
| Priming | Self Priming |
| Pump Drive Type | Electric Motor |
| Pump Type | Diaphragm |
| Reproducibility | -2% to +2% |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility-pumps | -2% to +2% |
| Seal Material | CSPE |
| Seals And O-rings | Hypalon |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Lift | 4 ft. |
| Tubing Material | PVC |
| Turn Down Ratio | 101 , 10:1 |
| Turn Down Ratio | 10:1 |
| Type | Degassing |
| Voltage | 115/230V AC |
| Width | 7 3/8" |
Shipping Info:
| Ship weight (kg) | 3.75 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 30.48 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Max. Hp | Overall Height | Motor Hp | Housing Material | Discharge Connection Size | Head Material | Max. Discharge Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
X015-XA-BAA8-G19 | 15 GPD | 1/60 hp | 7.3" | 1/60 hp | ABS, Acrylic | 3/8" | PVC | 100 psi | €772.12 | |
|
X030-XA-BAA8-G19 | 30 GPD | 1/60 hp | 7.3" | 1/60 hp | ABS, Acrylic | 3/8" | PVC | 100 psi | €805.02 | |
 |
LB02SA-PTC1-G19 | 6 GPD | 1/5 hp | 9 3/5" | 1/5 hp | ABS | 3/8" | Glass Filled Polypropylene | 150 psi | €831.24 | |
|
LB03SA-PTC1-G19 | 12 GPD | 1/5 hp | 9.9" | 1/5 hp | ABS | 3/8" | Glass Filled Polypropylene | 150 psi | €934.13 | |
|
LB64SA-PTC1-G19 | 30 GPD | 1/5 hp | 9.9" | 1/5 hp | ABS | 3/8" | Glass Filled Polypropylene | 100 psi | €830.40 | |
 |
LPE4SA-PTC1 | 44 GPD | 1/5 hp | 10 3/5" | 1/5 hp | ABS | 3/8" | Glass Filled Polypropylene | 100 psi | €1,375.49 | |
|
LPG5SA-PTC3 | 96 GPD | 1/5 hp | 10.9" | 1/5 hp | ABS | 1/2" | Glass Filled Polypropylene | 100 psi | €1,827.55 |
