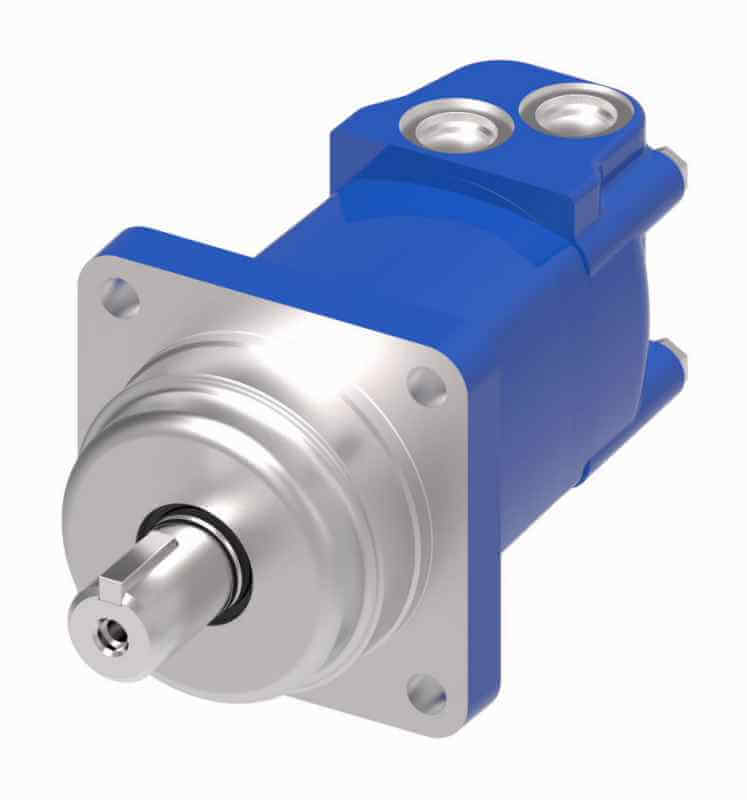

EATON / CHAR-LYNN 105-1148-006 Hydraulic Geroler Disc Valve Motor, 845 Nm, 153 Rpm
€1,974.06 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Orbital Motor |
| Continuous Flow Rate | 75 LPM |
| Continuous Torque | 7479" |
| Displacement | 29.84 cu. in./rev. |
| Intermittent Pressure | 140 Bar |
| Max. Continuous Oil Viscosity | 70 SUS |
| Max. Continuous Speed | 246 RPM |
| Max. Flow Rate | 20 GPM |
| Max. Operating Pressure | 1750 psi |
| Max. Operating Temp. | 180°F |
| Max. Speed | 153 RPM |
| Motor Port Size | 7/8"-14 |
| Mounting Flange | 4 Bolt Flange Wheel With 4 1/4" Pilot Dia. |
| Mounting Type | 4 Bolt Flange 4.25" Pilot |
| Operation Mode | Continuous Rating Motor May Be Run Continuously At These Ratings, Intermittent Operation 10% Of Every Minute, Peak Operation 1% Of Every Minute |
| Output Shaft | Straight |
| Overall Height | 5 7/25" |
| Overall Length | 9.79" |
| Overall Width | 5 7/25" |
| Port Configuration | 0.875-14 UNF-2B SAE O Ring Ports Staggered Ports |
| Port Orientation | Staggered Ports |
| Port Type | 0.875-14 UNF-2b SAE O Ring Ports Staggered Ports |
| Seal Type | Single Lip Seal |
| Shaft Type | Keyed |
Product Details:
- 2000 Series
Product Variants
| Product | Model | Displacement | Continuous Torque | Shaft Type | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|
 |
104-1198-006 | - | - | - | - | €1,580.04 | RFQ
|
|
104-1212-006 | - | - | - | - | €1,550.34 | RFQ
|
|
104-1514-006 | - | - | - | - | €1,584.00 | RFQ
|
 |
104-1591-006 | - | - | - | - | €1,920.60 | RFQ
|
 |
104-1382-006 | - | - | - | - | €1,833.48 | RFQ
|
 |
104-1397-006 | - | - | - | - | €1,896.84 | RFQ
|
|
104-1436-006 | 6.2 cu. in./rev. | 2629" | Keyed | 3000 psi | €1,479.06 | RFQ
|
