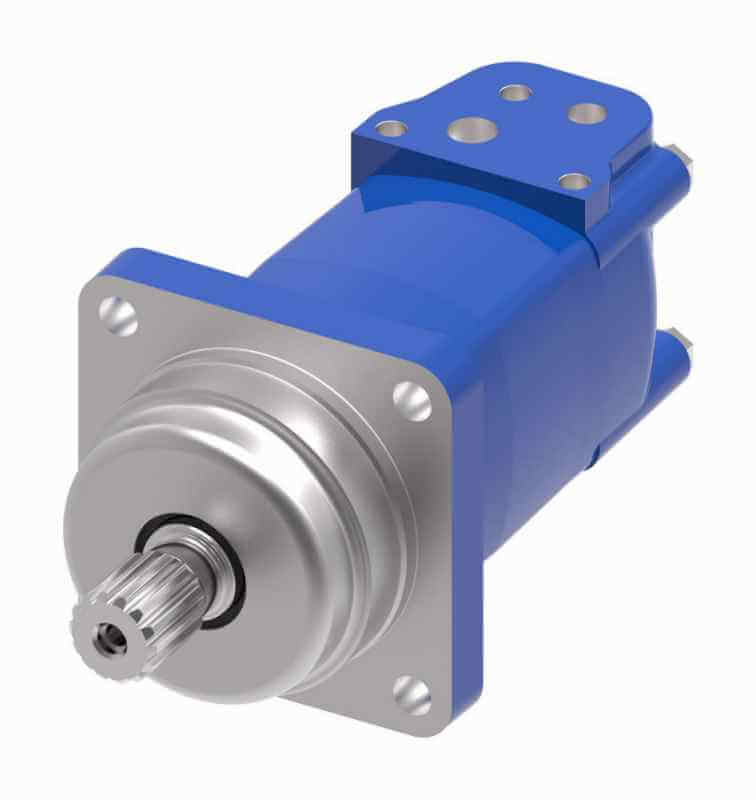

EATON / CHAR-LYNN 105-1094-006 Hydraulic Geroler Disc Valve Motor, 765 Nm, 246 Rpm
€1,827.54 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Orbital Motor |
| Continuous Flow Rate | 75 LPM |
| Displacement | 18.71 cu. in./rev. |
| Intermittent Pressure | 240 Bar |
| Max. Continuous Oil Viscosity | 70 SUS |
| Max. Continuous Speed | 308 RPM |
| Max. Operating Temp. | 180°F |
| Max. System Operating Temp. | -34°C to +82°C |
| Mounting Flange | 4 Bolt Flange Wheel With 4 1/4" Pilot Dia. |
| Mounting Type | 4 Bolt Flange 4.25" Pilot |
| Operation Mode | Continuous Rating Motor May Be Run Continuously At These Ratings, Intermittent Operation 10% Of Every Minute, Peak Operation 1% Of Every Minute |
| Output Shaft Size | 1 1/4" 14T Spline |
| Overall Height | 5 7/25" |
| Overall Length | 9.39" |
| Overall Width | 5 7/25" |
| Port Configuration | 12.7, 15.88 Dia. Manifold Ports With 3X 0.375-16 UNC-2B Port Block Mounting Holes |
| Port Orientation | Staggered Ports |
| Port Type | 12.7, 15.88 Dia. Manifold Ports With 3X 0.375-16 UNC-2B Port Block Mounting Holes |
| Seal Type | Standard |
| Shaft Type | Spline |
Product Details:
- 2000 Series
Product Variants
| Product | Model | Shaft Type | Continuous Torque | Max. Operating Pressure | Displacement | Price | |
|---|---|---|---|---|---|---|---|
 |
104-1199-006 | - | - | - | - | €1,619.64 | RFQ
|
|
104-1206-006 | - | - | - | - | €1,597.86 | RFQ
|
|
104-1214-006 | - | - | - | - | €1,621.62 | RFQ
|
|
104-1554-006 | - | - | - | - | €1,679.04 | RFQ
|
|
104-1085-006 | - | - | - | - | €1,728.54 | RFQ
|
 |
104-1150-006 | - | - | - | - | €1,704.78 | RFQ
|
 |
104-1401-006 | Straight | - | - | 18.71 cu. in./rev. | €1,558.26 | RFQ
|
