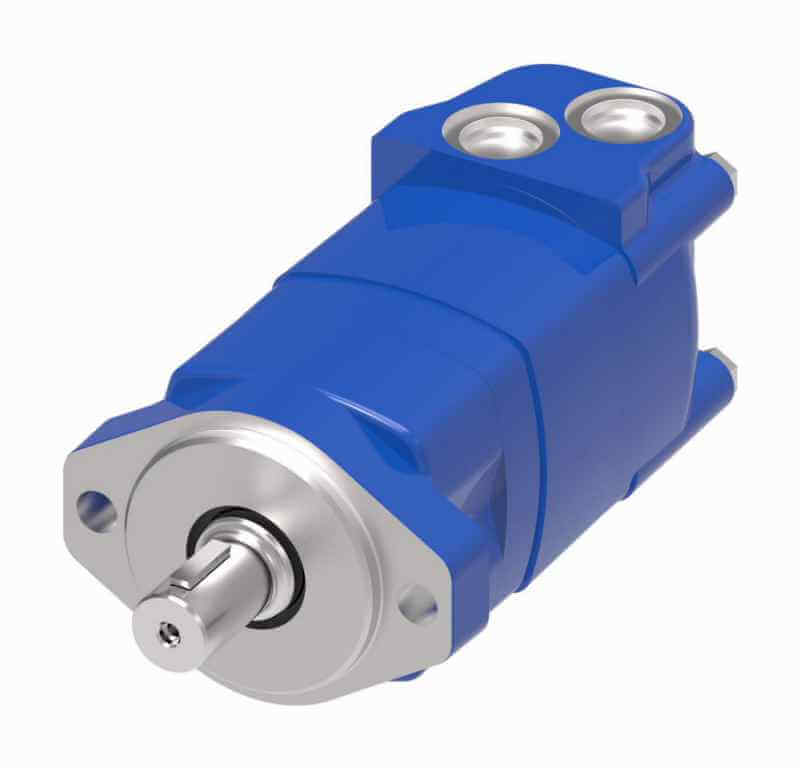

EATON / CHAR-LYNN 104-3155-006 Hydraulic Geroler Disc Valve Motor, 540 Nm, 385 Rpm
€1,494.90 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Orbital Motor |
| Continuous Flow Rate | 75 LPM |
| Continuous Torque | 4779" |
| Displacement | 11.89 cu. in./rev. |
| Intermittent Pressure | 260 Bar |
| Max. Continuous Oil Viscosity | 70 SUS |
| Max. Continuous Speed | 246 RPM |
| Max. Flow Rate | 20 GPM |
| Max. Operating Pressure | 3000 psi |
| Max. Operating Temp. | 180°F |
| Max. Speed | 385 RPM |
| Max. System Operating Temp. | -34°C to +82°C |
| Motor Port Size | 7/8"-14 |
| Mounting Flange | 2 Bolt Flange Sae A With 3 1/4" Pilot Dia. |
| Mounting Type | 2 Bolt Flange 3.25" Pilot SAE A |
| Operation Mode | Continuous Rating Motor May Be Run Continuously At These Ratings, Intermittent Operation 10% Of Every Minute, Peak Operation 1% Of Every Minute |
| Output Shaft | Straight |
| Output Shaft Size | 1" Straight Woodruff Key |
| Overall Height | 6 24/25" |
| Overall Length | 10.05" |
| Overall Width | 5 4/25" |
| Port Configuration | 0.875-14 UNF-2B SAE O Ring Ports Staggered Ports |
| Port Orientation | Staggered Ports |
| Port Type | 0.875-14 UNF-2b SAE O Ring Ports Staggered Ports |
| Seal Type | Standard |
| Shaft Type | Keyed |
Product Details:
- 2000 Series
Product Variants
| Model | Shaft Type | Displacement | Continuous Torque | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|
| 104-1197-006 | Spline | 11.89 cu. in./rev. | 4779" | 3000 psi | €1,548.36 | RFQ
|
| 104-1204-006 | - | - | - | - | €1,526.58 | RFQ
|
| 104-1220-006 | - | - | - | - | €1,550.34 | RFQ
|
| 104-1083-006 | - | - | - | - | €1,657.26 | RFQ
|
| 104-1148-006 | - | - | - | - | €1,633.50 | RFQ
|
| 104-1250-006 | - | - | - | - | €1,655.28 | RFQ
|
| 104-1258-006 | - | - | - | - | €1,679.04 | RFQ
|
