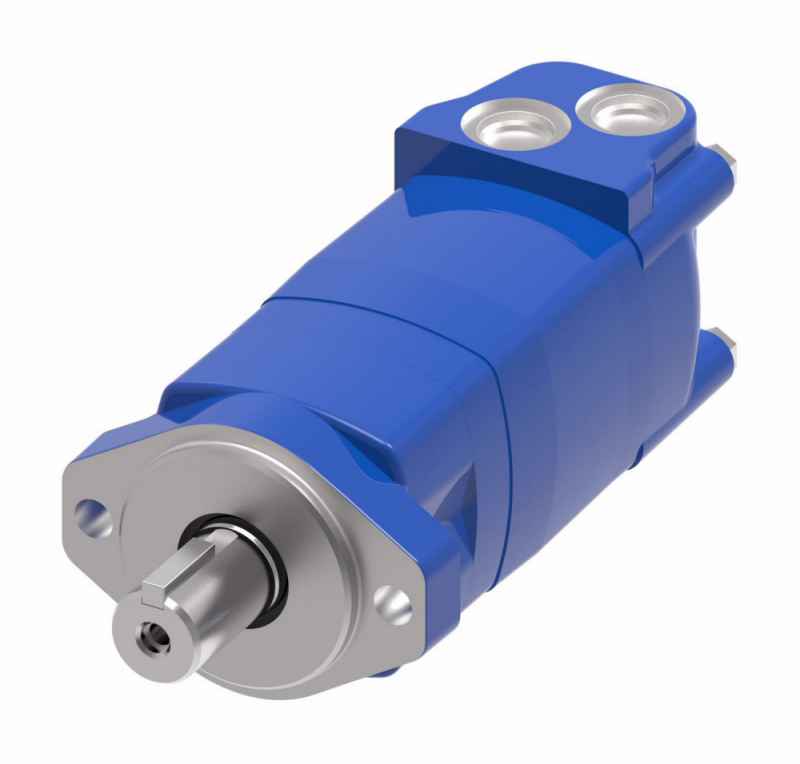

EATON / CHAR-LYNN 104-3036-006 Hydraulic Geroler Disc Valve Motor, 765 Nm, 246 Rpm
€1,710.72 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Orbital Motor |
| Continuous Flow Rate | 75 LPM |
| Continuous Torque | 6771" |
| Displacement | 18.71 cu. in./rev. |
| Intermittent Pressure | 240 Bar |
| Max. Continuous Oil Viscosity | 70 SUS |
| Max. Continuous Speed | 385 RPM |
| Max. Flow Rate | 20 GPM |
| Max. Operating Temp. | 180°F |
| Max. Speed | 246 RPM |
| Max. System Operating Temp. | -34°C to +82°C |
| Motor Port Size | 7/8"-14 |
| Mounting Flange | Standard, 2 Bolt, 82.6 Pilot Dia. 13.59 Dia. Holes On 106.4 Dia. Bolt Circle SAE A |
| Mounting Type | 2 Bolt Flange 3.25" Pilot SAE A |
| Overall Height | 6 24/25" |
| Overall Length | 10.85" |
| Overall Width | 5 4/25" |
| Port Configuration | 0.875-14 UNF-2B SAE O Ring Ports Staggered Ports |
| Port Orientation | Staggered Ports |
| Port Type | 0.875-14 UNF-2b SAE O Ring Ports Staggered Ports |
| Seal Type | Standard |
| Shaft Type | Straight |
Product Details:
- 2000 Series
Product Variants
| Product | Model | Shaft Type | Continuous Torque | Max. Operating Pressure | Displacement | Price | |
|---|---|---|---|---|---|---|---|
 |
104-1199-006 | - | - | - | - | €1,619.64 | RFQ
|
|
104-1206-006 | - | - | - | - | €1,597.86 | RFQ
|
|
104-1214-006 | - | - | - | - | €1,621.62 | RFQ
|
|
104-1554-006 | - | - | - | - | €1,679.04 | RFQ
|
|
104-1085-006 | - | - | - | - | €1,728.54 | RFQ
|
 |
104-1150-006 | - | - | - | - | €1,704.78 | RFQ
|
 |
104-1401-006 | Straight | - | - | 18.71 cu. in./rev. | €1,558.26 | RFQ
|
