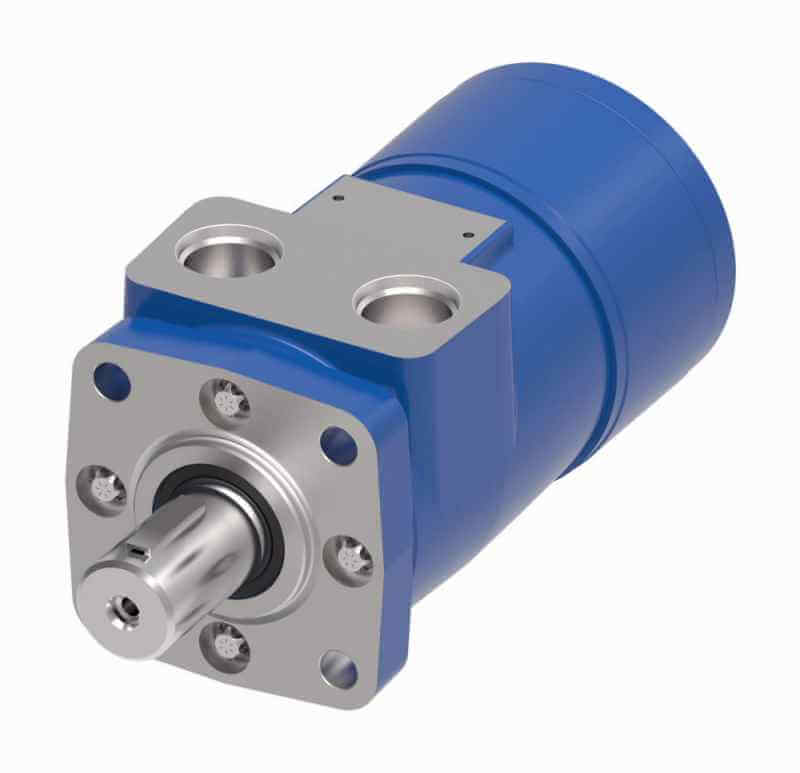

EATON / CHAR-LYNN 101-2368-009 Hydraulic Geroler Spool Valve Motor, 351 Nm, 192 Rpm
7.79"
€932.58 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Orbital Motor |
| Case Drain | No |
| Continuous Flow Rate | 15 GPM |
| Continuous Pressure | 1350 psi |
| Continuous Torque | 3110" |
| Displacement | 17.9 cu. in./rev. |
| Intermittent Flow Rate | 20 GPM |
| Intermittent Pressure | 1800 psi |
| Intermittent Torque | 4121" |
| Max. Continuous Oil Viscosity | 100 SUS |
| Max. Continuous Speed | 192 RPM |
| Max. Operating Temp. | 180°F |
| Motor Port Size | 7/8"-14 |
| Mounting Flange | 4 Bolt Std 44.4 Dia. X 3.05 Pilot, 0.375-16 UNC-2B Mounting Holes On 82.55 Dia. B.C. |
| Mounting Type | 4 Bolt |
| Output Shaft Size | 1" Straight 0.4" Crosshole |
| Overall Height | 3.31" |
| Overall Length | 7.79" |
| Overall Width | 3.38" |
| Port Configuration | 0.875-14 UNF-2B SAE O Ring Ports |
| Port Type | 0.875-14 UNF-2B O Ring Port, Size 10 Accepts Fittings For SAE J1926 |
| Recommended Fluids | Premium Quality, Anti Wear Type Hydraulic Oil With A Viscosity Of Not Less Than 701 SUS, 13cST With Best Range Of 100 SUS to 200 SUS, 20 cST to 43 cST At Operating Temperature |
| Seal Type | Standard |
| Shaft Type | Straight |
Product Details:
- H Series
Product Variants
| Model | Displacement | Continuous Torque | Mounting Type | Shaft Type | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|
| 101-1700-009 | - | - | - | - | - | €700.92 | RFQ
|
| 101-1701-009 | - | - | - | - | - | €728.64 | RFQ
|
| 101-1702-009 | - | - | - | - | - | €768.24 | RFQ
|
| 101-1703-009 | - | - | - | - | - | €792.00 | RFQ
|
| 101-1001-009 | - | - | - | - | - | €685.08 | RFQ
|
| 101-1708-009 | - | - | - | - | - | €740.52 | RFQ
|
| 101-1709-009 | - | - | - | - | - | €768.24 | RFQ
|
