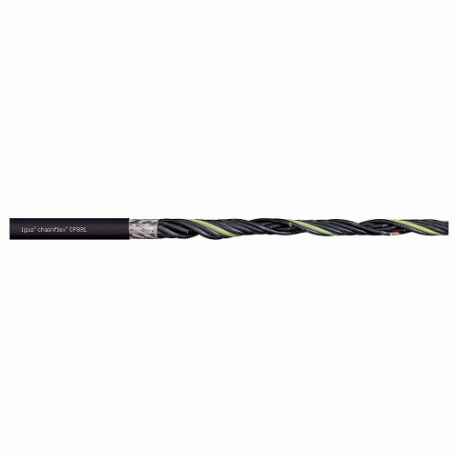

CHAINFLEX CF891-15-07 Control Cable, Cf891, Pur Jacket, Jet Black, 7 Conductors, 16 Awg, Shielded, 7 X Od | CQ8NJK 801KE4

CHAINFLEX CF891-15-07 Control Cable, Pure Jacket, Jet Black, 7 Conductors, 16 Awg, Shielded, 7 x Od

Item: CQ8NJKModel: CF891-15-07Cross Ref: 801KE4
7 In Stock

Ships within 2 days via

€7.04
10.00% off
€6.34 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Control Cable
Cable Series CF891 Series
Conductor Color Code Black, White, Green, Yellow
Conductor Material Copper
Conductor Size 16 AWG
Includes Ground Yes
Jacket Color Jet Black
Jacket Material PUR
Length Order By The Foot
Max. Acceleration 65.6 m/sq. sec.
Max. Operating Temp. 176°F
Maximum Velocity (unsupported) 10 FPS
Min. Operating Temp. (fixed) -58°F
Minimum Bend Radius Factor (fixed) 7 x OD
Minimum Bend Radius Factor (flexible) 10 x OD
Minimum Bend Radius Factor E-chain 12.5 x OD
Minimum Operating Temperature - Flexible -40°F
Number Of Conductors 7
Outside Dia. 0.43"
Product Type Control Cable
Resistance Properties Flame Retardant, Oil And Grease Resistant, UV/Sunlight Resistant
Shielding Shielded
Voltage 600V

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelJacket ColorShieldingVoltageNumber Of ConductorsIncludes GroundMax. Operating Temp.Jacket MaterialConductor SizePrice
CHAINFLEX CF888-021 Bus Cable, CF888, CAN-Bus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBU 801M69 CF888-021RedShielded50V-No158°F--€2.98
CHAINFLEX CF888-045 Bus Cable, CF888, Ethernet/CAT5e, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBV 801M70 CF888-045RedShielded50V-No158°F--€3.92
CHAINFLEX CF888-001 Bus Cable, CF888, Profibus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBW 801M68 CF888-001RedShielded50V-No158°F--€2.58
CHAINFLEX CF888-060 Bus Cable, CF888, Profinet, PVC Jacket, Yellow/Green, Shielded, 8 x OD, Order by the Foot | CQ8MBX 801M71 CF888-060Yellow, GreenShielded50V-No158°F--€4.07
CHAINFLEX CF898-083 Bus Cable, CF898, ASI Bus, PUR Jacket, Black, Shielded, 8 x OD, Order by the Foot | CQ8MBZ 801MA3 CF898-083BlackShielded50V-No158°FPUR-€5.21
CHAINFLEX CF898-082 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCA 801MA2 CF898-082YellowShielded--No158°FPUR-€5.21
CHAINFLEX CF898-080 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCB 801MA0 CF898-080YellowShielded--No158°FPUR-€4.40
