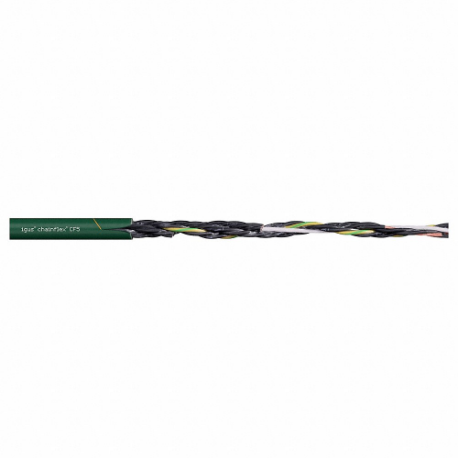

CHAINFLEX CF5-05-04 Control Cable, PVC Jacket, Moss Green, 4 Conductors, 20 Awg, Unshielded, 4 X Od
Item: CQ8MZJModel: CF5-05-04Cross Ref: 801JM3
7 In Stock
Ships within 2 days via
10.00% off
€2.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Control Cable |
| Cable Series | CF5 Series |
| Conductor Color Code | Black, White, Green, Yellow |
| Conductor Material | Copper |
| Conductor Size | 20 AWG |
| Includes Ground | Yes |
| Jacket Color | Moss Green |
| Jacket Material | PVC |
| Length | Order By The Foot |
| Max. Acceleration | 262.5 m/sq. sec. |
| Max. Operating Temp. | 158°F |
| Maximum Velocity (supported) | 16 FPS |
| Maximum Velocity (unsupported) | 33 FPS |
| Min. Operating Temp. (fixed) | 5°F |
| Min. Operating Temp. (flexible) | 23°F |
| Minimum Bend Radius Factor (flexible) | 5 x OD |
| Minimum Bend Radius Factor - E-chain | 6.8 x OD |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Number Of Conductors | 4 |
| Outside Dia. | 0.26" |
| Product Type | Control Cable |
| Resistance Properties | Flame Retardant, Oil And Grease Resistant, UV/Sunlight Resistant |
| Shielding | Unshielded |
| Voltage | 300V |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Shielding | Voltage | Number Of Conductors | Includes Ground | Max. Operating Temp. | Jacket Material | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF888-021 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.98 | |
| CF888-045 | Red | Shielded | 50V | - | No | 158°F | - | - | €3.92 | |
| CF888-001 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.58 | |
| CF888-060 | Yellow, Green | Shielded | 50V | - | No | 158°F | - | - | €4.07 | |
| CF898-083 | Black | Shielded | 50V | - | No | 158°F | PUR | - | €5.21 | |
| CF898-082 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €5.21 | |
| CF898-080 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €4.40 |
