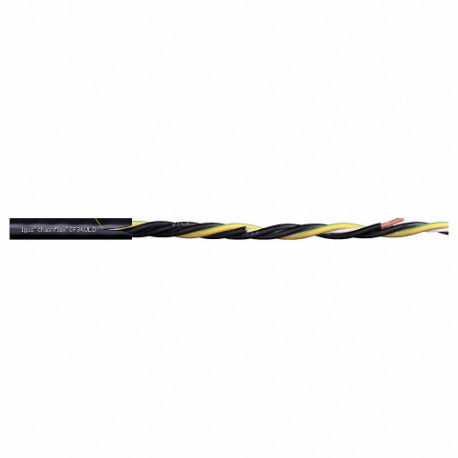

CHAINFLEX CF34-160-05 Power Cable, Tpe Jacket, 5 Conductors, 6 Awg000 V, 4 x Od, Order By The Foot | CQ8NXC 801M09

CHAINFLEX CF34-160-05 Power Cable, Tpe Jacket, 5 Conductors, 6 Awg000 V, 4 x Od, Order By The Foot

Item: CQ8NXCModel: CF34-160-05Cross Ref: 801M09
7 In Stock

Ships within 2 days via

€66.12
5.00% off
€62.82 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Power Cable
Cable Series CF34-UL Series
Conductor Color Code Black, White, Green, Yellow
Conductor Size 6 AWG
Jacket Color Signal Black
Jacket Material TPE
Length Order By The Foot
Max. Acceleration 262.5 m/sq. sec.
Max. Operating Temp. 194°F
Max. Velocity Unsupported 33 FPS
Max. Velocity-supported 20 FPS
Min. Bend Radius Factor (fixed) 4 x OD
Min. Bend Radius Factor-e-chain 7.5 x OD
Min. Bend Radius Factor-flexible 6 x OD
Min. Operating Temp. (fixed) -58°F
Min. Operating Temp. (flexible) -49°F
No. Of Conductors 5
Outside Dia. 0.89"
Resistance Properties Oil And Grease Resistant, UV, Sunlight Resistant
Shielding Unshielded
Voltage 1000V

Shipping Info:

Ship weight (kg) 0.31
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelJacket ColorMax. Operating Temp.ShieldingVoltageJacket MaterialConductor SizeOutside Dia.Min. Operating Temp. (fixed)Price
CHAINFLEX CF888-021 Bus Cable, CF888, CAN-Bus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBU 801M69 CF888-021Red158°FShielded50V---5°F€2.98
CHAINFLEX CF888-045 Bus Cable, CF888, Ethernet/CAT5e, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBV 801M70 CF888-045Red158°FShielded50V--7/25"5°F€3.92
CHAINFLEX CF888-001 Bus Cable, CF888, Profibus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBW 801M68 CF888-001Red158°FShielded50V--0.31"5°F€2.58
CHAINFLEX CF888-060 Bus Cable, CF888, Profinet, PVC Jacket, Yellow/Green, Shielded, 8 x OD, Order by the Foot | CQ8MBX 801M71 CF888-060Green, Yellow158°FShielded50V--7/25"5°F€4.07
CHAINFLEX CF898-083 Bus Cable, CF898, ASI Bus, PUR Jacket, Black, Shielded, 8 x OD, Order by the Foot | CQ8MBZ 801MA3 CF898-083Black158°FShielded50VPUR---58°F€5.21
CHAINFLEX CF898-082 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCA 801MA2 CF898-082Yellow158°FShielded-PUR---58°F€5.21
CHAINFLEX CF898-080 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCB 801MA0 CF898-080Yellow158°FShielded-PUR---58°F€4.40
