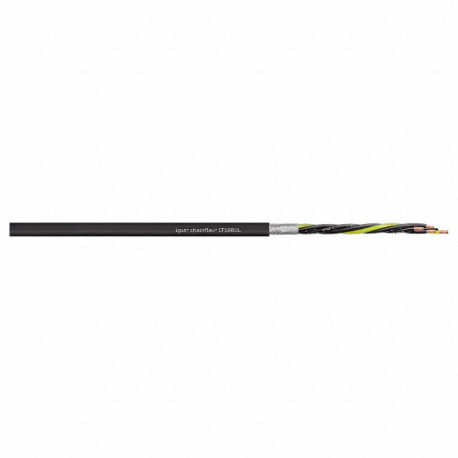

CHAINFLEX CF160-UL-10-07 Exposed Run Tray Cable, PVC Jacket, Jet Black, 7 Conductors, 17 Awg, Shielded | CQ8PAF 801JG4

CHAINFLEX CF160-UL-10-07 Exposed Run Tray Cable, PVC Jacket, Jet Black, 7 Conductors, 17 Awg, Shielded

Item: CQ8PAFModel: CF160-UL-10-07Cross Ref: 801JG4
7 In Stock

Ships within 2 days via

€9.79
10.00% off
€8.81 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Tray Cable
Cable Series CF160-UL Series
Conductor Material Copper
Conductor Size 17 AWG
Includes Ground Yes
Jacket Color Jet Black
Jacket Material PVC
Length Order By The Foot
Max. Acceleration 65.6 m/sq. sec.
Max. Operating Temp. 158°F
Maximum Velocity (unsupported) 10 FPS
Maximum Velocity - Supported 7 FPS
Min. Operating Temp. (fixed) 5°F
Min. Operating Temp. (flexible) 23°F
Minimum Bend Radius Factor - Fixed 4 x OD
Minimum Bend Radius Factor - Flexible 6 x OD
Minimum Bend Radius Factor E-chain 7.5 x OD
Number Of Conductors 7
Outside Dia. 0.49"
Resistance Properties Flame Retardant, Oil And Grease Resistant
Shielding Shielded
Voltage 600V

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelJacket ColorShieldingVoltageNumber Of ConductorsIncludes GroundMax. Operating Temp.Jacket MaterialConductor SizePrice
CHAINFLEX CF888-021 Bus Cable, CF888, CAN-Bus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBU 801M69 CF888-021RedShielded50V-No158°F--€2.98
CHAINFLEX CF888-045 Bus Cable, CF888, Ethernet/CAT5e, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBV 801M70 CF888-045RedShielded50V-No158°F--€3.92
CHAINFLEX CF888-001 Bus Cable, CF888, Profibus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBW 801M68 CF888-001RedShielded50V-No158°F--€2.58
CHAINFLEX CF888-060 Bus Cable, CF888, Profinet, PVC Jacket, Yellow/Green, Shielded, 8 x OD, Order by the Foot | CQ8MBX 801M71 CF888-060Yellow, GreenShielded50V-No158°F--€4.07
CHAINFLEX CF898-083 Bus Cable, CF898, ASI Bus, PUR Jacket, Black, Shielded, 8 x OD, Order by the Foot | CQ8MBZ 801MA3 CF898-083BlackShielded50V-No158°FPUR-€5.21
CHAINFLEX CF898-082 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCA 801MA2 CF898-082YellowShielded--No158°FPUR-€5.21
CHAINFLEX CF898-080 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCB 801MA0 CF898-080YellowShielded--No158°FPUR-€4.40
