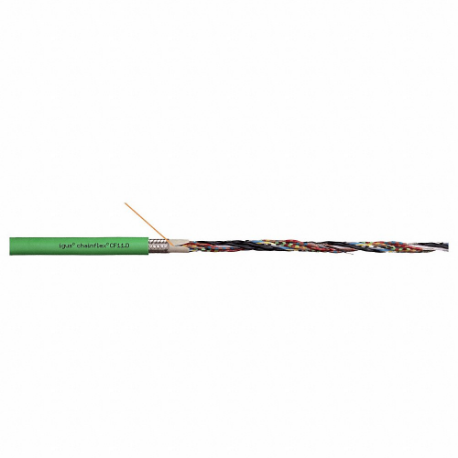

CHAINFLEX CF11-013-D Measuring System Cable, CF11-D, TPE Jacket, Shielded, 0.35 Inch Outside Dia, 50 V Volt
Item: CQ8MNBModel: CF11-013-DCross Ref: 801KV6
7 In Stock
Ships within 2 days via
10.00% off
€9.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cable |
| Conductor Color Code | Green/Yellow, Grey/Pink Blue/Red, White/Brown |
| Conductor Material | Copper |
| Jacket Color | Yellow, Green |
| Jacket Material | TPE |
| Length | Order By The Foot |
| Max. Operating Temp. | 194°F |
| Maximum Velocity (supported) | 20 FPS |
| Maximum Velocity (unsupported) | 33 FPS |
| Min. Operating Temp. (fixed) | -67°F |
| Min. Operating Temp. (flexible) | -58°F |
| Minimum Bend Radius Factor (fixed) | 4 x OD |
| Minimum Bend Radius Factor E-chain | 7.5 x OD |
| Outside Dia. | 0.35" |
| Resistance Properties | Oil And Grease Resistant, UV/Sunlight Resistant |
| Shielding | Shielded |
| Voltage | 50V |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Max. Operating Temp. | Jacket Material | Voltage | Outside Dia. | Minimum Bend Radius Factor (fixed) | Min. Operating Temp. (flexible) | Minimum Bend Radius Factor E-chain | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

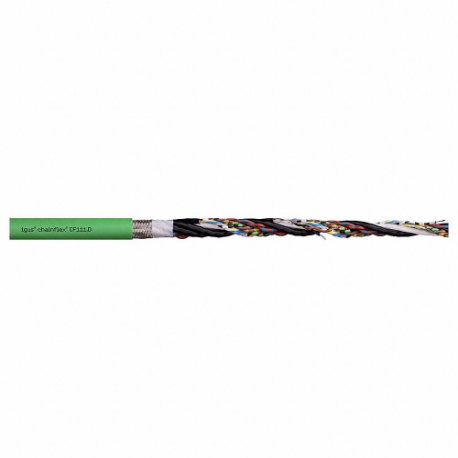

| CF111-024-D | Yellow, Green | 176°F | PUR | 50V | 7/25" | - | -40°F | 10 x OD | €9.89 | |
| CF111-022-D | Yellow, Green | 176°F | PUR | 50V | 7/25" | - | -40°F | 10 x OD | €5.91 | |
| CF111-028-D | Yellow, Green | 176°F | PUR | 50V | 0.3" | - | -40°F | 10 x OD | €9.93 | |
| CF111-009-D | Yellow, Green | 176°F | PUR | 50V | 0.31" | - | -40°F | 10 x OD | €9.53 | |
| CF111-027-D | Yellow, Green | 176°F | PUR | 50V | 0.31" | - | -40°F | 10 x OD | €8.68 | |
| CF111-010-D | Yellow, Green | 176°F | PUR | 50V | - | - | -40°F | 10 x OD | €11.02 | |
| CF111-015-D | Yellow, Green | 176°F | PUR | 50V | - | - | -40°F | 10 x OD | €7.24 |
