CENTURY PD6104AV3 Farm Duty Motor Capacitor Start Teao 1hp 1725 Rpm
Get it by Wednesday, Dec 24
10.00% off
€532.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Replacement Use In Agricultural Exhaust Fans |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Finish | Enamel |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 9/4.5A |
| Hp | 1 hp |
| Includes | Gasketed Wiring Compartment Cover |
| Ins. Class | Class B |
| Length Less Shaft | 10 13/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Phase | 1 |
| Service Factor | 1.3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| Weight | 40 lbs. |
Shipping Info:
| Ship weight (kg) | 40 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 20.32 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Motor Mounting Type | Motor Sub Application | Hp | Motor Service Factor | Service Factor | Mounting Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD6104AV2 | 115/230V AC | Cradle Base | Belt Drive Fan/Blower | - | - | 1.3 | Cradle Base | 12 5/8" | €728.33 | |
 |

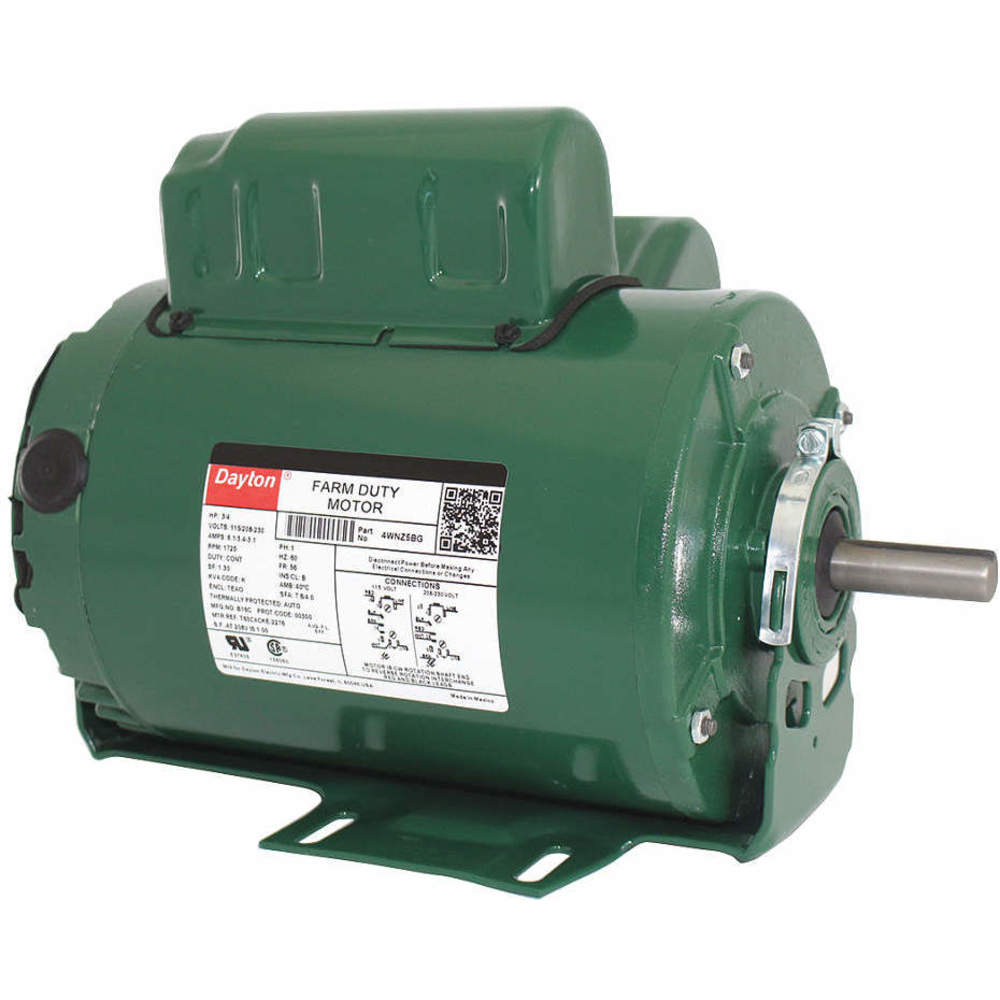

4WNZ5 | 115/208-230V AC | Cradle Base | Agricultural Fan | 3/4 hp | - | 1.3 | Cradle Base | 11 13/16" | €547.13 | |
 |
4WNZ6 | 115/208-230V AC | Rigid Base | Agricultural Fan | 3/4 hp | - | 1.3 | Rigid Base | 12 3/8" | €600.53 | |
 |
5JKW9 | 115/208-230V AC | Cradle Base | Agricultural Fan | 1/2 hp | 1.4 | 1.4 | Cradle Base | 11 13/16" | €704.78 |
