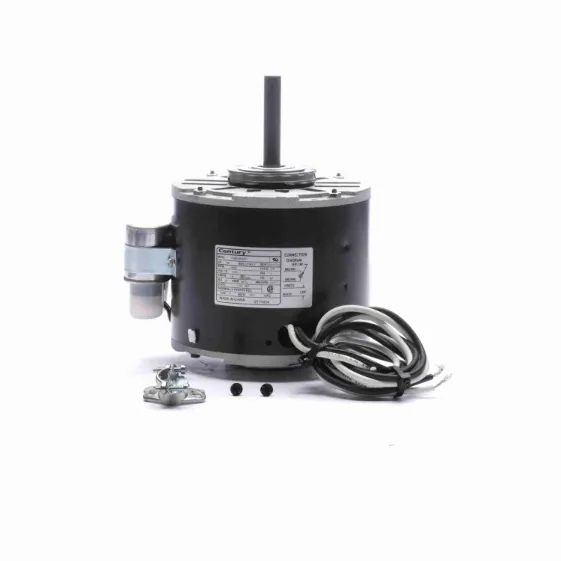

CENTURY OTY1024 OEM Replacement Motor
Get it by Tuesday, Dec 23
10.00% off
€363.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | OEM Replacement Motor |
| Body Dia. | 5.6" |
| Capacitor Required | Yes |
| Frame | 48 |
| Full Load Amps | 1.9A |
| Hp | 1/4 hp |
| Ins. Class | Class B |
| Length Less Shaft | 5 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Oem Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Semi Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Rings |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counterclockwise Lead End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Nameplate Rpm | 1625 RPM |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Century |
| Overall Length | 8 1/8" |
| Phase | Single |
| Product Type | Oem Replacement Motor |
| Replacement For | 03042, 323P663, 5KCP39EG755S, 5KCP39EGC053T, 5KCP39EN81, 5KCP39EN81S, 71240075, F153, F48E85A01, S3042 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3" |
| Voltage | 230V AC |
| Weight | 15 lbs. |
Shipping Info:
| Ship weight (kg) | 15 |
| Ship height (cm) | 20.07 |
| Ship length (cm) | 25.91 |
| Ship width (cm) | 19.3 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
