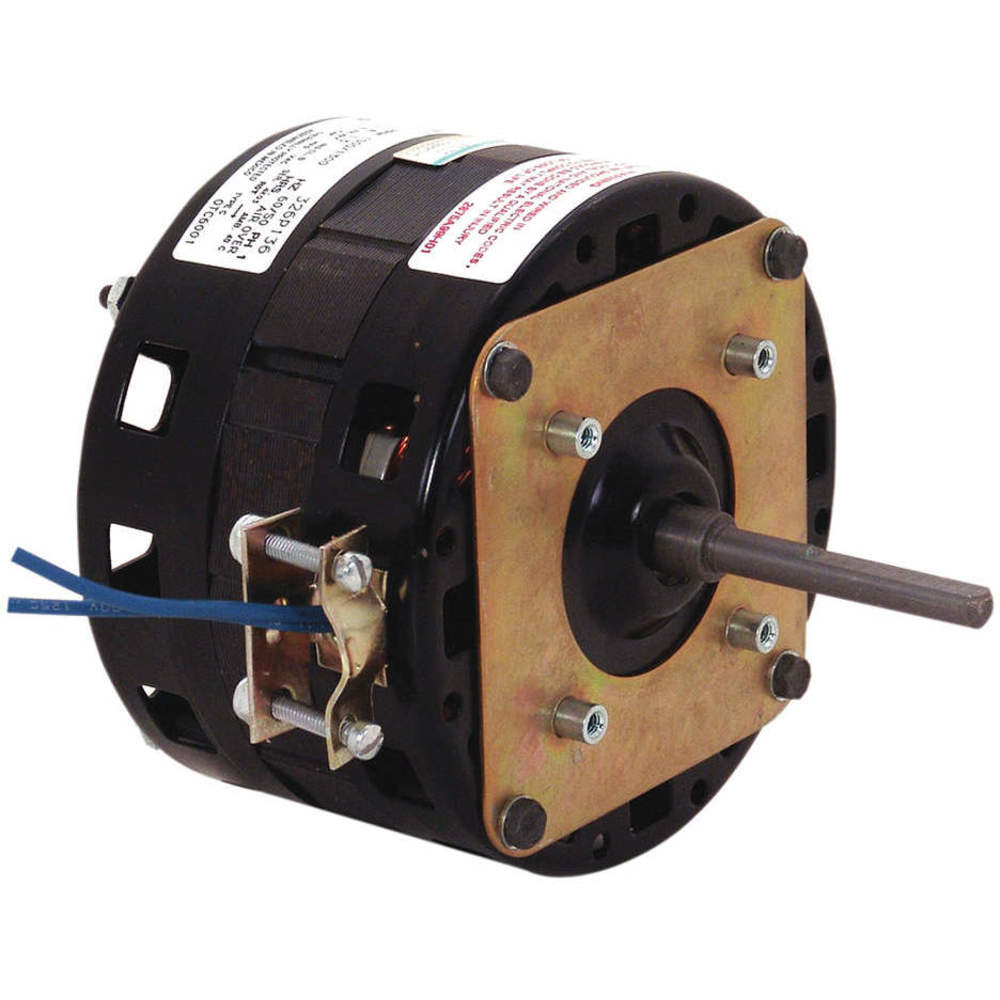

CENTURY OTC6001 Condenser Fan Motor 1/15 Hp 1500 Rpm
Get it by Monday, Dec 29
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€204.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Application | Tecumseh |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Capacitor Required | No |
| Conduit Box Position | F1 |
| Dia. | 5" |
| Diameter | 5" |
| Duty | Continuous |
| Enclosure Type | Open Air Over |
| Frame | 42Y |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.3A |
| Hp | 1/15 hp |
| Ins. Class | Class B |
| Lead Length | 31" |
| Length | 6 1/8" |
| Length Less Shaft | 4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Face |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Oem Replacement Brand | Tecumseh |
| Overall Length | 6 1/8" |
| Phase | Single |
| Replacement For | 326P136 |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 13/16" |
| Shaft Orientation | Horizontal |
| Shaft Type | Flat |
| Standards | Csa, Ul Recognized |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Quantity | 4 |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Weight | 8 lbs. |
Shipping Info:
| Ship weight (kg) | 8 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 14.76 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Voltage | Motor Enclosure Design | Motor Design | Motor Mounting Type | Motor Mounting Position | Max. Ambient Temp. | No. Of Speeds | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OTC6004 | 1/20 hp | 230V AC | Open Air Over | Shaded Pole | Face | Horizontal | 104°F | 1 | €207.89 |
