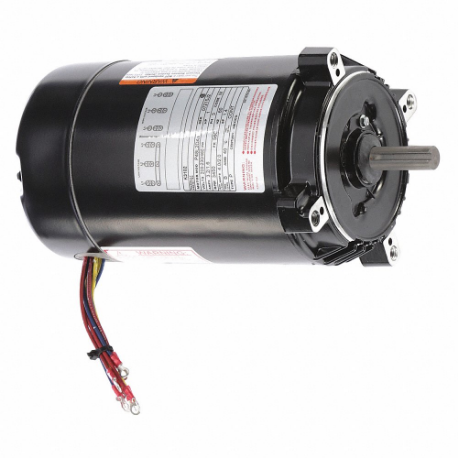

CENTURY K3102 Pool Filter Motor, Face Mounting, 1 Hp, 1.4 Motor Service Factor, 3, 450 Nameplate Rpm
Get it by Wednesday, Dec 24
10.00% off
€608.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 3.2/1.6A |
| Height | 5 5/8" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 10 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Pool Motor |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Overall Height | 5 5/8" |
| Overall Length | 11 3/4" |
| Phase | 3 |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1" |
| Shaft Material | Stainless Steel |
| Standards | CSA |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 20 lbs. |
Shipping Info:
| Ship weight (kg) | 20 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Full Load Amps | Service Factor | Shaft Length | Overall Length | Length Less Shaft | Body Dia. | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

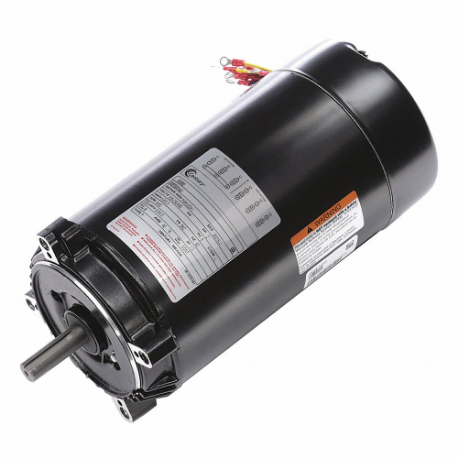

K3202 | 2 hp | 6.6/3.3A | 1.2 | 2 1/8" | 13 3/8" | 11 5/16" | 5 2/5" | 5 15/16" | €998.18 |
