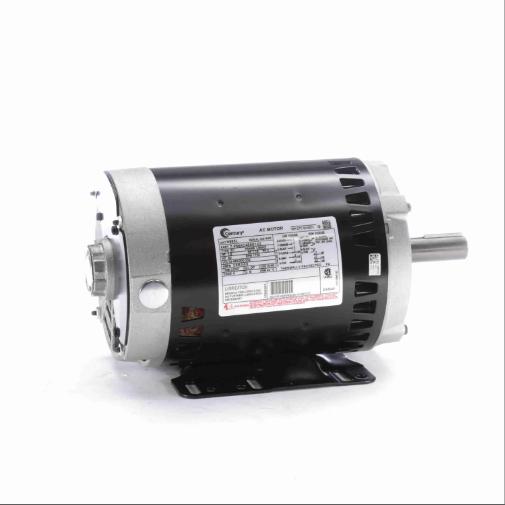

CENTURY H885L General Purpose Motor, 1.5 HP, 3 Phase, 60 Hz, 460/200-230V, 1800 RPM
Get it by Thursday, Dec 25
10.00% off
€957.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56HZ |
| Frame Material | Rolled Steel |
| Full Load Amps | 2.8/5-5.6A |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Nameplate Rpm | 1725 RPM |
| Nema Design | K |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Part Winding Start Capable | No |
| Phase | 3 |
| Removable Base | Permanently Lubricated Bearings |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 5/16" |
| Standards | Csa, Ul Listed |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
| Weight | 29 lbs. |
Shipping Info:
| Ship weight (kg) | 29 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 20.32 |
| HS code | 8501524000 |
| Country of Origin | MX |
