CENTURY H564 Condenser Fan Motor 1/2 Hp 1140 Rpm 60hz
Get it by Wednesday, Dec 24
10.00% off
€600.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Bearing Type | Double Sealed Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 13/16" |
| Dia. | 6 1/2" |
| Diameter | 6 1/2" |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Enclosure Type | Open Air Over |
| Features | Quick Connect Design, Reversible |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.8-2.6/1.3A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length | 16 5/16" |
| Length Less Shaft | 10 1/4" |
| Max. Ambient Temp. | 60°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Stud Length | 1 1/16" |
| Mounting Stud Size | #10-32 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Nominal Efficiency | 74% |
| Output Watts | 370 W |
| Overall Length | 16 5/16" |
| Phase | 3 |
| Power | 370 W |
| Power | 0.37 kW |
| Rpm | 1140 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 6 1/16" |
| Shaft Orientation | Up |
| Shaft Type | Keyed |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
| Weight | 27 lbs. |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 20.32 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Phase | Shaft Length | Motor Enclosure Design | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

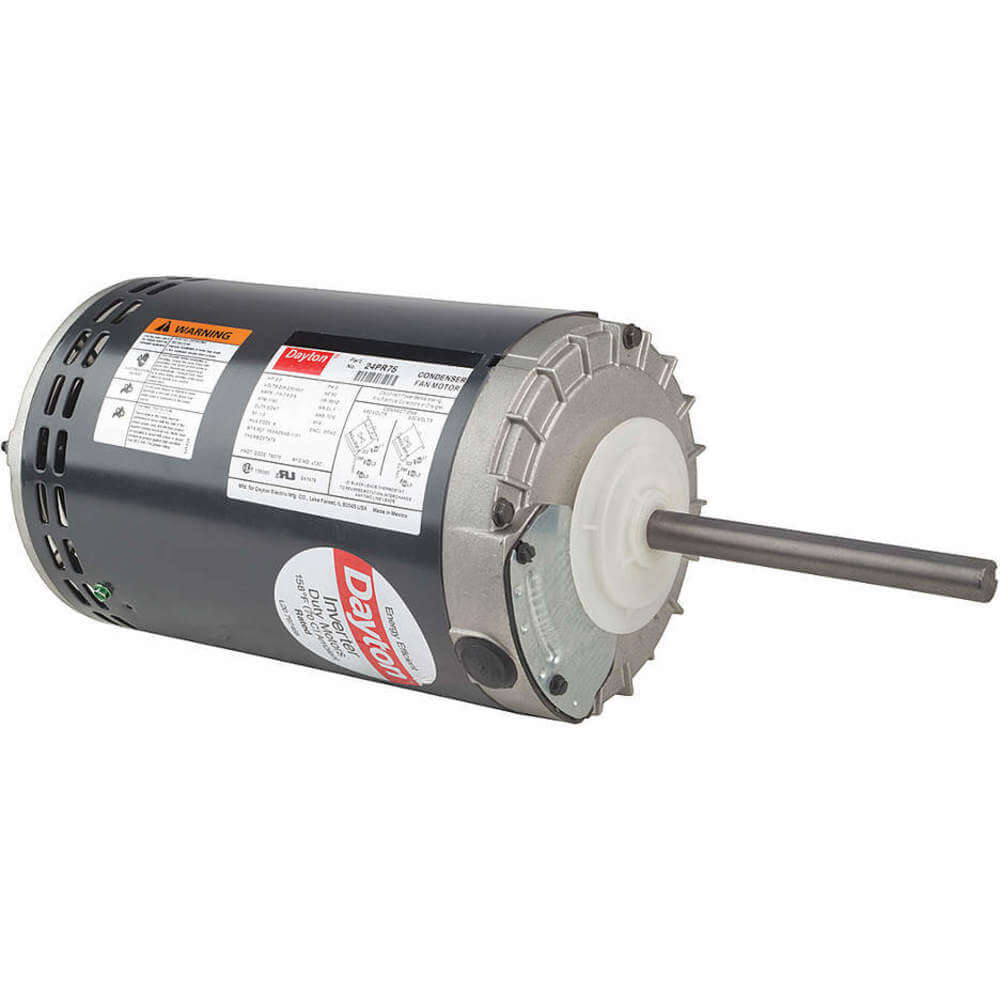

24PR70 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 3" | Open Air Over | 3-Phase | €1,106.24 | |
 |
24PR71 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €1,306.91 | |
|
24PR72 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €721.68 | |
|
24PR73 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | 3 | - | Open Air Over | 3-Phase | €1,244.59 | |
|
24PR74 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | - | 5 5/8" | Open Air Over | 3-Phase | €1,076.05 | |
|
24PR75 | 208-230/460V AC | 2 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €875.16 | |
 |
24PR76 | 230/460V AC | 1/2 hp | Vertical Shaft Up | 56YZ | 3 | 3 1/4" | Open Air Over | 3-Phase | €1,412.98 |
