CENTURY C039A Agricultural Fan Motor
Get it by Tuesday, Dec 23
10.00% off
€546.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan Motor |
| Bearings | Ball |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Extended Thru-bolts | Yes |
| Finish | Powder Coated |
| Frame | F48Z |
| Full Load Amps | 7.1/3.6A |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 7 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | Agitators, Auger, Compressors, Conveyors, Feeders, Hay Hoists |
| Motor Thermal Protection | Auto |
| Mounting Stud Length | 1 1/25" |
| Mounting Stud Pattern | 3 3/4" x 3 3/4" |
| Nameplate Rpm | 825 RPM |
| Nominal Efficiency | 64.5% |
| Number Of Speeds | 1 |
| Overall Length | 10 1/2" |
| Phase | Single |
| Shaft Dia. | 1/2" |
| Shaft Length | 3 1/8" |
| Stud Size | #8-32 |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| Weight | 21 lbs. |
Shipping Info:
| Ship weight (kg) | 21 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 17.78 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Hp | Motor Shaft Design | Nameplate Rpm | Frame | Motor Enclosure Design | Motor Mounting Type | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C319V1 | 230V AC | 2 hp | Keyed | 1725 RPM | 56HZ | Totally Enclosed Fan Cooled | Rigid Base | Single | €846.20 | |
 |
C313C | 115/230V AC | 1 hp | Keyed | 1725 RPM | L56 | Totally Enclosed Fan Cooled | Rigid Base | Single | €692.05 | |
 |
117883.00 | 115-230V | 1 hp | Keyed | 1800 RPM | 56YZ | Totally Enclosed Fan Cooled | Face | Single | €506.92 | |
 |

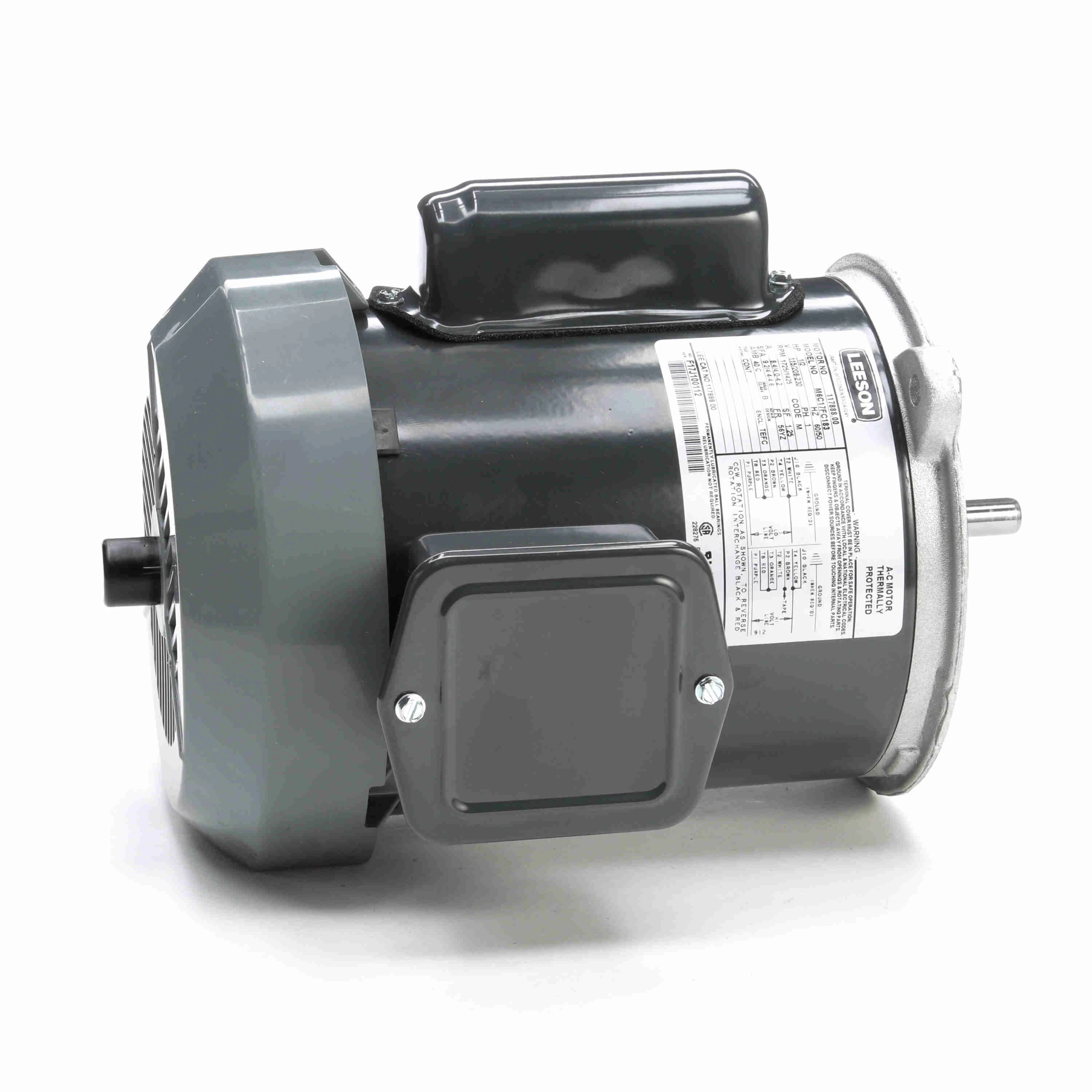

117888.00 | 115-230V | 1/2 hp | Flat | 1800 RPM | 56YZ | - | Face | Single | €375.24 | |
 |

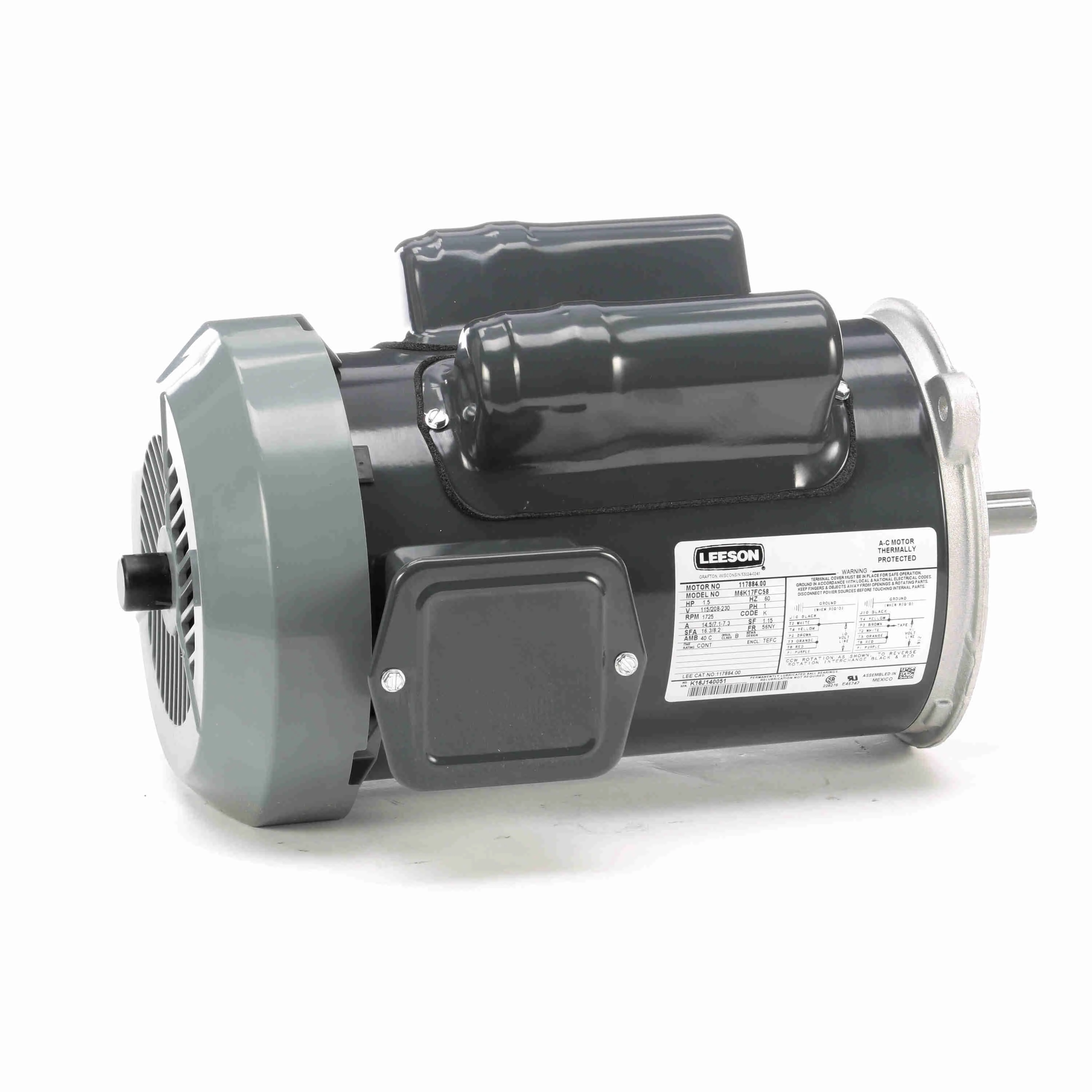

117884.00 | 115/208-230V | 1 1/2 hp | Keyed | 1800 RPM | 56YZ | Totally Enclosed Fan Cooled | - | - | €2,648.56 | |
 |

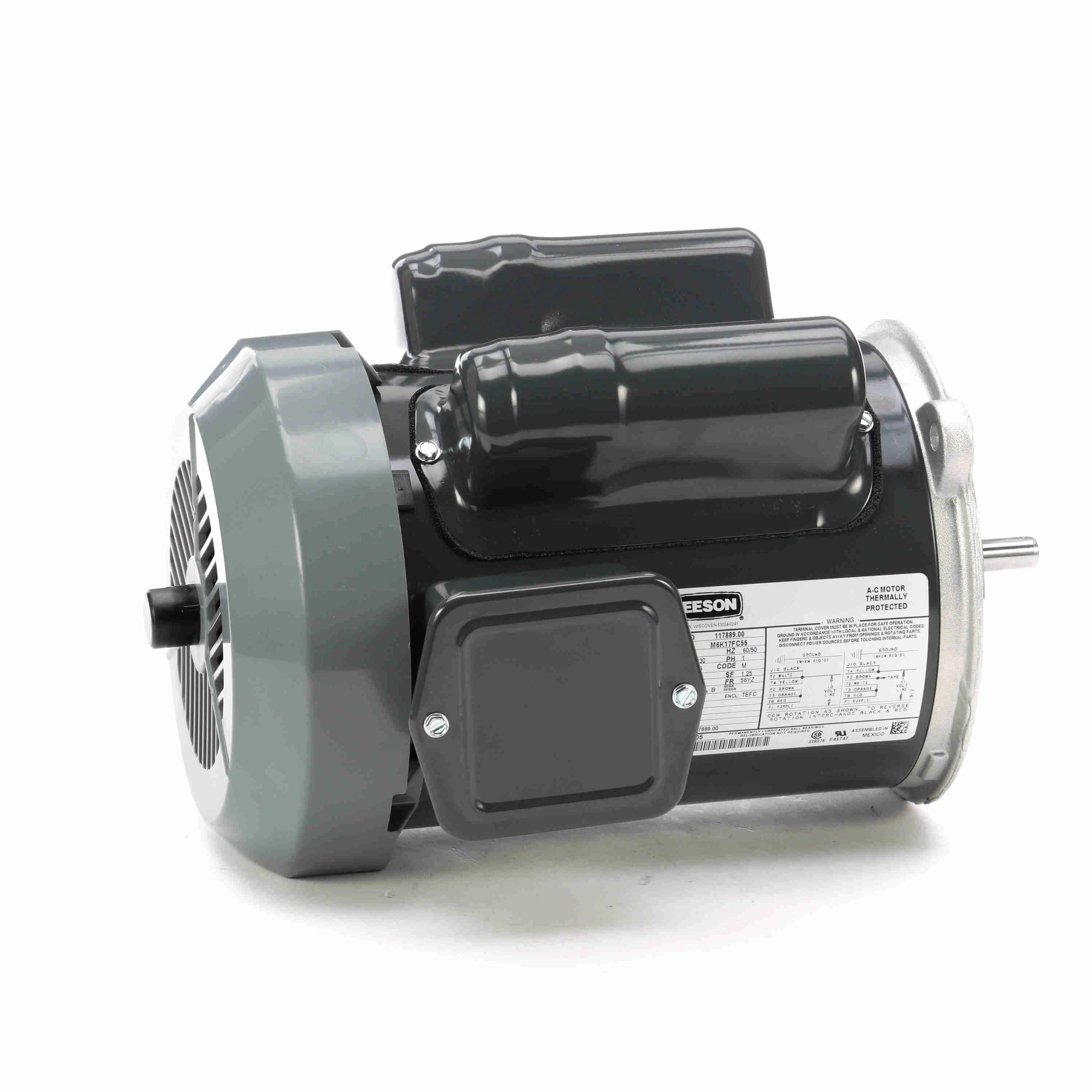

117889.00 | 115-230V | 3/4 hp | Flat | 1800 RPM | 56YZ | Totally Enclosed Fan Cooled | Face | Single | €1,302.04 | |
 |

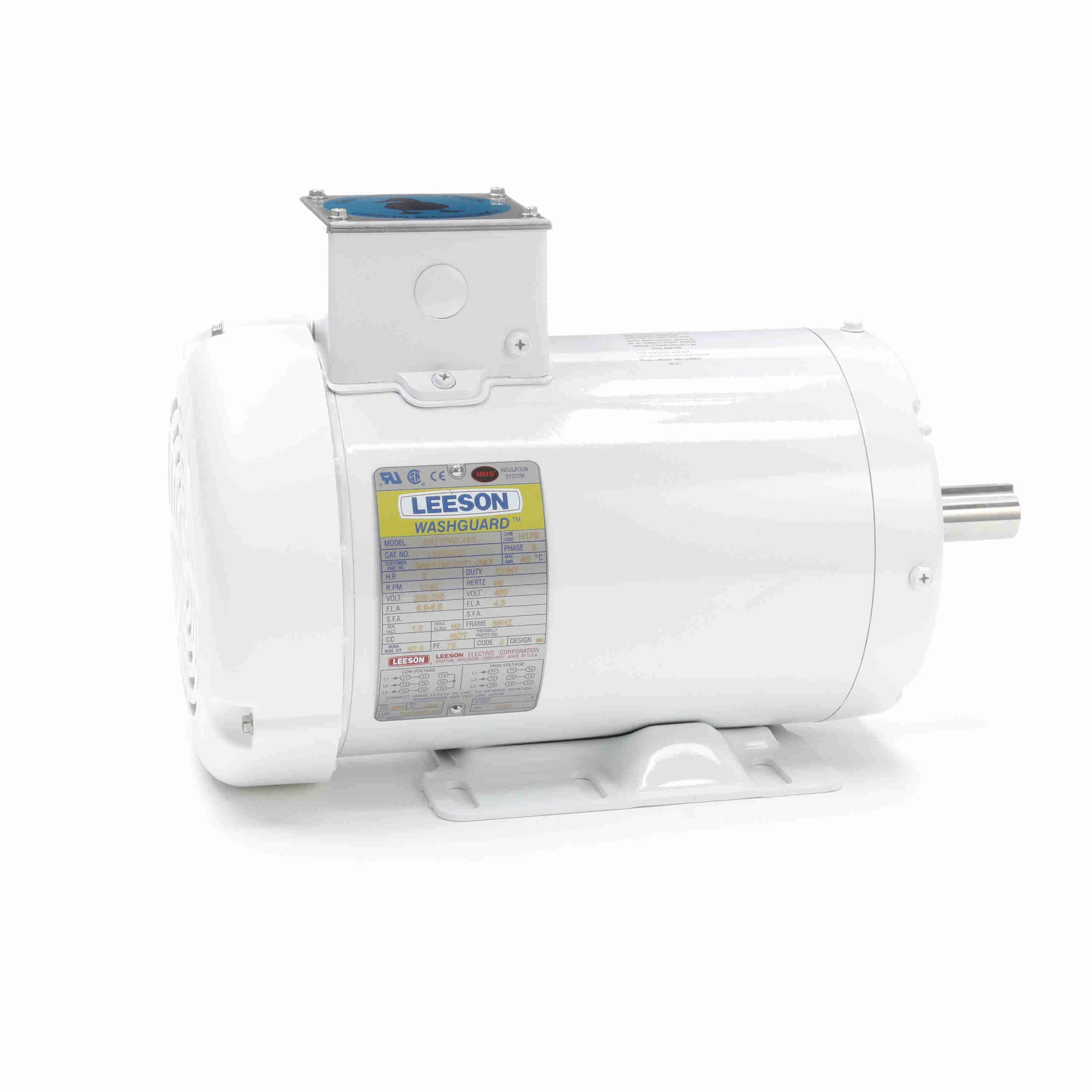

119783.00 | 208-230/460V | 3 hp | NEMA 56 | 1740 RPM | 56HZ | Totally Enclosed Air Over | Rigid Base | 3 | €906.06 |
