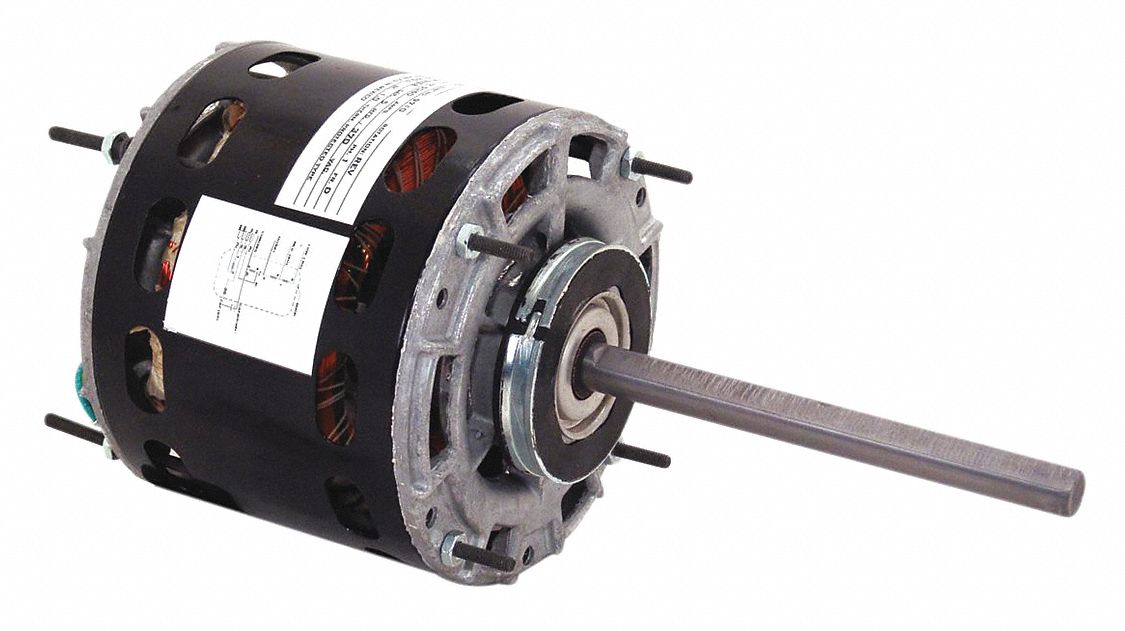

CENTURY 9716 Motor Psc 1/4 Hp 1625 Rpm 115v 42y Oao
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Bolt Circle Dia. | 4 5/8" |
| Capacitor Included | No |
| Capacitor Required | 2MDV6 |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4A |
| Hp | 1/4 hp |
| Includes | Resilient Mounting Ring |
| Insulation Class | Class B |
| Lead Length | 13" |
| Length Less Shaft | 6 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring |
| Motor Mounting Type | Cushion Ring |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Ring |
| Mounting Holes | 4 |
| Mounting Stud Location | Both Ends |
| Mounting Stud Pattern | 3 1/4" x 3 1/4" |
| Mounting Type | Cushion Ring |
| Nameplate Rpm | 1625 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 12 7/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 5 13/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5 13/16" |
| Shaft Type | Flat |
| Stud Location | Both Ends |
| Stud Pattern | 3 1/4" x 3 1/4" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 14 lbs. |
Shipping Info:
| Ship weight (kg) | 14 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 32.69 |
| Ship width (cm) | 17.3 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Type | Motor Mounting Type | Shaft Dia. | Shaft Length | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BL6410 | 115V AC | 1/8 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 5 1/2" | Counter Clockwise Lead End | €222.56 | |
 |
BL6416 | 115V AC | 1/5 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 2 11/16" | Counter Clockwise Lead End | €279.02 | |
 |
B6415 | 208-230V AC | 1/5 hp, 1/8 hp, 1/10 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 5 1/2" | Counter Clockwise Lead End | €274.49 | |
 |
B6507 | 230V AC | 1/5 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 5 1/2" | Clockwise/Counter Clockwise | €254.79 | |
 |
9644 | 115V AC | 1/8 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 6 1/2" | Clockwise/Counter Clockwise | €289.92 | |
 |
BL6505V1 | 115V AC | 1/5 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 5 1/2" | Clockwise/Counter Clockwise | - | RFQ
|
 |
BL6519V1 | 115V AC | 1/4 hp | 1075 RPM | Permanent Split Capacitor | Ring, Stud | 1/2" | 4 11/16" | Clockwise/Counter Clockwise | - | RFQ
|
