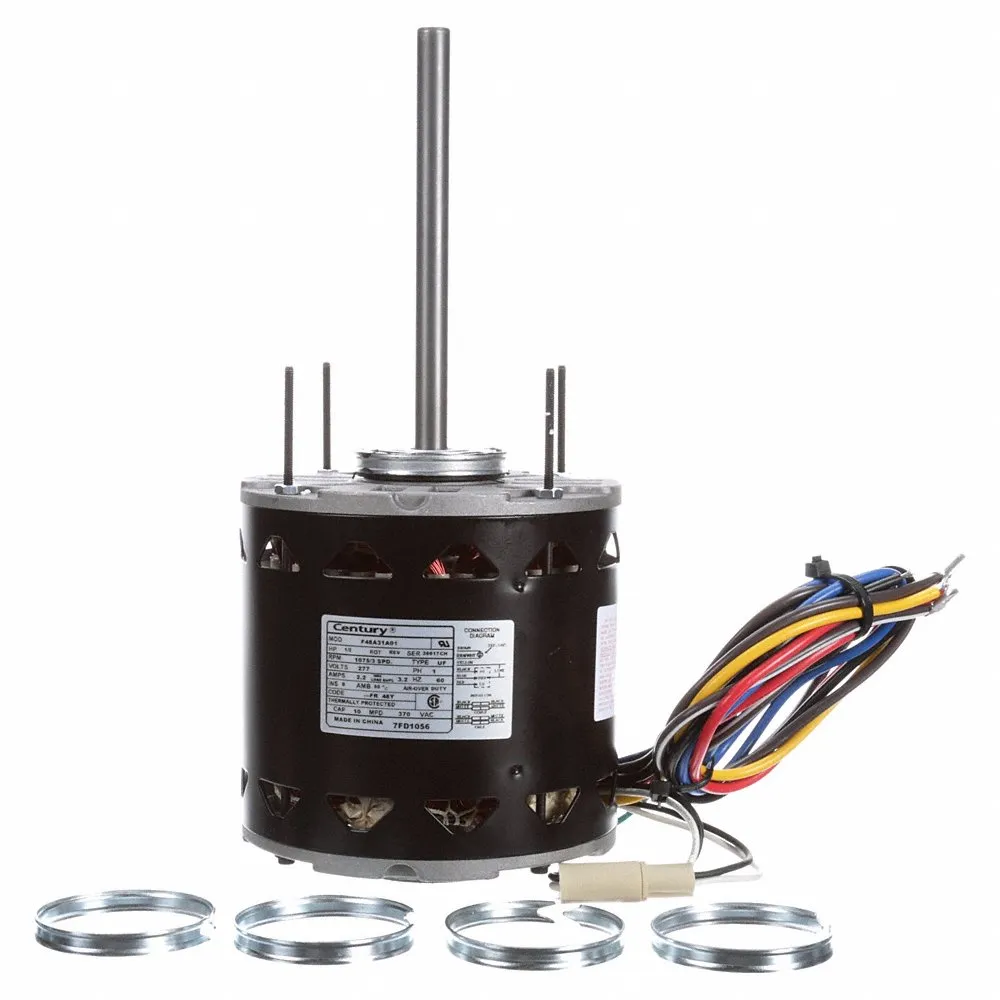

CENTURY 7FD1056 Frame, Electric Motor
Get it by Tuesday, Dec 23
10.00% off
€398.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Frame |
| Application | Fan and Blower |
| Body Dia. | 5.6" |
| Capacitor Required | Yes |
| Frame | 48Y |
| Full Load Amps | 2.2A |
| Hp | 1/2 hp |
| Ins. Class | Class B |
| Length Less Shaft | 6 3/8" |
| Max. Ambient Temp. | 122°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Enclosed |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Ring/Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | General Purpose |
| Motor Thermal Protection | Automatic |
| Nameplate Rpm | 1075 RPM |
| Number Of Shafts | 1 |
| Number Of Speeds | 3 |
| Overall Length | 12 5/16" |
| Phase | Single |
| Product Type | Fan And Blower Motor |
| Shaft Dia. | 1/2" |
| Shaft Length | 5 15/16" |
| Standards | Csa, Ul |
| Voltage | 277V AC |
| Weight | 18 lbs. |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 39.5 |
| Ship width (cm) | 16.38 |
| Country of Origin | IN |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
