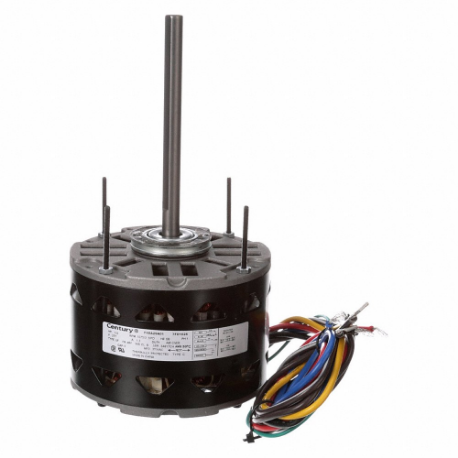

CENTURY 7FD1026 Direct Drive Blower Motor, 3 Speed, Open Enclosed, Resilient Ring/Extended Studs Mount
Get it by Wednesday, Dec 24
10.00% off
€353.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ambient Temp. | 50°C |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Capacitor Required | Yes |
| Duty Cycle | Air Over |
| Frame | 48Y |
| Frame Material | Rolled Steel |
| Full Load Amps | 1.3A |
| Hp | 1/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 3 15/16" |
| Max. Ambient Temp. | 50°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 3 |
| Overall Length | 10 13/16" |
| Phase | Single |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6 3/8" |
| Standards | Csa, Ul |
| Thermal Protection | Automatic |
| Voltage | 277V AC |
| Weight | 11 lbs. |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 35 |
| Ship width (cm) | 16.28 |
| Country of Origin | CN |
Product Variants
| Model | Motor Mounting Type | Shaft Length | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | No. Of Speeds | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KT61DZ060 | - | - | - | - | - | - | - | - | €283.74 | |
| HT32TC705 | - | - | - | - | - | - | - | - | €208.82 | |
| HT32BH943 | - | - | - | - | - | - | - | - | €152.15 | |
| LA22RB575 | - | - | - | - | - | - | - | - | €267.17 | |
| 17122000002587 | - | - | - | - | - | - | - | - | €127.92 | |
| 48HG500422 | - | - | - | - | - | - | - | - | €67.01 | |
| P291-0773 | - | - | - | - | - | - | - | - | €26.04 |
