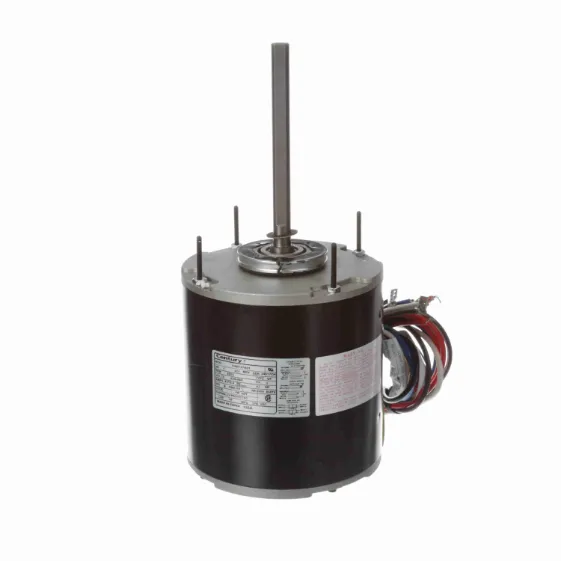

CENTURY 159A Motor, 1 Hp, 48 Frame Condenser
Get it by Monday, Aug 17
€653.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Body Dia. | 5.6" |
| Frame Size | 48Y |
| Frequency | 60 Hz |
| Full Load Current @ 60 Hz | 4.7/2.4A |
| Insulation Class | B |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Type | Open Air Over |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Mounting Type | Stud, Resilient Ring |
| Nameplate Horsepower | 1 hp |
| Nameplate Service Factor @ 60 Hz | 1" |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
| No. Of Speed | 1 |
| Phase | Single |
| Shaft Length | 6" |
| Speed | 1000 RPM to 1200 RPM , 1075 RPM |
| Usable @ 208 V | Not Usable at 208V, No |
Shipping Info:
| Ship weight (kg) | 14 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 39.5 |
| Ship width (cm) | 16.38 |
| Country of Origin | MX |
