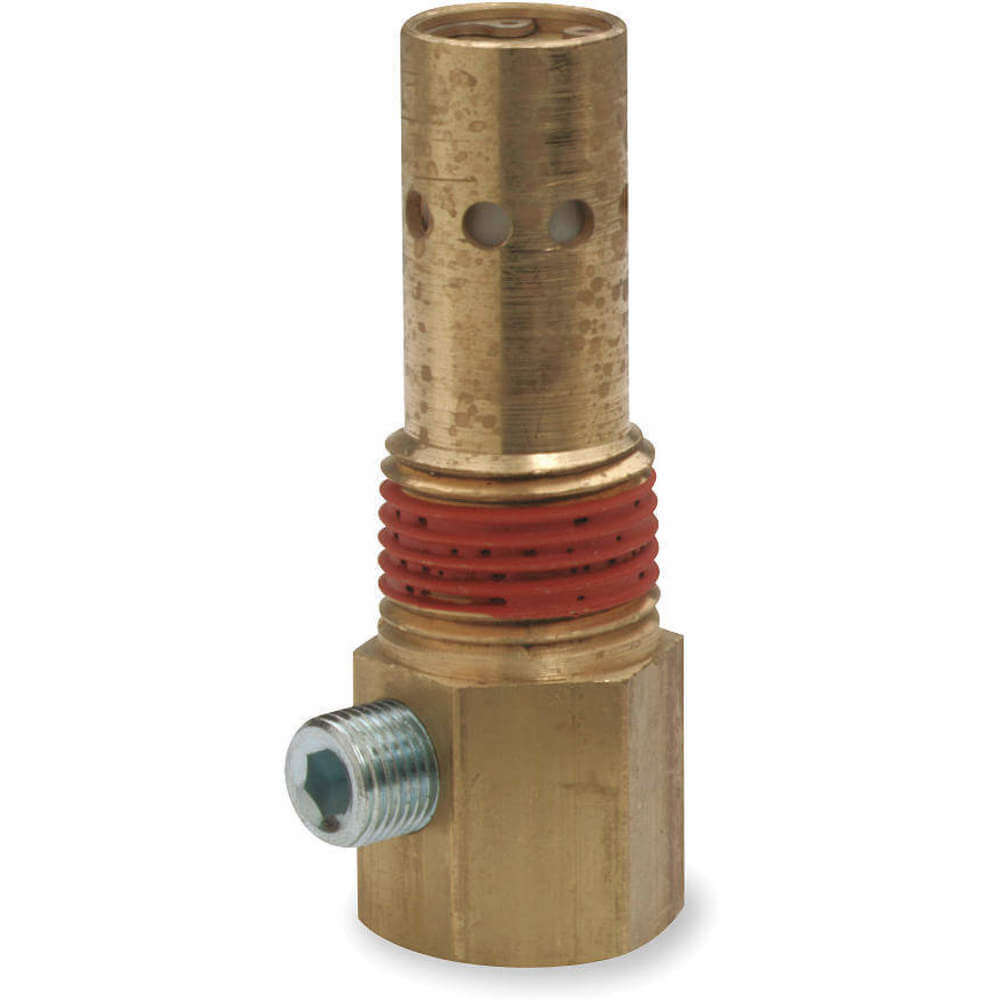

CDI CONTROL DEVICES P7575-1EP Valve Check 3/4x3/4in
Item: AF2PLRModel: P7575-1EPCross Ref: 6X209
7 In Stock
Ships within 2 days via
10.00% off
€29.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| Application | In-Tank Check Valve |
| Cracking Pressure (psi) | 0.1 psi |
| Flow Range Free Air (cfm) | 30 SCFM |
| Hex Size | 1.188" |
| Hex Size (in.) | 1 3/16" |
| Inlet | 3/4" FPT |
| Length | 3 1/4" |
| Material | Brass |
| Max. Pressure | 450 psi |
| Max. Pressure (psi) | 450 psi |
| Max. Temp. | 400°F |
| Mounting | Horizontal And Vertical |
| Outlet (in.) | 3/4" MPT |
| Poppet | Glass Filled PTFE |
| Spring Material | Stainless Steel |
| Tap Size | 1/8" |
| Thread Coating | Vibra Seal |
| Type | In Tank |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.3 |
| HS code | 8481301090 |
| Country of Origin | US |
Product Details:
- Flow Range Free Air (CFM) (0 to 30)
- Poppet (Flouropolymer)
- Thread Coating (516 Dry Tape Thread Sealant)
Product Variants
| Product | Model | Type | Mounting | Max. Temp. | Inlet | Max. Pressure | Inlet Type | Hex Size | Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CB10 | Air | Vertical Or Horizontal | 450°F | - | 250 psi | NPT | - | - | €160.62 | |
|
CB12 | Air | Vertical Or Horizontal | 450°F | 1 1/4" NPT | 250 psi | - | - | 1 1/4" | €203.90 | |
 |
IC25-AB | In Tank | Vertical Or Horizontal | 400°F | 1/4" FNPT | 400 psi | - | 0.812" | - | €26.40 | |
|
IC38-AB | In Tank | Vertical Or Horizontal | 400°F | 3/8" FPT | 400 psi | - | 0.812" | - | €38.94 | |
 |
IC50 | In Tank | Horizontal And Vertical | 400°F | 1/2" FPT | - | - | - | - | €40.83 | |
|
IC75 | In Tank | Horizontal And Vertical | 400°F | 3/4" FPT | - | - | - | - | €56.72 | |
|
CB25 | Air | Vertical Or Horizontal | 450°F | - | 250 psi | NPT | - | - | €37.33 |
