CDI CONTROL DEVICES CB25 Valve Check 1/4 In
Item: AE7DKZModel: CB25Cross Ref: 5X780
7 In Stock
Ships within 2 days via
10.00% off
€33.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| Application | Air Compressor |
| Cracking Pressure (psi) | 0.1 psi |
| Disc | Positive Seating Fluoropolymer, For Maximum Air Flow |
| Flow Range Free Air (cfm) | 12 SCFM |
| Hex Size (in.) | 7/8" |
| Inlet (in.) | 1/4" |
| Inlet Type | NPT |
| Length (in.) | 1 3/4" |
| Material | Brass |
| Max. Pressure | 250 psi |
| Max. Pressure (psi) | 250 psi |
| Max. Temp. | 450°F |
| Mounting | Vertical Or Horizontal |
| Mounting Position | Horizontal/Vertical |
| Outlet (in.) | 1/4" FNPT |
| Poppet | Glass Filled PTFE |
| Spring Material | Stainless Steel |
| Tap Size | 1/8" |
| Type | Air |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| HS code | 8481301090 |
| Country of Origin | US |
Product Details:
- Disc (Positive Seating Flouropolymer, For Maximum Air Flow)
- Flow Range Free Air (CFM) (0 to 12)
Product Variants
| Product | Model | Type | Mounting | Max. Temp. | Inlet | Max. Pressure | Inlet Type | Hex Size | Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB10 | Air | Vertical Or Horizontal | 450°F | - | 250 psi | NPT | - | - | €160.62 | |
|
CB12 | Air | Vertical Or Horizontal | 450°F | 1 1/4" NPT | 250 psi | - | - | 1 1/4" | €203.90 | |
 |

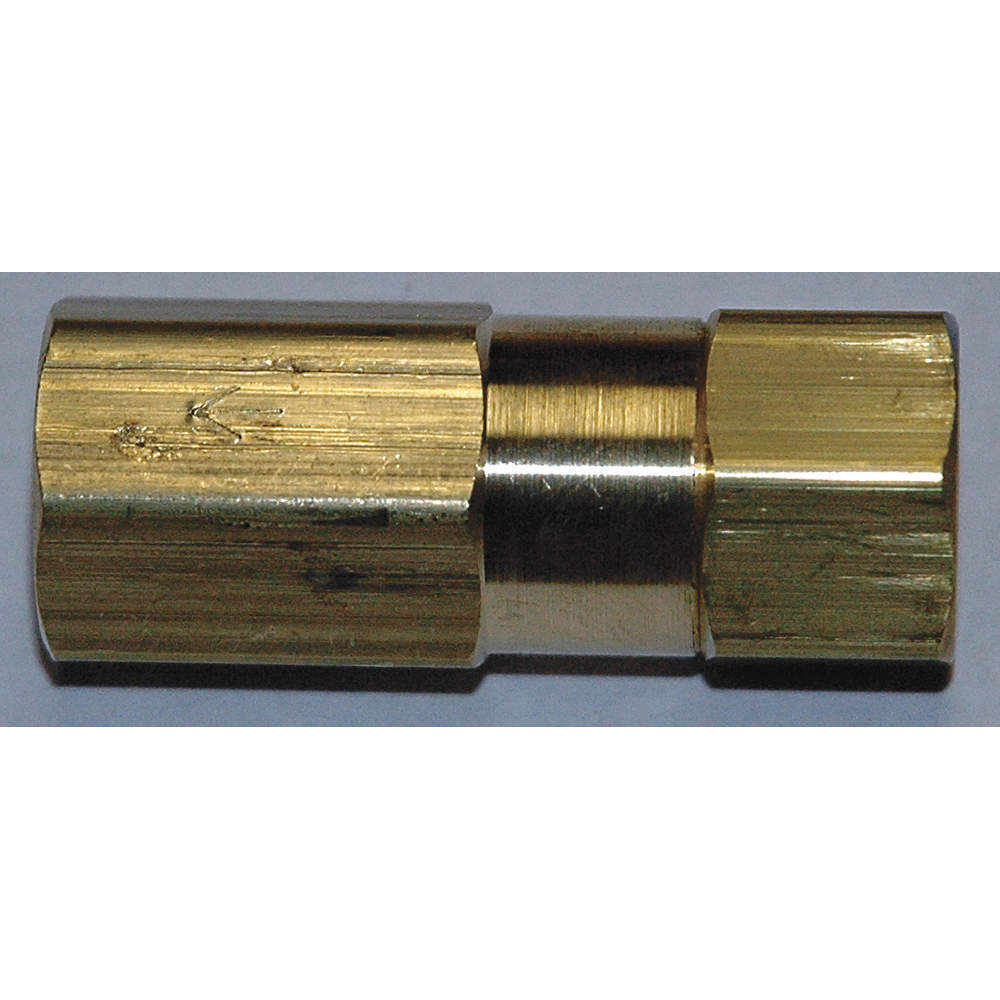

IC25-AB | In Tank | Vertical Or Horizontal | 400°F | 1/4" FNPT | 400 psi | - | 0.812" | - | €26.40 | |
|
IC38-AB | In Tank | Vertical Or Horizontal | 400°F | 3/8" FPT | 400 psi | - | 0.812" | - | €38.94 | |
 |

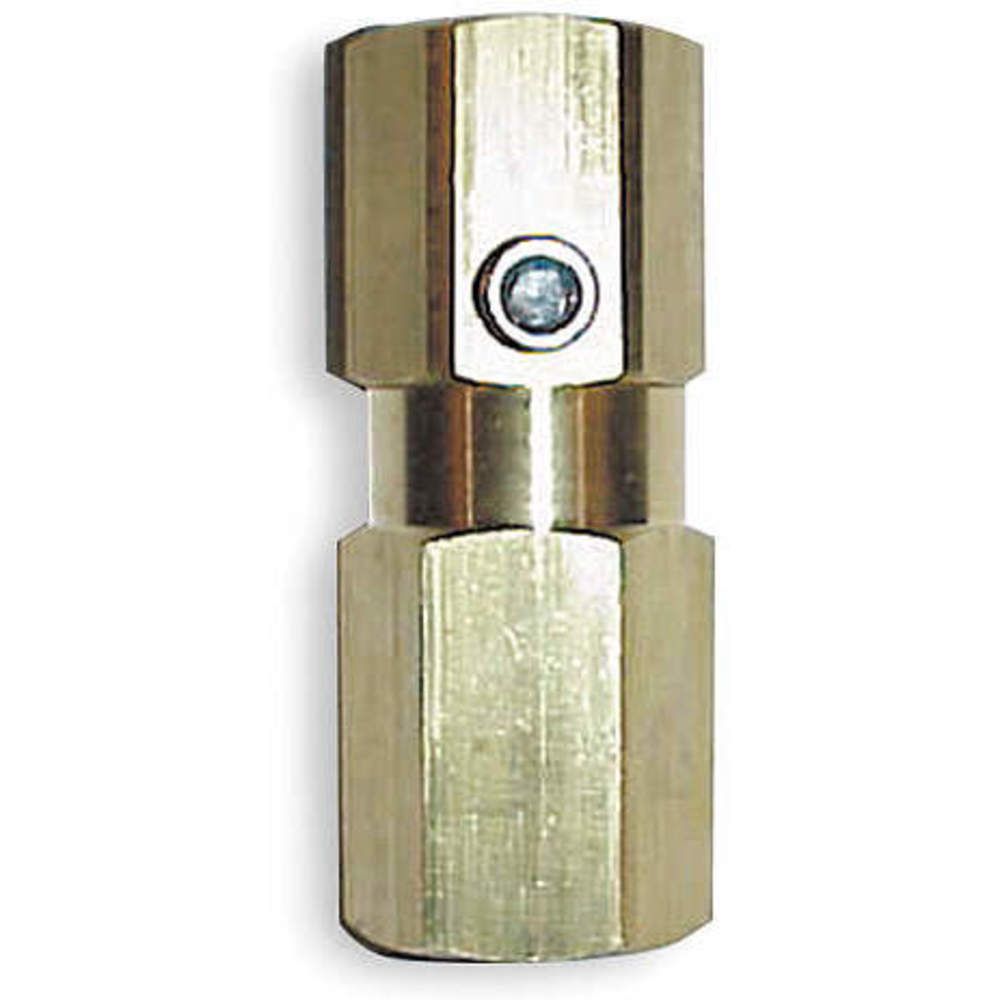

IC50 | In Tank | Horizontal And Vertical | 400°F | 1/2" FPT | - | - | - | - | €40.83 | |
|
IC75 | In Tank | Horizontal And Vertical | 400°F | 3/4" FPT | - | - | - | - | €56.72 | |
|
CB33 | Air | Vertical Or Horizontal | 450°F | 3/8" FNPT | 250 psi | - | - | - | €45.31 |
