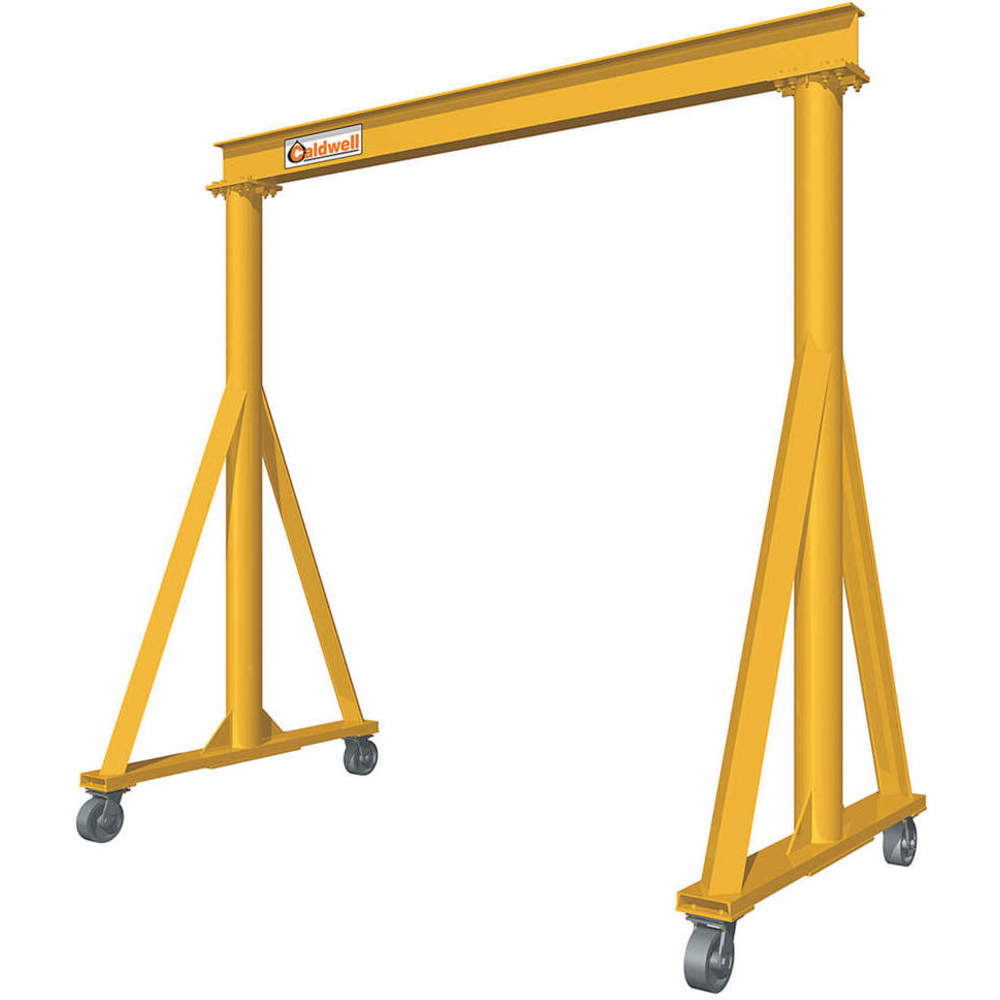

CALDWELL H90-2-16/24 Portable Gantry Crane 4000lb Max Height 16 Feet
Get it by Monday, Dec 22
10.00% off
€19,325.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Beam Flange Width | 5.5" |
| Beam Height | 15" |
| Body Finish | Enamel |
| Caster Material | Steel |
| Caster Type | (4) Swivel |
| Color | Yellow |
| Finish | Paint |
| Height Adjustment | Fixed Height |
| Height Under Beam | 16 ft. |
| I Beam Flange Width | 5 1/2" |
| I Beam Height | 15" |
| Included Components | Hardware |
| Leg Connection Type | Bolt On |
| Load Capacity | 4000 lbs. |
| Material | Steel |
| Max. I Beam Height | 16 ft. |
| Max. Overall Height | 17.3 ft. |
| Maximum Height Under Beam | 16 ft. |
| Min. I Beam Height | 16 ft. |
| Minimum Height Under Beam | 16 ft. |
| Minimum Usable Span | 22.6 ft. |
| Mobility Under Load | Mobile |
| Overall Depth | 90" |
| Overall Height | 17.3 ft. |
| Overall Span | 25.6 ft. |
| Product Datasheet | caldwell-h90-2-16-24.pdf |
| Rotating Legs | No |
| Span Adjustability | Fixed Span |
| Standards | Aisc, Cmaa, Osha |
| Support Width | 7.5 ft. |
| Tonnage - Load Capacity | 2 ton. |
| Type | Fixed Height, Heavy Duty, Steel |
| Usable I Beam Span Max. | 270" |
| Usable Span | 22.7 ft. |
| Wheel Dia. | 8" |
| Wheel Material | Steel |
Shipping Info:
| Ship weight (kg) | 817.65 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 228.6 |
| HS code | 8426190000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Span Adjustability | Height Under Beam | Overall Span | Usable Span | Beam Flange Width | Beam Height | Leg Connection Type | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H90-1-10/10 | Adjustable Span | 10 ft. to 10 ft. | 11.5 ft. | 10.3 ft. | 3.3" | 6" | Clamp On | 2000 lbs. | €6,226.30 | |
| H90-1-10/12 | Adjustable Span | 10 ft. to 10 ft. | 13.5 ft. | 12.3 ft. | 4" | 8" | Clamp On | 2000 lbs. | €6,426.07 | |
| H90-1-10/14 | Adjustable Span | 10 ft. to 10 ft. | 15.5 ft. | 14.3 ft. | 4" | 8" | Clamp On | 2000 lbs. | €6,517.39 | |
| H90-1-10/16 | Adjustable Span | 10 ft. to 10 ft. | 17.5 ft. | 16.3 ft. | 4.7" | 10" | Clamp On | 2000 lbs. | €8,067.57 | |
| H90-1-10/20 | Fixed Span | 10 ft. to 10 ft. | 21.6 ft. | 18.5 ft. | 4.7" | 10" | Bolt On | 2000 lbs. | €8,605.02 | |
| H90-1-10/24 | Fixed Span | 10 ft. to 10 ft. | 25.6 ft. | 22.7 ft. | 5.3" | 12" | Bolt On | 2000 lbs. | €7,538.63 | |
| H90-1-12/10 | Adjustable Span | 12 ft. | 11.5 ft. | 10.3 ft. | 3.3" | 6" | Clamp On | 2000 lbs. | €7,809.67 |
