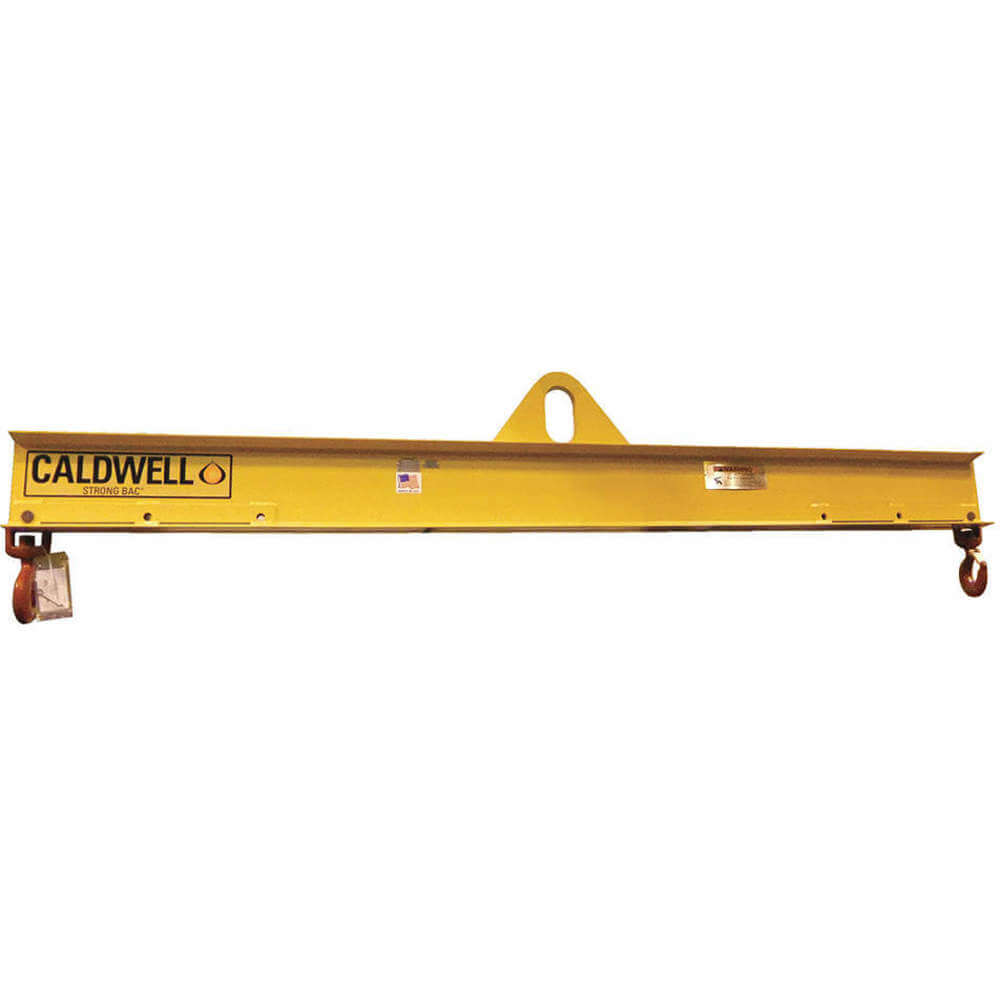

CALDWELL 20-2-3 Adjustable Lifting Beam 4000 lb. 36 Inch
Get it by Tuesday, Aug 18
13.00% off
€1,130.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adjustable Lifting Beam |
| Bail Adjustability | Fixed |
| Bail Height | 7/8" |
| Bail Inside Length | 5" |
| Bail Inside Width | 3" |
| Bail Thickness | 3/4" |
| Beam Type | Lifting Beam |
| Color | Yellow |
| Hardware Included | Swivel Hooks With Latches |
| Head Room | 13 3/4" |
| Hook Opening | 7/8" |
| Hook Opening Width | 7/8" |
| Material | Steel |
| Max. Headroom | 14" |
| Max. Material Length | 36" |
| Max. Spread | 36" |
| Min. Headroom | 13 3/4" |
| Min. Material Length | 24" |
| Min. Spread | 24" |
| Overall Length | 36" |
| Spread | 24" to 36" |
| Spread Adjustability | Adjustable |
| Spread Adjustment Increments | 6" |
| Usable Upper Bail Length | 5" |
| Usable Upper Bail Width | 3" |
| Working Load Limit | 4000 lbs. |
Shipping Info:
| Ship weight (kg) | 22.03 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 104.9 |
| Ship width (cm) | 29.21 |
| Country of Origin | US |
Product Variants
| Model | Bail Thickness | Bail Height | Max. Spread | Min. Spread | Working Load Limit | Bail Inside Length | Bail Inside Width | Max. Material Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 20-1/2-3 | 3/4" | 7/8" | 36" | 24" | 1000 lbs. | 5" | 3" | 36" | €1,389.48 | |
| 20-1-3 | 3/4" | 7/8" | 36" | 24" | 2000 lbs. | 5" | 3" | 36" | €1,260.75 | |
| 20-3-3 | 1" | 1 1/4" | 36" | 24" | 6000 lbs. | 5" | 3" | 36" | €1,373.83 | |
| 20-1/2-4 | 3/4" | 7/8" | 48" | 36" | 1000 lbs. | 5" | 3" | 48" | €1,355.63 | |
| 20-1-4 | 3/4" | 7/8" | 48" | 36" | 2000 lbs. | 5" | 3" | 48" | €1,358.10 | |
| 20-2-4 | 3/4" | 7/8" | 48" | 36" | 4000 lbs. | 5" | 3" | 48" | €1,545.14 | |
| 20-3-4 | 1" | 1 1/4" | 48" | 36" | 6000 lbs. | 5" | 3" | 48" | €1,692.61 |
